328999 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

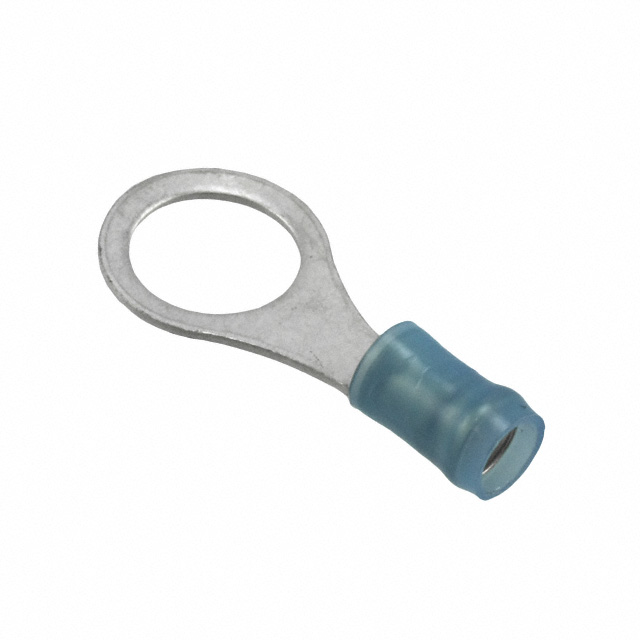

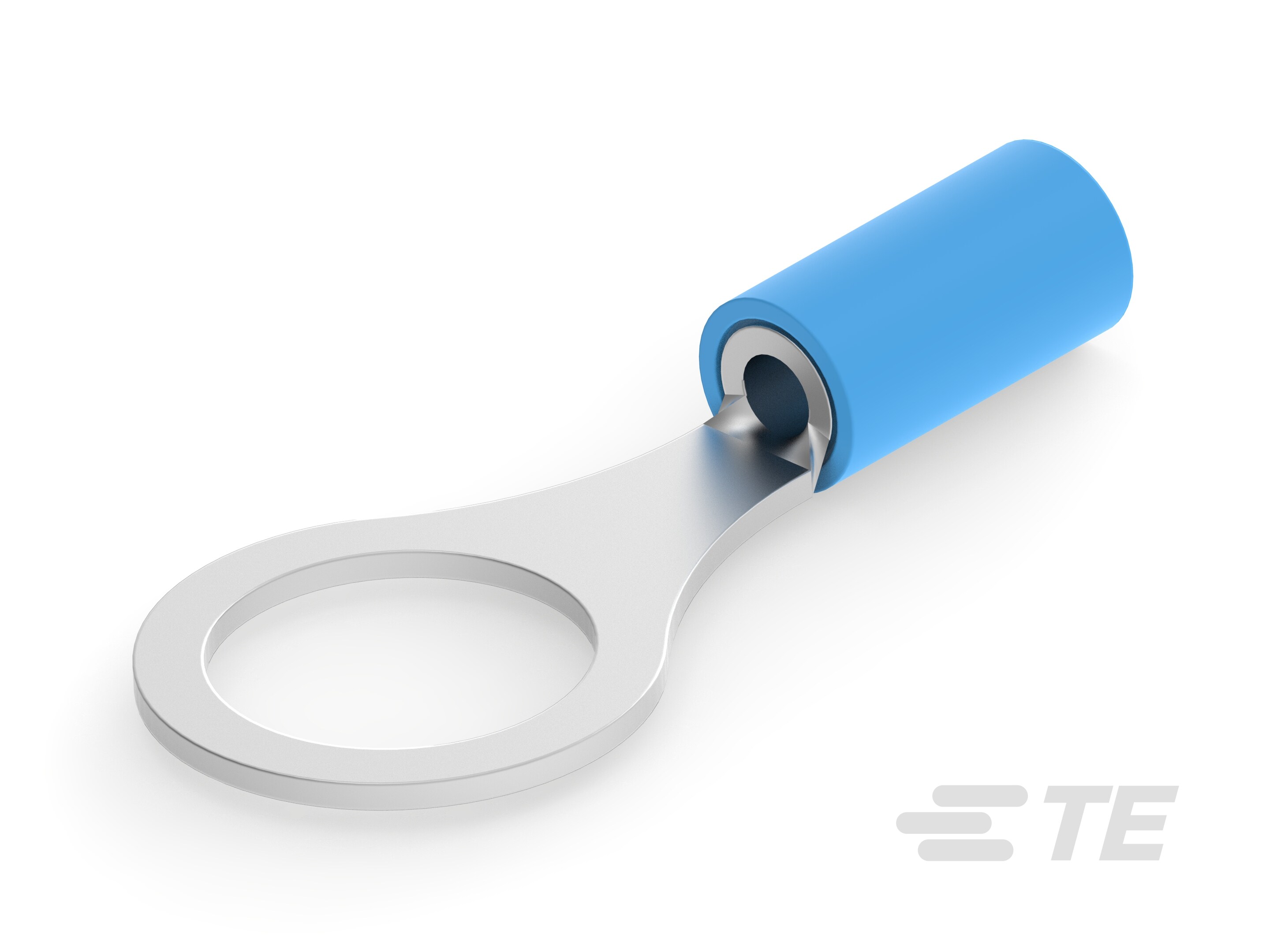

PIDG 16-14 R 3/8; TAPE
| Part | Features | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Material - Insulation | Termination | Thickness | Thickness | Mounting Type | Insulation | Stud/Tab Size | Length - Overall [x] | Length - Overall [x] | Terminal Type | Contact Material | Width - Outer Edges [y] | Width - Outer Edges [y] | Color | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Serrated Termination | 0.115 in 2.92 mm | 0.17 " 4.32 mm | Nylon Polyamide (PA) | Crimp | 0.031 in | 0.79 mm | Free Hanging (In-Line) | Insulated | 3/8 Stud | 1.218 in | 30.94 mm | Circular | Copper | 0.25 " | 6.35 mm | Blue | Tin |
 TE Connectivity Raychem Cable Protection | Serrated Termination | 0.115 in 2.92 mm | 0.17 " 4.32 mm | Nylon Polyamide (PA) | Crimp | 0.031 in | 0.79 mm | Free Hanging (In-Line) | Insulated | 3/8 Stud | 1.218 in | 30.94 mm | Circular | Copper | 0.25 " | 6.35 mm | Blue | Tin |
