TRG1512 Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

AC/DC WALL MOUNT ADAPTER 12V 12W

Part	Polarization	Voltage - Output	Power (Watts)	Input Connector	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Region Utilized	Efficiency	Standard Number	No Load Power Consumption	Operating Temperature [Min]	Operating Temperature [Max]	Form	Cord Length	Cord Length	Current - Output (Max) [Max]	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Input Type	Applications

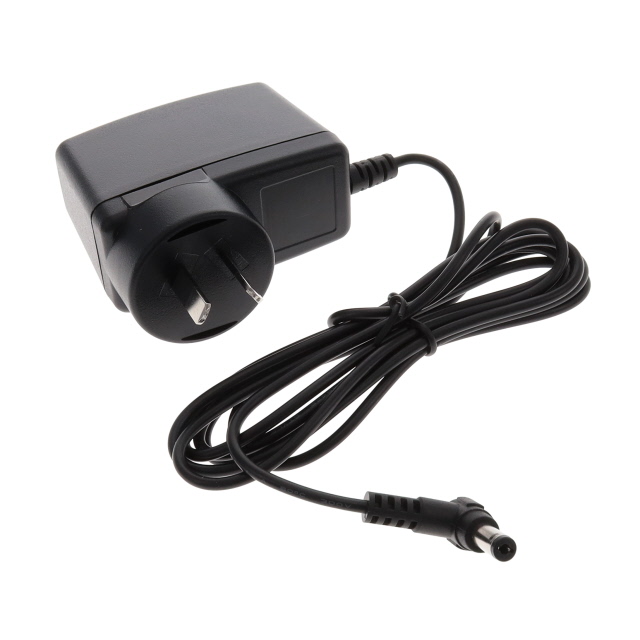

Cincon Electronics Co. LTD TRG1512-S-01E03 VI	Positive Center	12 V	12 W	AS 3112	52 mm	35 mm	2.84 "	1.38 in	72 mm	2.05 in	Australia	CoC Tier 2 Level VI	60950-1	75 mW	-20 ░C	60 °C	Wall Mount	70.9 "	1.8 m	1 A	CE cULus FCC GS PSE TUV	264 VAC	90 VAC	Fixed Blade	ITE (Commercial)

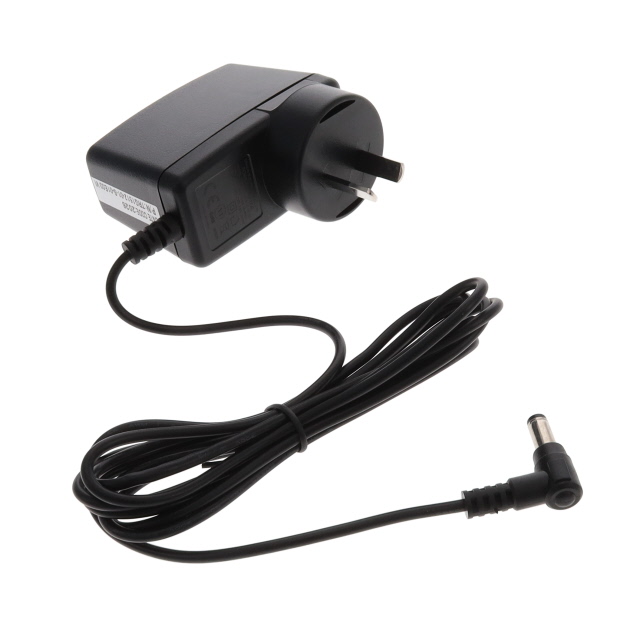

Cincon Electronics Co. LTD TRG1512-01-S-01E03 VI	Positive Center	13.6 V	14 W	AS 3112	52 mm	35 mm	2.84 "	1.38 in	72 mm	2.05 in	Australia	CoC Tier 2 Level VI	60950-1	75 mW	-20 ░C	60 °C	Wall Mount	70.9 "	1.8 m	1 A	CE cULus FCC GS PSE TUV	264 VAC	90 VAC	Fixed Blade	ITE (Commercial)

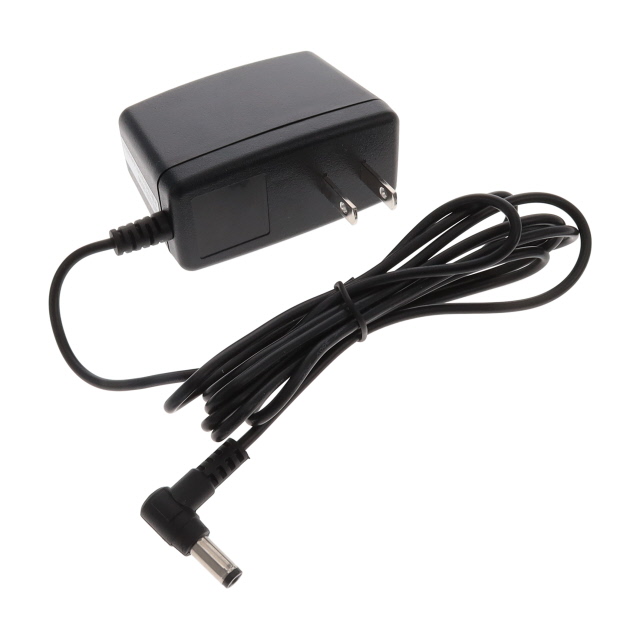

Cincon Electronics Co. LTD TRG1512-01-A-01E03 VI	Positive Center	13.6 V	14 W	NEMA 1-15P	52 mm	35 mm	2.84 "	1.38 in	72 mm	2.05 in	North America	CoC Tier 2 Level VI	60950-1	75 mW	-20 ░C	60 °C	Wall Mount	70.9 "	1.8 m	1 A	CE cULus FCC GS PSE TUV	264 VAC	90 VAC	Fixed Blade	ITE (Commercial)

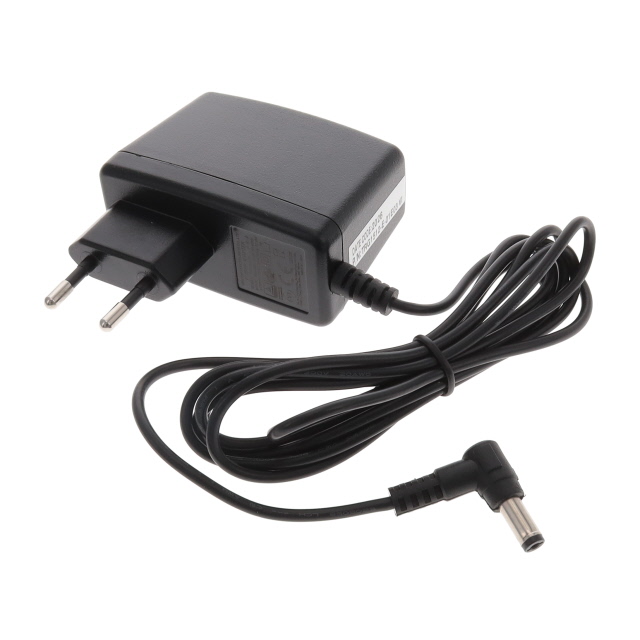

Cincon Electronics Co. LTD TRG1512-E-01E03 VI	Positive Center	12 V	12 W	KSC 8305	52 mm	35 mm	2.84 "	1.38 in	72 mm	2.05 in	Europe	CoC Tier 2 Level VI	60950-1	75 mW	-20 ░C	60 °C	Wall Mount	70.9 "	1.8 m	1 A	CE cULus FCC GS PSE TUV	264 VAC	90 VAC	Fixed Blade	ITE (Commercial)

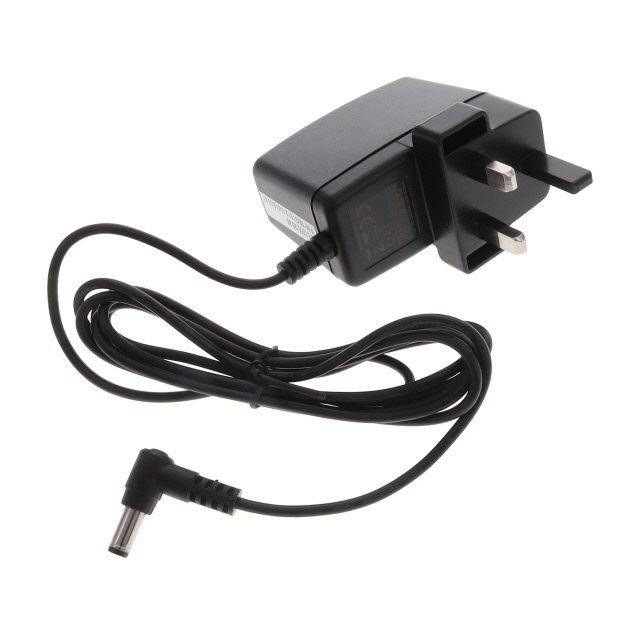

Cincon Electronics Co. LTD TRG1512-U-01E03 VI	Positive Center	12 V	12 W	BS 1363	52 mm	35 mm	2.84 "	1.38 in	72 mm	2.05 in	United Kingdom	CoC Tier 2 Level VI	60950-1	75 mW	-20 ░C	60 °C	Wall Mount (Class I)	70.9 "	1.8 m	1 A	CE cULus FCC GS PSE TUV	264 VAC	90 VAC	Fixed Blade	ITE (Commercial)

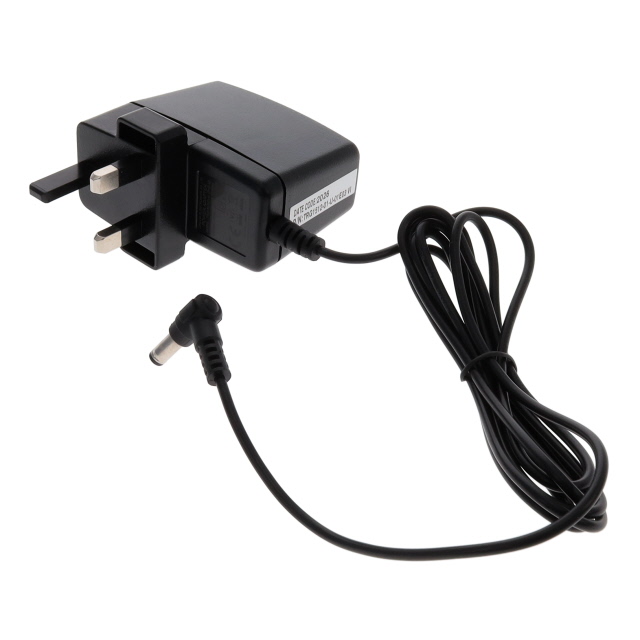

Cincon Electronics Co. LTD TRG1512-01-U-01E03 VI	Positive Center	13.6 V	14 W	BS 1363	52 mm	35 mm	2.84 "	1.38 in	72 mm	2.05 in	United Kingdom	CoC Tier 2 Level VI	60950-1	75 mW	-20 ░C	60 °C	Wall Mount (Class I)	70.9 "	1.8 m	1 A	CE cULus FCC GS PSE TUV	264 VAC	90 VAC	Fixed Blade	ITE (Commercial)

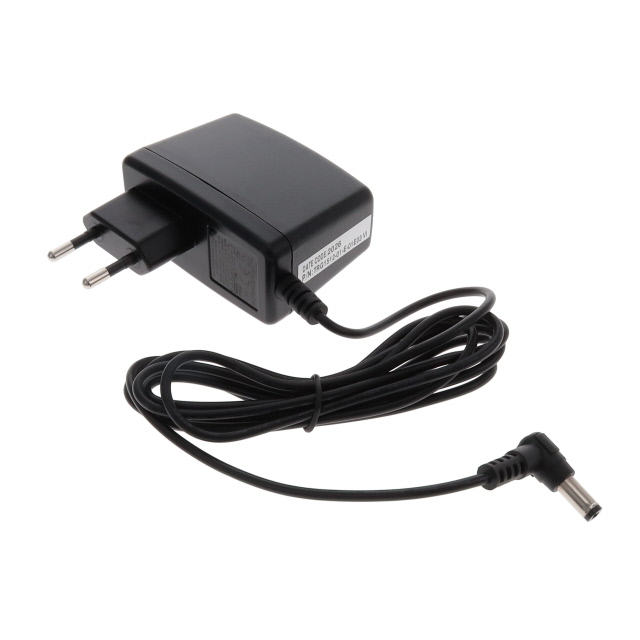

Cincon Electronics Co. LTD TRG1512-01-E-01E03 VI	Positive Center	13.6 V	14 W	KSC 8305	52 mm	35 mm	2.84 "	1.38 in	72 mm	2.05 in	Europe	CoC Tier 2 Level VI	60950-1	75 mW	-20 ░C	60 °C	Wall Mount	70.9 "	1.8 m	1 A	CE cULus FCC GS PSE TUV	264 VAC	90 VAC	Fixed Blade	ITE (Commercial)
