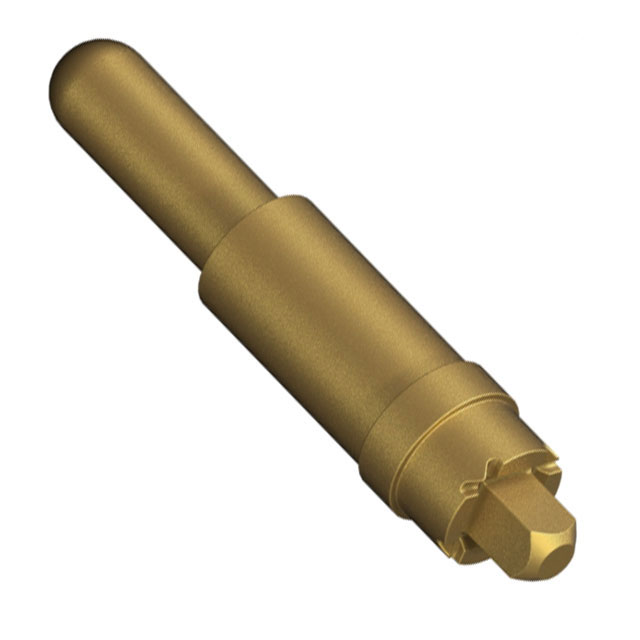

6835-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN SINGLE POST 0.080DIA GOLD
| Part | Length - Overall [x] | Length - Overall [x] | Mounting Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Terminal Style | Terminal Type | Length - Below Flange [x] | Length - Below Flange [x] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Length - Above Flange [x] | Length - Above Flange [x] | Contact Material | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Insulation | Pin Size - Above Flange | Pin Size - Above Flange [diameter] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.587 in | 14.91 mm | Through Hole | Gold | 0.25 Ám | 10 Áin | Flanged | Single Post | 1.6 mm | 0.063 " | 0.092 " | 2.34 mm | 0.123 in | 3.12 mm | 5.72 mm | 0.225 in | Brass Alloy | 0.09 in | 2.29 mm | Non-Insulated | 2.03 mm | 0.08 in | Press-Fit |
