KWCSLPM Series

Catalog

LED OSLON WARM WHT 3000K CSMD

Part	Thermal Resistance of Package	Supplier Device Package	Current - Max [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lumens/Watt @ Current - Test	Viewing Angle	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test [Max]	Voltage - Forward (Vf) (Typ)	Color	CRI (Color Rendering Index)	CCT (K)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Package / Case	Package / Case	Height - Seated (Max)	Flux @ 25°C, Current - Test
ams-OSRAM USA INC. KW CSLPM2.CC-8L8M-4R9T-0-700-S	3 °C/W	CSMD	1.8 A	0.035 in	0.9 mm	110 lm/W	120 °	159 lm	280 lm	2.85 V	Warm White	90	3000 K	3 mm	0.118 in	3 mm	0.118 "	Surface Mount	3030 Metric	1212

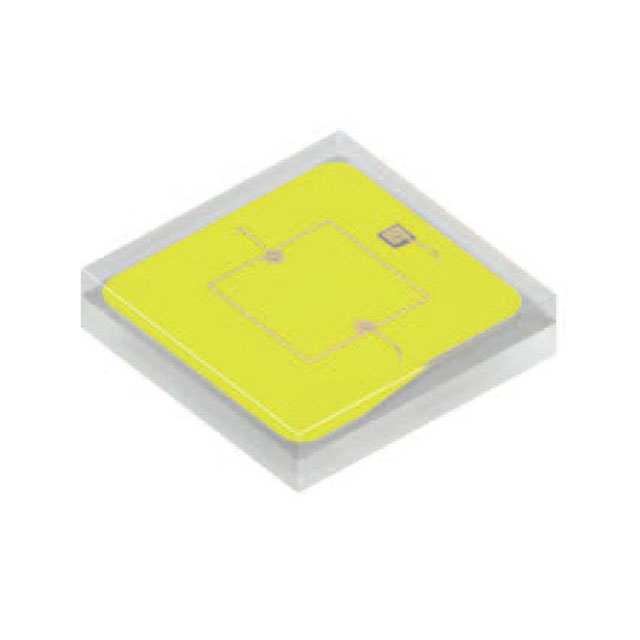

ams-OSRAM USA INC. KW CSLPM2.PC-7M7N-4C8E-0-700-S	3 °C/W	CSMD	1.8 A	0.035 in		156 lm/W	120 °			2.85 V	Cool White	70	6500 K	3 mm	0.118 in	3 mm	0.118 "	Surface Mount	3030 Metric	1212	0.88 mm	312 lm
ams-OSRAM USA INC. KW CSLPM2.CC-8L8M-4L8N-0-700-S	3 °C/W	CSMD	1.8 A	0.035 in	0.9 mm	110 lm/W	120 °	159 lm	280 lm	2.85 V	Neutral White	90	4000 K	3 mm	0.118 in	3 mm	0.118 "	Surface Mount	3030 Metric	1212

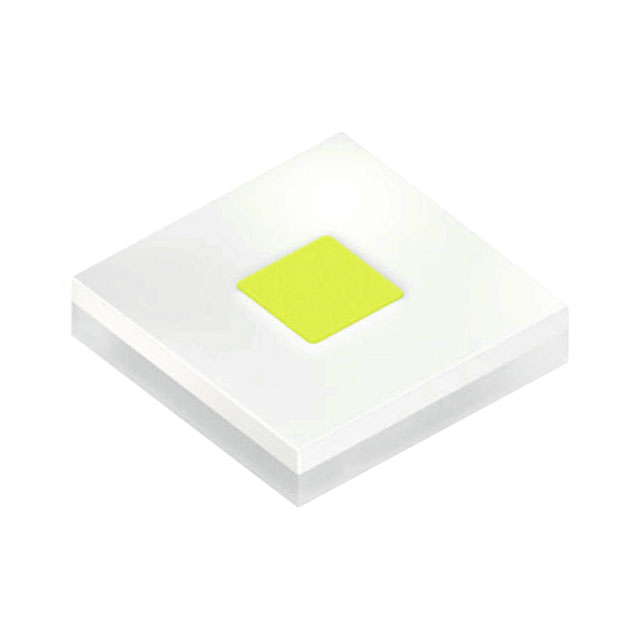

ams-OSRAM USA INC. KW CSLPM1.TG-8N7P-EBVF46FCBB46-15B5-S	2.6 °C/W	SMD	5 A	0.032 in	0.81 mm	123 lm/W	120 °			3 V	White			3 mm	0.118 in	3 mm	0.118 "	Surface Mount	3030 Metric	1212		515 lm
