78343 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

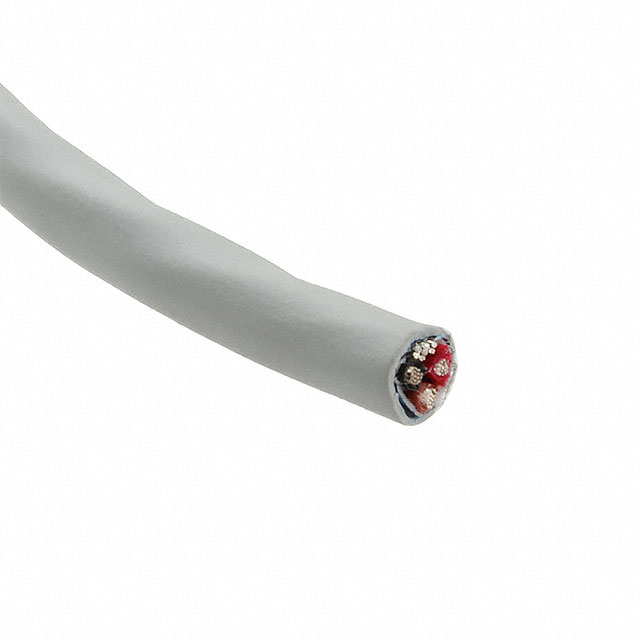

CABLE 3CON 20AWG SLATE SHLD 100'
| Part | Shield Material | Shield Coverage | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Length [x] | Length [x] | Conductor Material | Wire Gauge | Jacket (Insulation) Material | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Cable Type | Conductor Insulation | Ratings | Jacket Color | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Voltage | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned Suprashield® | 100 % | 19 | 32 AWG | 3 | 100 ft | 30.5 m | Copper Tinned | 20 AWG | Polyphenylene Ether Modified (mPPE) | Braid Foil | 0.181 in | 4.6 mm | Biological Compatibility Drain Wire Rip Cord | Multi-Conductor | Polyphenylene Ether Modified (mPPE) | ISO 10993 UL Style 21460 | Slate | 0.381 mm | 0.015 in | 300 VDC | 80 °C | -40 C |
