66226 Series

Catalog

CONN FFC HEADER 2POS 2.54MM

Part	Cable End Type	Termination	Material Flammability Rating	Connector/Contact Type	Number of Positions	Actuator Color	Contact Finish	Mounting Type	Current Rating (Amps)	Pitch [x]	Pitch [x]	Flat Flex Type	Voltage Rating	Locking Feature	Contact Material	Features	Contact Finish Thickness	Contact Finish Thickness	FFC, FCB Thickness	Housing Material	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol ICC (FCI) 66226-034LF	Notched	Solder	UL94 V-0	Header	2	Black	Gold or Gold GXT™	Free Hanging (In-Line)	2 A	2.54 mm	0.1 in	FFC	500 V	Flip Lock	Copper Nickel Alloy	Solder Retention Zero Insertion Force (ZIF)	0.76 Ám	30 Áin	0.2 mm	Thermoplastic	Blue	-65 ░C	105 ░C
Amphenol ICC (FCI) 66226-024LF		IDC	UL94 V-0	Header	24		Tin	Free Hanging (In-Line)	2 A	2.54 mm	0.1 in	FFC	500 V		Copper Nickel Alloy		2.54 µm	100 µin	0.33 mm	Thermoplastic	Blue	-65 ░C	105 ░C

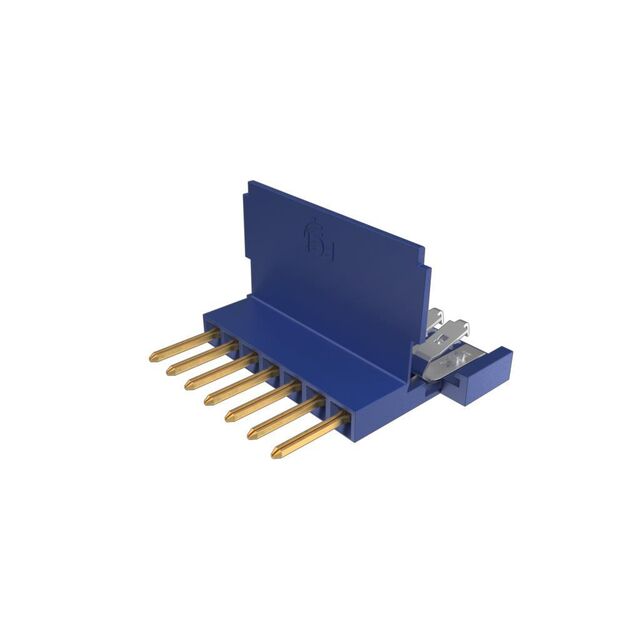

Amphenol ICC (FCI) 66226-039LF	Notched	Solder	UL94 V-0	Header	7	Natural	Gold or Gold GXT™	Free Hanging (In-Line)	2 A	2.54 mm	0.1 in	FFC	500 V	Flip Lock	Copper Nickel Alloy	Solder Retention Zero Insertion Force (ZIF)	0.76 Ám	30 Áin	0.2 mm	Thermoplastic	Blue	-65 ░C	105 ░C
Amphenol ICC (FCI) 66226-060		IDC	UL94 V-0	Header	28		Gold or Gold GXT™	Free Hanging (In-Line)	2 A	2.54 mm	0.1 in	FFC	500 V		Copper Nickel Alloy		0.76 Ám	30 Áin	0.33 mm	Thermoplastic	Blue	-65 ░C	105 ░C
Amphenol ICC (FCI) 66226-202LF	Notched	Solder	UL94 V-0	Header	12	Black	Gold or Gold GXT™	Free Hanging (In-Line)	2 A	2.54 mm	0.1 in	FFC	500 V	Backlock Flip Lock	Copper Nickel Alloy	Solder Retention Zero Insertion Force (ZIF)	0.76 Ám	30 Áin	0.2 mm	Thermoplastic	Blue	-65 ░C	105 ░C
Amphenol ICC (FCI) 66226-022		IDC	UL94 V-0	Header	22 positions		Tin	Free Hanging (In-Line)	2 A	2.54 mm	0.1 in	FFC	500 V		Copper Nickel Alloy		2.54 µm	100 µin	0.33 mm	Thermoplastic	Blue	-65 ░C	105 ░C
Amphenol ICC (FCI) 66226-005		IDC	UL94 V-0	Header			Tin	Free Hanging (In-Line)	2 A	2.54 mm	0.1 in	FFC	500 V		Copper Nickel Alloy		2.54 µm	100 µin	0.33 mm	Thermoplastic	Blue	-65 ░C	105 ░C
Amphenol ICC (FCI) 66226-215LF	Notched	Solder	UL94 V-0	Header	12	Natural	Gold or Gold GXT™	Free Hanging (In-Line)	2 A	2.54 mm	0.1 in	FFC	500 V	Flip Lock	Copper Nickel Alloy	Solder Retention Zero Insertion Force (ZIF)	0.76 Ám	30 Áin	0.2 mm	Thermoplastic	Blue	-65 ░C	105 ░C
Amphenol ICC (FCI) 66226-040		IDC	UL94 V-0	Header	8		Gold or Gold GXT™	Free Hanging (In-Line)	2 A	2.54 mm	0.1 in	FFC	500 V		Copper Nickel Alloy		0.76 Ám	30 Áin	0.33 mm	Thermoplastic	Blue	-65 ░C	105 ░C
Amphenol ICC (FCI) 66226-221LF	Notched	Solder	UL94 V-0	Header	8	Black	Gold or Gold GXT™	Free Hanging (In-Line)	2 A	2.54 mm	0.1 in	FFC	500 V	Backlock Flip Lock	Copper Nickel Alloy	Solder Retention Zero Insertion Force (ZIF)	0.76 Ám	30 Áin	0.2 mm	Thermoplastic	Blue	-65 ░C	105 ░C
