SAV8 Series
Manufacturer: E-Switch
Beta
⌘K
PUSHBUTTON SWITCHES ANTI-VANDAL, SPDT, ON-ON, PANEL MOUNT, FRONT, SILVER, LED, BLUE, IP67
| Part | Mechanical Life | Electrical Life | Illumination Voltage (Nominal) | Voltage Rating - AC | Current Rating (Amps) | Circuit | Panel Cutout Dimensions [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Color - Actuator/Cap | Actuator Type | Mounting Type | Switch Function | Termination Style | Illumination Type, Color | Type | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

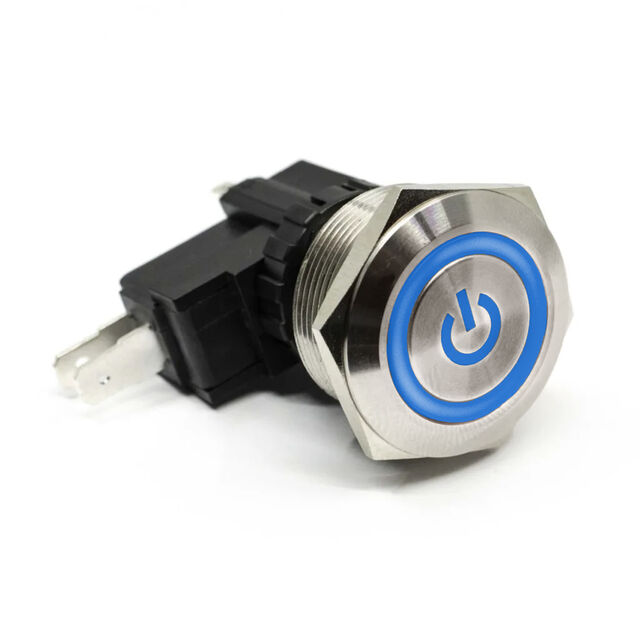

 E-Switch | 1000000 Cycles | 10000 Cycles | 24 V | 125 V | 15 A | SPDT | 25.2 mm | 85 °C | -25 °C | IP67 - Dust Tight Waterproof | Silver | Button Round | Panel Mount Front | On-On | Quick Connect | Blue LED | Anti-Vandal Illuminated | |

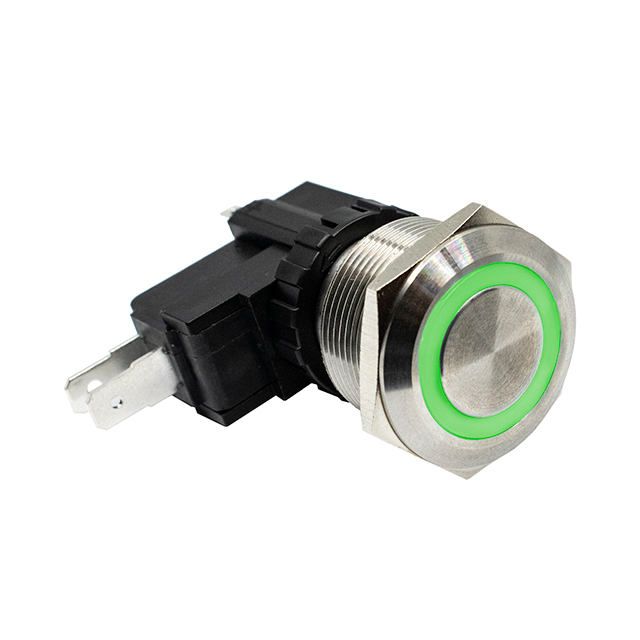

 E-Switch | 10000 Cycles | 3 VDC | 125 V | 15 A | SPDT | 25.2 mm | 85 °C | -25 °C | IP67 - Dust Tight Waterproof | Silver | Button Flush Round | Panel Mount Front | On-Mom | Quick Connect | Green LED | Anti-Vandal Illuminated | No Marking | |

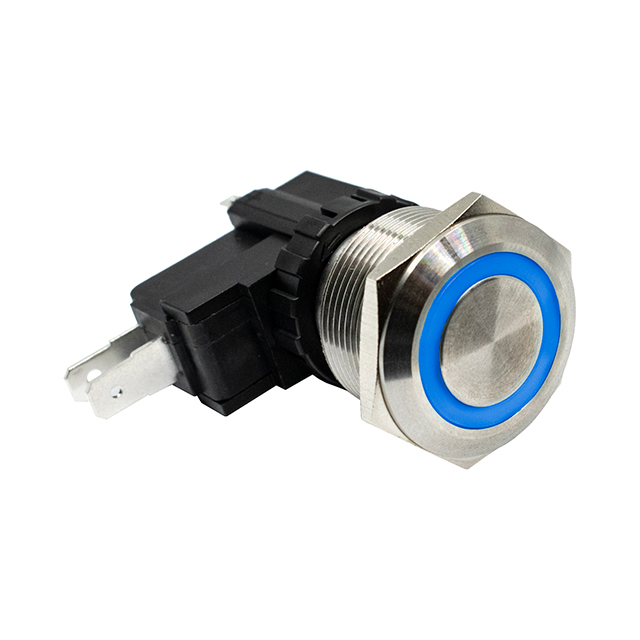

 E-Switch | 10000 Cycles | 12 VDC | 125 V | 15 A | SPDT | 25.2 mm | 85 °C | -25 °C | IP67 - Dust Tight Waterproof | Silver | Button Flush Round | Panel Mount Front | On-Mom | Quick Connect | Blue LED | Anti-Vandal Illuminated | No Marking | |

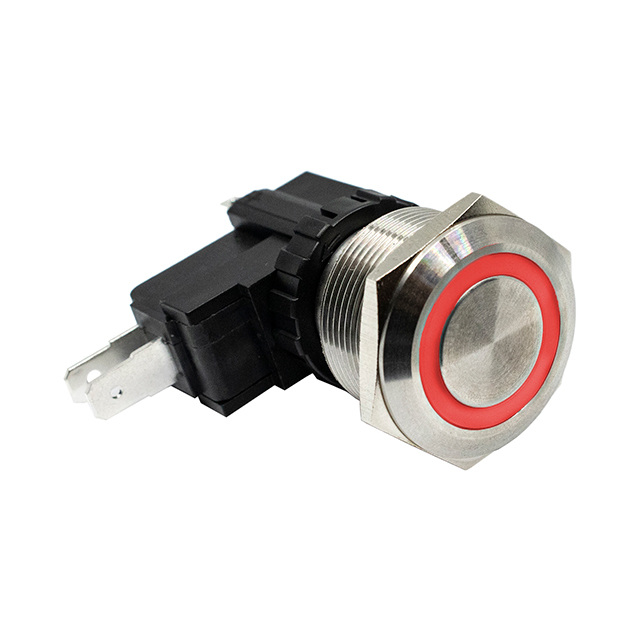

 E-Switch | 10000 Cycles | 3 VDC | 125 V | 15 A | SPDT | 25.2 mm | 85 °C | -25 °C | IP67 - Dust Tight Waterproof | Silver | Button Flush Round | Panel Mount Front | On-On | Quick Connect | LED Red | Anti-Vandal Illuminated | No Marking |
