T1920 Series

Catalog

H24BPR-TGH-2M25

Part	Housing Color	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]	Style	Size	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Housing Material	Ingress Protection	Connector Type	Housing Finish	Thread Size

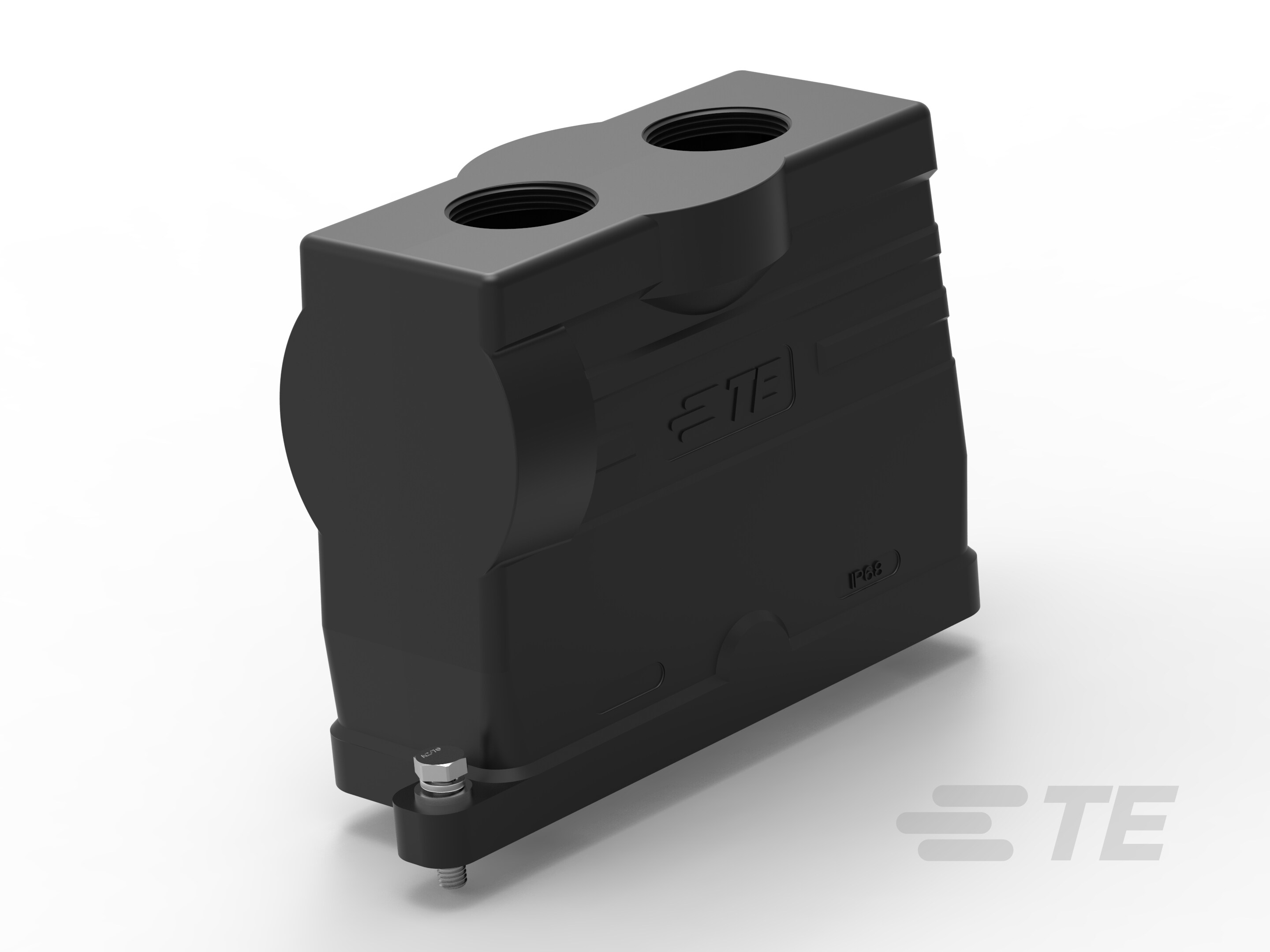

TE Connectivity AMP Connectors T1920240225-100	Black	Screw Locks on Hood	125 °C	-40 C	Top Entry Dual	H24B	4.4 in	7.598 "	111.75 mm	193 mm	58 mm	2.283 in	Aluminum Alloy Die Cast	IP68 - Dust Tight Waterproof	Hood	Powder Coated	M25

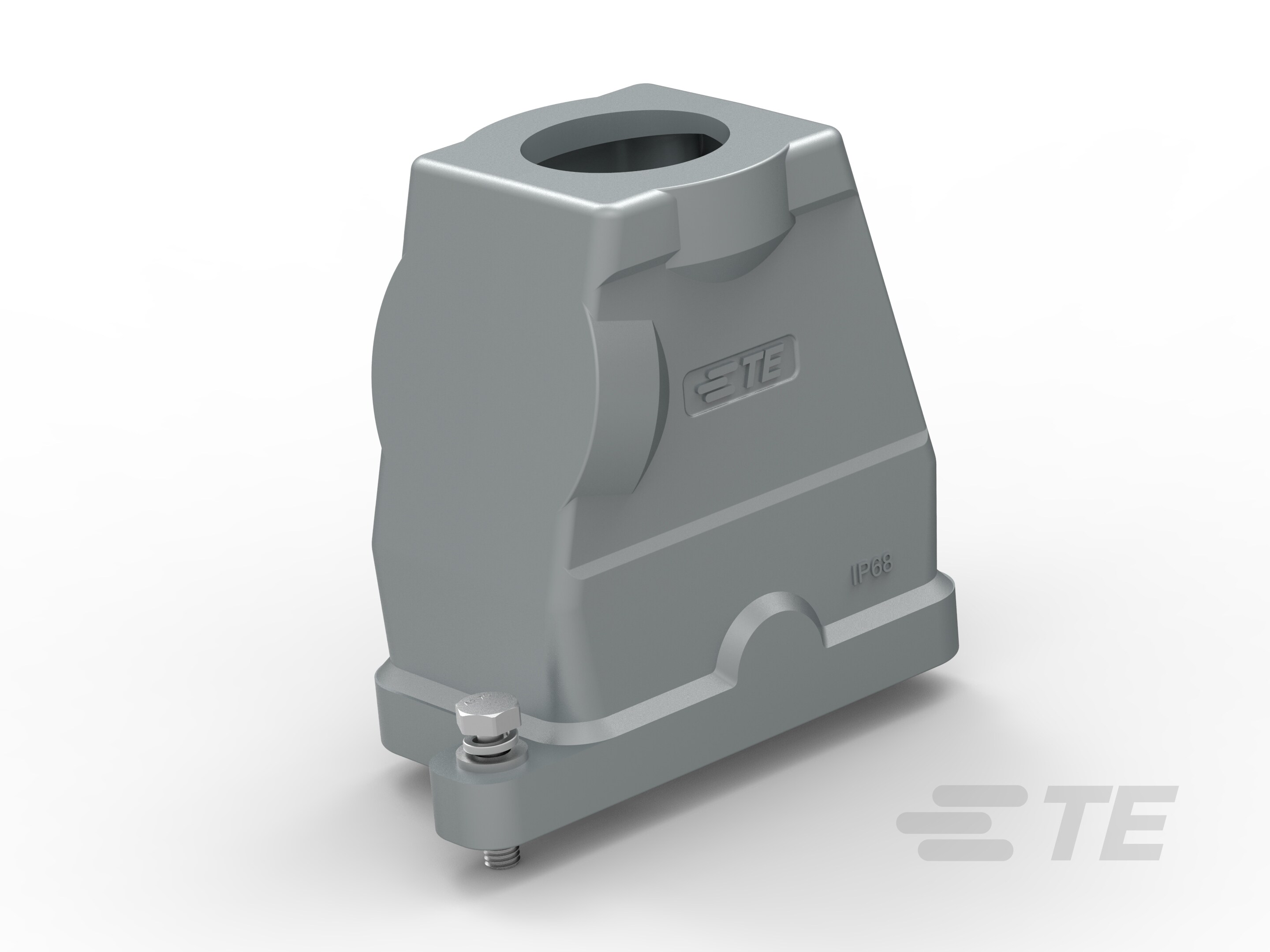

TE Connectivity AMP Connectors T1920061129-000	Silver	Screw Locks on Hood	125 °C	-40 C	Top Entry	H6B	3.976 in	5.236 "	101 mm	133 mm	58 mm	2.283 in	Aluminum Alloy Die Cast	IP68 - Dust Tight Waterproof	Hood	Powder Coated	PG29
TE Connectivity AMP Connectors T1920241129-000	Silver	Screw Locks on Hood	125 °C	-40 C	Top Entry	H24B	4.4 in	7.598 "	111.75 mm	193 mm	58 mm	2.283 in	Aluminum Alloy Die Cast	IP68 - Dust Tight Waterproof	Hood	Powder Coated	PG29
TE Connectivity AMP Connectors T1920062121-000	Gray	Screw Locks on Hood	125 °C	-40 C	Top Entry	H6B	3.976 in	5.236 "	101 mm	133 mm	58 mm	2.283 in	Aluminum Alloy Die Cast	IP68 - Dust Tight Waterproof	Hood	Powder Coated	PG21
