08K422 Series
Manufacturer: Rosenberger
Beta
⌘K

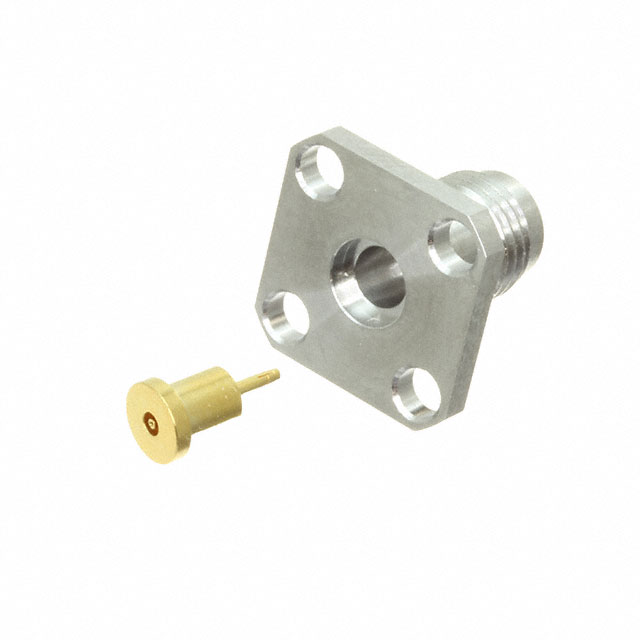

CONN RPC1.85 JACK STR 50OHM COMP
| Part | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Center Contact Plating | Mating Cycles | Body Material | Shield Termination | Frequency - Max [Max] | Housing Color | Center Contact Material | Mounting Feature | Mounting Type | Connector Style | Contact Termination | Features | Impedance | Connector Type | Fastening Type | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Polystyrene (PS) | 85 °C | -40 C | 150 VDC | Gold | 500 | Stainless Steel | Solder | 70 GHz | Silver | Beryllium Copper | Flange | Panel Mount | 1.85 mm | Compression | Field Replaceable For Hermetically Sealed Pin | 50 Ohms | Female Socket Jack | Threaded | 1 |
