28340 Series

Catalog

RELAY GEN PURPOSE DPDT 10A 48V

Part	Coil Resistance	Operate Time	Coil Voltage	Relay Type	Termination Style	Features	Mounting Type	Release Time	Coil Type	Contact Rating (Current)	Contact Form	Coil Current	Switching Voltage	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material
Phoenix Contact 2834038	2560 Ohms	13 ms	48 VDC	General Purpose	Plug In	Diode Lighted Indicator Test Button	Socketable	5 ms	Non Latching	10 A	DPDT (2 Form C)	19 mA	250 VAC 250 VDC	cULus EAC UL VDE	-55 C	70 °C	Silver (Ag)

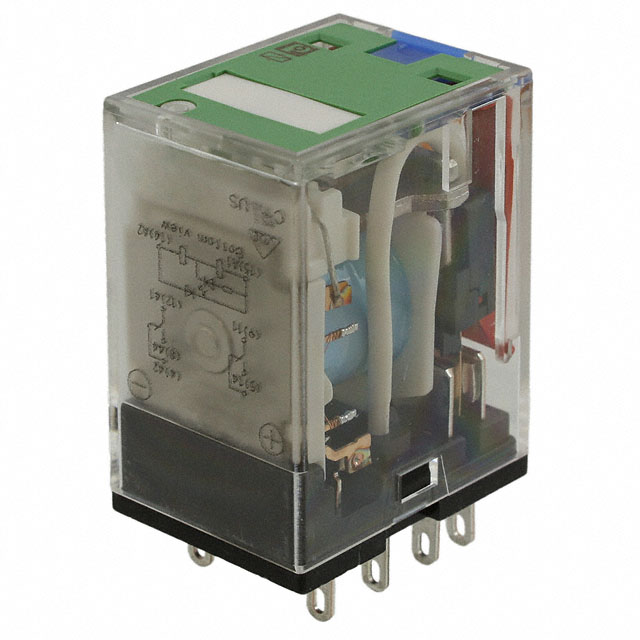

Phoenix Contact 2834025	636 Ohms	13 ms	24 VDC	General Purpose	Plug In	Diode Lighted Indicator Test Button	Socketable	5 ms	Non Latching	10 A	DPDT (2 Form C)	38 mA	250 VAC 250 VDC	cULus EAC UL VDE	-55 C	70 °C	Silver (Ag)
Phoenix Contact 2834070	18.79 kOhms	10 ms	230 VAC	General Purpose	Plug In		Socketable	12 ms	Non Latching	10 A	DPDT (2 Form C)		250 VAC 250 VDC	cULus EAC UL VDE	-55 C	70 °C	Silver (Ag)
Phoenix Contact 2834083	160 Ohms	13 ms	12 VDC	General Purpose	Plug In		Socketable	5 ms	Non Latching	5 A	4PDT (4 Form C)	0.075 A	250 VAC 250 VDC	cULus EAC UL VDE	-55 C	70 °C	Silver Nickel (AgNi)

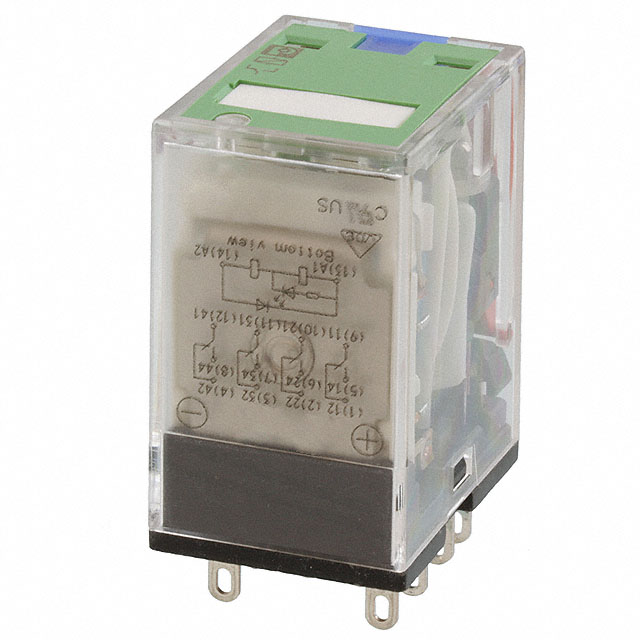

Phoenix Contact 2834096	636 Ohms	13 ms	24 VDC	General Purpose	Plug In		Socketable	5 ms	Non Latching	5 A	4PDT (4 Form C)	38 mA	250 VAC 250 VDC	cULus EAC UL VDE	-55 C	70 °C	Silver Nickel (AgNi)

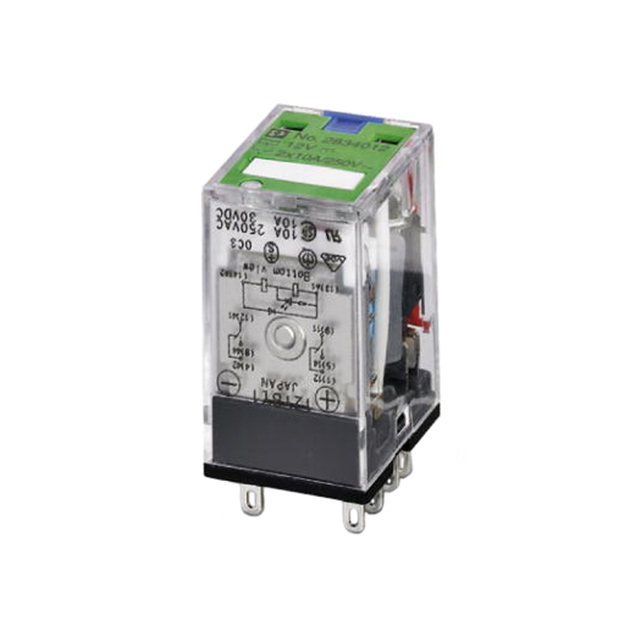

Phoenix Contact 2834012	160 Ohms	13 ms	12 VDC	General Purpose	Plug In		Socketable	5 ms	Non Latching	10 A	DPDT (2 Form C)	0.075 A	250 VAC 250 VDC	cULus EAC UL VDE	-55 C	70 °C	Silver (Ag)
