HEDS-9730 Series

Catalog

ROTARY ENCODR OPTICAL 180 LPI

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Output Type	Orientation	Pulses per Revolution	Mounting Type	Encoder Type	Actuator Type
Broadcom Limited HEDS-9730#Q54	2.8 V	5.2 V	Terminal Pins	Quadrature (Incremental)	Vertical	180 LPI	Chassis Mount	Optical	Codestrip Not Included
Broadcom Limited HEDS-9730#250	2.8 V	5.2 V	Terminal Pins	Quadrature (Incremental)	Vertical	300	Chassis Mount	Optical	Codestrip Not Included
Broadcom Limited HEDS-9730#A50	2.8 V	5.2 V	Terminal Pins	Quadrature (Incremental)	Vertical	500	Chassis Mount	Optical	Codewheel Not Included
Broadcom Limited HEDS-9730#A54	2.8 V	5.2 V	Terminal Pins	Quadrature (Incremental)	Vertical	500	Chassis Mount	Optical	Codewheel Not Included

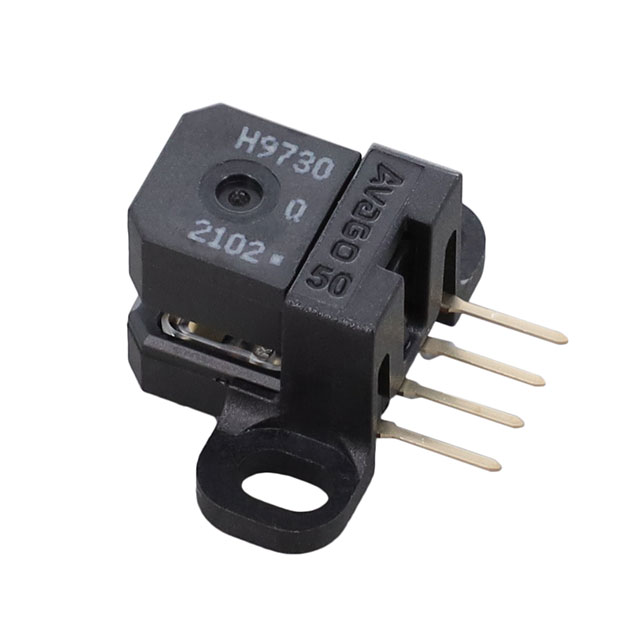

Broadcom Limited HEDS-9730#Q50	2.8 V	5.2 V	Terminal Pins	Quadrature (Incremental)	Vertical	180 LPI	Chassis Mount	Optical	Codestrip Not Included

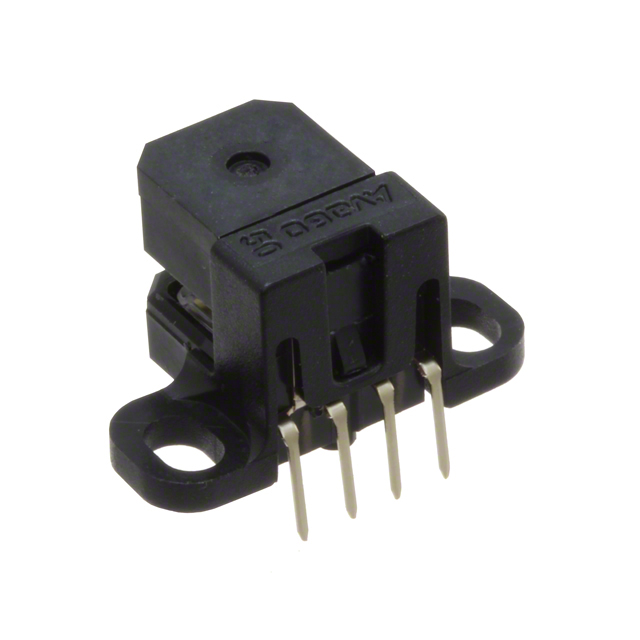

Broadcom Limited HEDS-9731#A50	2.8 V	5.2 V	Terminal Pins	Quadrature (Incremental)	Right Angle	500	Chassis Mount	Optical	Codewheel Not Included
