NFAL5065L4BT Series

Intelligent Power Module, SPM49, 650 V, 50A (NTC option)

Catalog

Intelligent Power Module, SPM49, 650 V, 50A (NTC option)

Part	Current	Mounting Type	Voltage	Configuration	Voltage - Isolation	Package / Case	Package / Case	Package / Case	Type	Package / Case
ON Semiconductor NFAL5065L4BT	50 A	Through Hole	650 V	3 Phase Inverter	2500 Vrms	31-PowerDIP Module	1.385 in	35.17 mm	IGBT

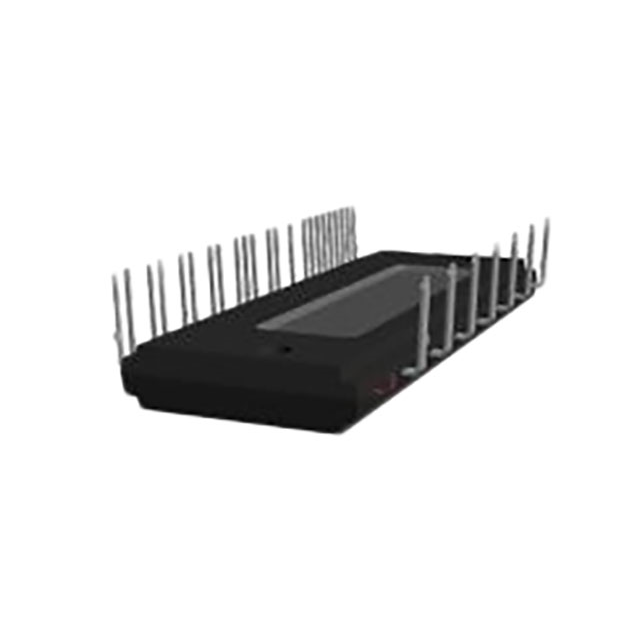

ON Semiconductor NFAL5065L4B	50 A	Through Hole	650 V	3 Phase Inverter	2500 Vrms	30-PowerDIP Module			IGBT	1.385 in 35.17 mm

Catalog

Intelligent Power Module, SPM49, 650 V, 50A (NTC option)

Key Features

• 650 V - 50 A 3-Phase IGBT Inverter with Integral Gate Drivers and Protection

• Low-Loss, Short-Circuit Rated IGBTs (FS4)

• Very Low Thermal Resistance Using Al2O3DBC Substrate

• Built-In Bootstrap Diodes and Dedicated Vs Pins Simplify PCB Layout

• Separate Open-Emitter Pins from Low-Side IGBTs

• Single-Grounded Power Supply

• LVIC Temperature-Sensing Built-In

• Isolation Rating: 2500 Vrms/ 1 min.

Description

NFAL5065L4BT is an advanced Motion SPM providing a fully-featured, high-performance inverter output stage for AC Induction, BLDC, and PMSM motors. These modules integrate optimized gate drive of the built-in IGBTs to minimize EMI and losses, while also providing multiple on-module protection features including under-voltage lockouts, over-current shutdown,thermal monitoring of drive IC, and fault reporting. The built-in, high-speed HVIC requires only a single supply voltage and translates the incoming logic-level gate inputs to the high-voltage, high-current drive signals required to properly drive the module's internal IGBTs. Separate negative IGBT terminals are available for each phase to support the widest variety of control algorithms.
