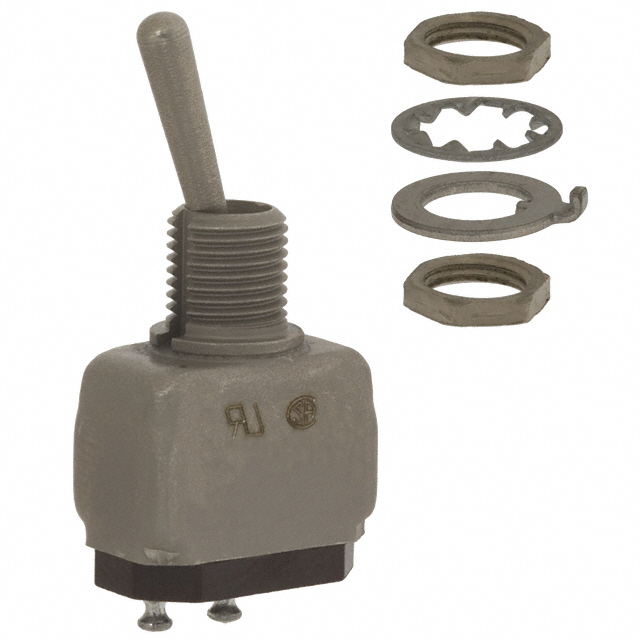

1TW1 Series

Catalog

SWITCH TOGGLE SPDT 5A 125V

Part	Voltage Rating - DC	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Bushing Thread	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Illumination	Ingress Protection	Switch Function	Termination Style	Current Rating (Amps)	Actuator Length [x]	Circuit
Honeywell Sensing and Productivity Solutions 1TW1-8	28 V	Panel Mount	-65 ░C	71 °C	Standard Round	1/4-40	6.6 mm	125 V	Non-Illuminated	Environment Sealed	On-Mom	Solder Turret	5 A	10.67 mm	SPDT
Honeywell Sensing and Productivity Solutions 1TW1-2	28 V	Panel Mount	-65 ░C	71 °C	Standard Round	1/4-40	6.6 mm	125 V	Non-Illuminated	Environment Sealed	On-Off	Solder Turret	5 A	10.67 mm	SPST
Honeywell Sensing and Productivity Solutions 1TW101-2		Panel Mount	-65 ░C	71 °C	Standard Round	1/4-40	6.6 mm	125 V	Non-Illuminated	Environment Sealed	On-Off	Solder Turret	5 A	10.67 mm	SPST
Honeywell Sensing and Productivity Solutions 1TW1-7	28 V	Panel Mount	-65 ░C	71 °C	Standard Round	1/4-40	6.6 mm	125 V	Non-Illuminated	Environment Sealed	Mom-Off-Mom	Solder Turret	5 A	10.67 mm	SPDT
Honeywell Sensing and Productivity Solutions 1TW101-8		Panel Mount	-65 ░C	71 °C	Standard Round	1/4-40	6.6 mm	125 V	Non-Illuminated	Environment Sealed	On-Mom	Solder Turret	5 A	10.67 mm	SPDT
