NRPN122 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER SMD 24POS 2MM

Part	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Shrouding	Insulation Material	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Connector Type	Mounting Type	Material Flammability Rating	Contact Finish - Post	Number of Positions Loaded	Number of Positions	Voltage Rating	Contact Finish Thickness - Mating	Style	Contact Material	Fastening Type	Current Rating (Amps)	Contact Shape	Termination	Number of Rows [custom]	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Features	Contact Length - Post [custom]	Contact Length - Post	Insulation Height [z]	Insulation Height [z]	Overall Contact Length	Overall Contact Length
Sullins Connector Solutions NRPN122MAMS-RC	Flash	0.141 in	3.6 mm	-40 C	105 ░C	Black	Unshrouded	Nylon 6T Polyamide (PA6T)	0.059 in	1.5 mm	2 mm	0.079 in	Male Pin	Header	Surface Mount	UL94 V-0	Gold	All	24	150 VDC	Flash	Board to Board Cable	Brass	Push-Pull	2 A	Square	Solder	2	Gold	0.079 "	2 mm
Sullins Connector Solutions NRPN122MAMS-M81RC	Flash	0.141 in	3.6 mm	-40 C	105 ░C	Black	Unshrouded	Nylon 6T Polyamide (PA6T)	0.059 in	1.5 mm	2 mm	0.079 in	Male Pin	Header	Surface Mount	UL94 V-0	Gold	All	24	150 VDC	Flash	Board to Board Cable	Brass	Push-Pull	2 A	Square	Solder	2	Gold	0.079 "	2 mm	Pick and Place

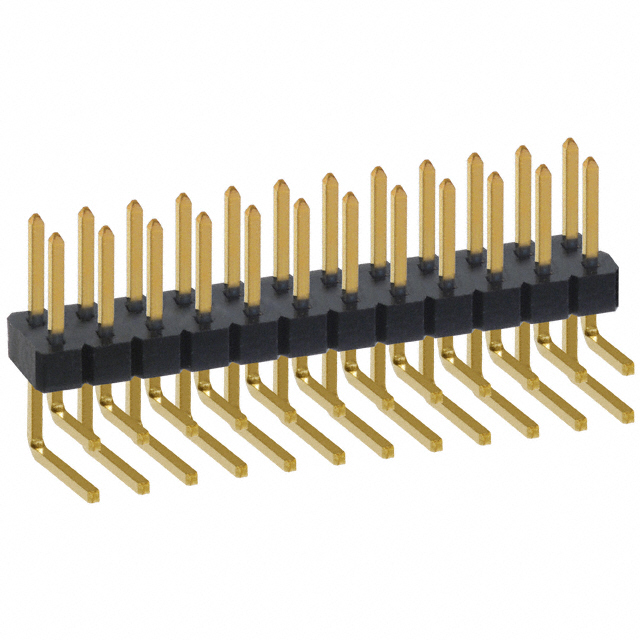

Sullins Connector Solutions NRPN122PARN-RC	Flash	0.141 in	3.6 mm	-40 C	105 ░C	Black	Unshrouded	Nylon 6T Polyamide (PA6T)			2 mm	0.079 in	Male Pin	Header	Right Angle Through Hole	UL94 V-0	Gold	All	24	150 VDC	Flash	Board to Board Cable	Brass	Push-Pull	2 A	Square	Solder	2	Gold	0.079 "	2 mm		0.11 in	2.79 mm	4 mm	0.157 in
Sullins Connector Solutions NRPN122PAEN-RC	Flash	0.141 in	3.6 mm	-40 C	105 ░C	Black	Unshrouded	Nylon 6T Polyamide (PA6T)			2 mm	0.079 in	Male Pin	Header	Through Hole	UL94 V-0	Gold	All	24	150 VDC	Flash	Board to Board Cable	Brass	Push-Pull	2 A	Square	Solder	2	Gold	0.079 "	2 mm		0.11 in	2.79 mm	2 mm	0.079 in	0.33 in	8.38 mm
