BNX0 Series

Catalog

POWER LINE FILTER, EMI, 15A, 50V, TH

Part	Voltage - Rated	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Height [z]	Height	Number of Channels	Type	Technology	Applications	Filter Order	Resistance - Channel (Ohms)	Values	Current	Attenuation Value	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Height	Height [z]
Murata Electronics BNX005-11

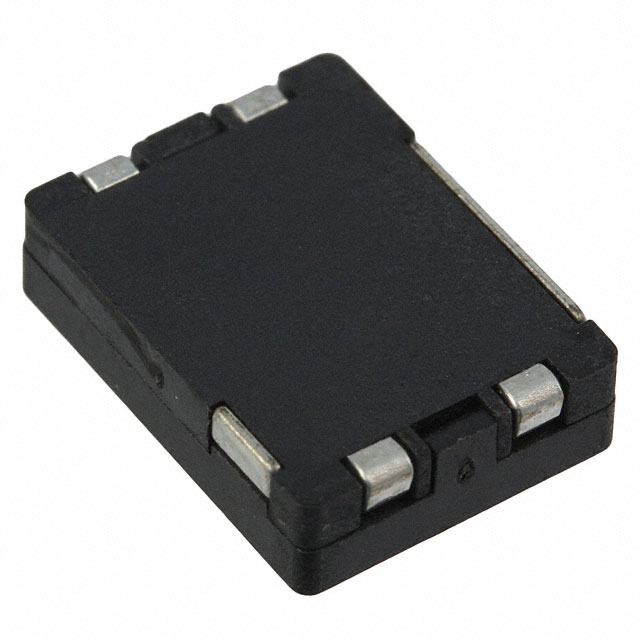

Murata Electronics BNX023-01L	100 V	0.476 in	12.1 mm	9.1 mm	0.358 in	4-SMD No Lead	0.13 "	3.3 mm	2	Low Pass	LC	Data Lines for Mobile Devices	5	0.00043 Ohms	1 µF	20 A	35 dB	125 °C	-40 C	Surface Mount
Murata Electronics BNX024H01L

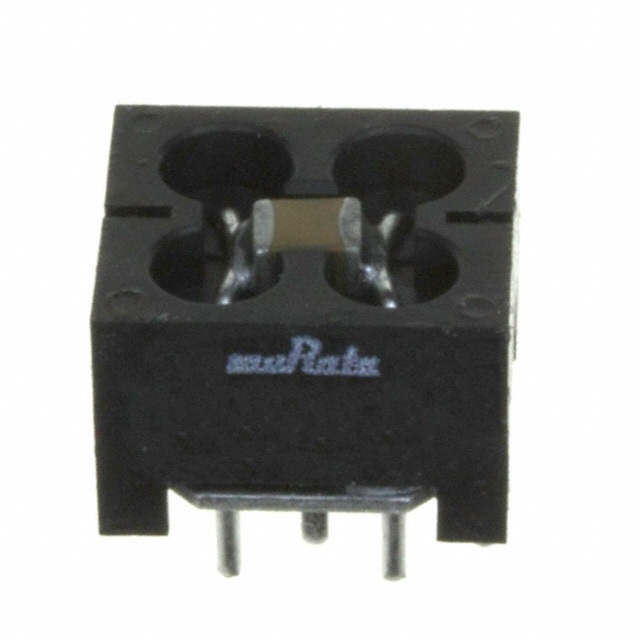

Murata Electronics BNX016-01	25 VDC	0.472 in	12 mm	11 mm	0.433 in	Block 4 Lead		8.5 mm	2	Low Pass	LC	Data Lines for Mobile Devices	5			15 A	40 dB	125 °C	-40 C	Through Hole	0.335 in
Murata Electronics BNX024H01L	50 VDC	0.476 in	12.1 mm	9.1 mm	0.358 in	4-SMD No Lead	0.146 in		2	Low Pass	LC		5	0.00043 Ohms	4.7 µF	20 A	35 dB	125 °C	-55 C	Surface Mount		3.7 mm
Murata Electronics BNX025H01B	25 VDC	0.476 in	12.1 mm	9.1 mm	0.358 in	4-SMD No Lead	0.146 in		2	Low Pass	LC		5	0.00043 Ohms	10 µF	15 A	35 dB	125 °C	-55 C	Surface Mount		3.7 mm
Murata Electronics BNX023-01B	100 V	0.476 in	12.1 mm	9.1 mm	0.358 in	4-SMD No Lead	0.13 "	3.3 mm	2	Low Pass	LC	Data Lines for Mobile Devices	5	0.00043 Ohms	1 µF	15 A	35 dB	125 °C	-40 C	Surface Mount
Murata Electronics BNX022-01B	50 VDC	0.476 in	12.1 mm	9.1 mm	0.358 in	4-SMD No Lead	0.13 "	3.3 mm	2	Low Pass	LC	Data Lines for Mobile Devices	5	0.00043 Ohms	1 µF	10 A	35 dB	125 °C	-40 C	Surface Mount
Murata Electronics BNX005-11	50 VDC	0.472 in	12 mm	11 mm	0.433 in	Block 4 Lead		13 mm	2	Low Pass	LC	Data Lines for Mobile Devices	5			15 A	40 dB	85 °C	-40 C	Through Hole	0.512 in
