PS9905 Series

2.5 A OUTPUT CURRENT, HIGH CMR, IGBT GATE DRIVE, 8-PIN LSDIP PHOTOCOUPLER FOR CREEPAGE DISTANCE OF 15 mm

Manufacturer: Renesas Electronics Corporation

Catalog

2.5 A OUTPUT CURRENT, HIGH CMR, IGBT GATE DRIVE, 8-PIN LSDIP PHOTOCOUPLER FOR CREEPAGE DISTANCE OF 15 mm

Part	Voltage - Forward (Vf) (Typ)	Mounting Type	Approval Agency	Current - DC Forward (If) (Max) [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Number of Channels	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Current - Peak Output	Operating Temperature [Min]	Operating Temperature [Max]	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Voltage - Isolation	Technology	Common Mode Transient Immunity (Min) [Min]	Pulse Width Distortion (Max) [Max]	Supplier Device Package

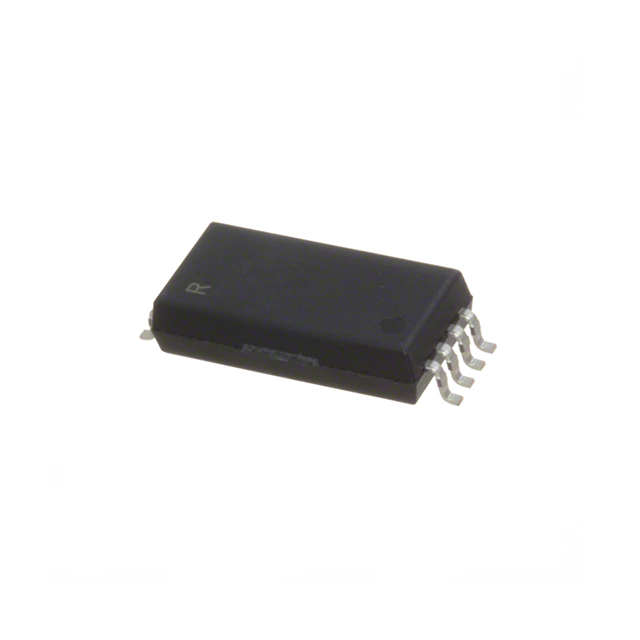

Renesas Electronics Corporation PS9905-Y-V-F3-AX	1.56 V	Surface Mount	CSA SEMKO UL VDE	25 mA	50 ns	50 ns	1	2 A	2 A	15 V	30 V	2.5 A	-40 °C	110 °C	150 ns	150 ns	7500 Vrms	Optical Coupling	25 kV/µs	75 ns	8-LSDIP
Renesas Electronics Corporation PS9905-Y-F3-AX	1.56 V	Surface Mount	CSA SEMKO UL	25 mA	50 ns	50 ns	1	2 A	2 A	15 V	30 V	2.5 A	-40 °C	110 °C	150 ns	150 ns	7500 Vrms	Optical Coupling	25 kV/µs	75 ns	8-LSDIP

Catalog

2.5 A OUTPUT CURRENT, HIGH CMR, IGBT GATE DRIVE, 8-PIN LSDIP PHOTOCOUPLER FOR CREEPAGE DISTANCE OF 15 mm

Description

The PS9905 is optically coupled isolator containing an AlGaAs LED on the input side and a photo diode, a signal processing circuit and a power output transistor on the output side on one chip.
