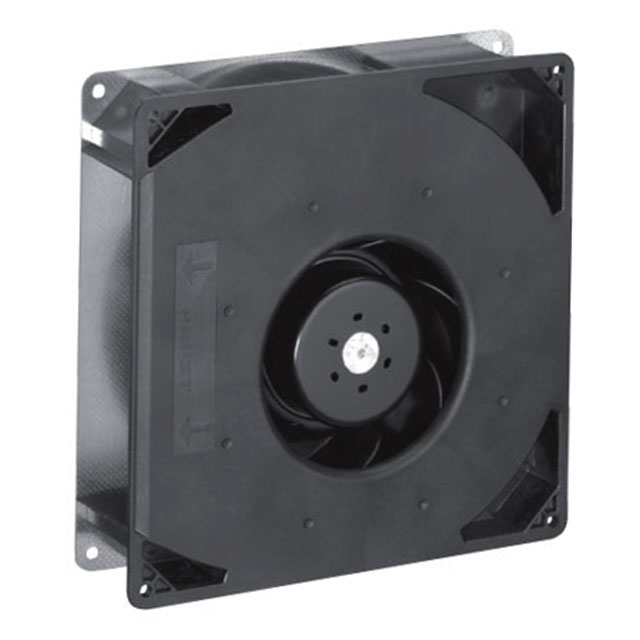

RG160 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

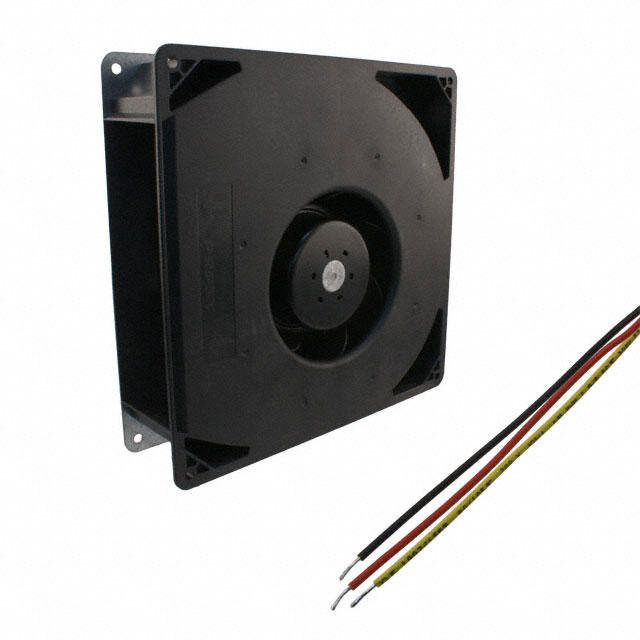

FAN BLOWER CF 220X56MM 24VDC
| Part | Material - Frame | Lifetime @ Temp. | Material - Blade | Voltage Range [Min] | Voltage Range [Max] | Width [y] | Fan Type | Bearing Type | Termination | Approval Agency | Size / Dimension [x] | Size / Dimension [z] | Voltage - Rated | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Power (Watts) | RPM | Air Flow | Air Flow | Ingress Protection | Weight | Weight | Features | Current Rating (Amps) | Noise |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Fiberglass Reinforced Plastic Steel | 40 °C 50000 Hrs | Fiberglass Reinforced Plastic | 16 VDC | 28 V | 56 mm | Blower Centrifugal | Ball | 2 Wire Leads | CSA UL VDE | 220 mm | 220 mm | 24 VDC | 60 °C | 60 °C | -4 °F | -20 ░C | 101 W | 5000 RPM | 6.1 m³/min | 217.8 CFM | ||||||
 ebm-papst Inc. | 12 VDC | 28 V | 56 mm | Blower Centrifugal | Ball | 2 Wire Leads | UL | 220 mm | 220 mm | 24 VDC | 55 °C | 55 °C | -4 °F | -20 ░C | 20 W | 2850 RPM | 3.44 m³/min | 123 CFM | IP68 - Dust Tight Waterproof | 1.4 kg | 3 lb | ||||||
 ebm-papst Inc. | Glass Filled Plastic | 70000 Hrs | Fiberglass Reinforced Plastic | 12 VDC | 28 V | 56 mm | Blower Centrifugal | Ball | 2 Wire Leads | 220 mm | 220 mm | 24 VDC | 70 °C | -20 ░C | 20 W | 2850 RPM | 3.44 m³/min | 123 CFM | 1.4 kg | 3.1 lbs | |||||||
 ebm-papst Inc. | Fiberglass Reinforced Plastic Steel | 55000 Hrs | Fiberglass Reinforced Plastic | 16 VDC | 28 V | 56 mm | Blower Centrifugal | Ball | 2 Wire Leads | CSA UL VDE | 220 mm | 220 mm | 24 VDC | 60 °C | 60 °C | -4 °F | -20 ░C | 64 W | 4200 RPM | 5.08 mł/min | 181.3 CFM | ||||||
 ebm-papst Inc. | Glass Filled Plastic | 70000 Hrs | Fiberglass Reinforced Plastic | 28 V | 60 V | 56 mm | Blower Centrifugal | Ball | 3 Wire Leads | 220 mm | 220 mm | 48 VDC | 70 °C | -20 ░C | 20 W | 2850 RPM | 3.44 m³/min | 123 CFM | 1.4 kg | 3.1 lbs | Speed Sensor (Tach) | ||||||
 ebm-papst Inc. | Glass Filled Plastic | 55000 Hrs | Fiberglass Reinforced Plastic | 16 VDC | 28 V | 56 mm | Blower Centrifugal | Ball | 3 Wire Leads | 220 mm | 220 mm | 24 VDC | 60 °C | 60 °C | -4 °F | -20 ░C | 64 W | 4200 RPM | 5.08 mł/min | 181.3 CFM | IP20 | 1.4 kg | 3.1 lbs | Temperature Sensor | 2.65 A | ||
ebm-papst Inc. | Glass Filled Plastic | 70000 Hrs | Fiberglass Reinforced Plastic | 7.5 VDC | 14 V | 56 mm | Blower Centrifugal | Ball | 3 Wire Leads | 220 mm | 220 mm | 12 VDC | 70 °C | -20 ░C | 21 W | 2850 RPM | 3.44 m³/min | 123 CFM | 1.4 kg | 3.1 lbs | Speed Sensor (Tach) | ||||||
 ebm-papst Inc. | Glass Filled Plastic | 80000 Hrs | Fiberglass Reinforced Plastic | 12 VDC | 28 V | 56 mm | Blower Centrifugal | Ball | 2 Wire Leads | 220 mm | 220 mm | 24 VDC | 70 °C | -20 ░C | 7 W | 1900 RPM | 2.29 m³/min | 81.8 CFM | 1.4 kg | 3.1 lbs | 56 dB |
