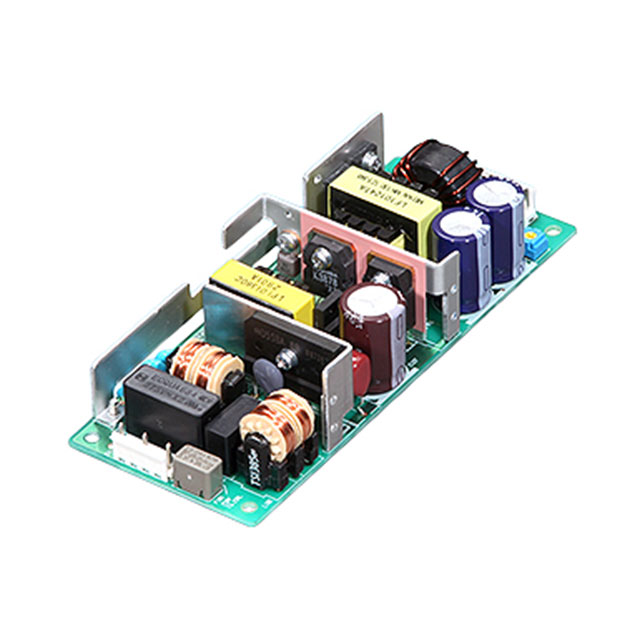

LFP100F Series

Catalog

AC/DC CONVERTER 24V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Type	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1	Current - Output 1	Mounting Type	Efficiency	Approval Agency	Voltage - Isolation	Applications	Voltage - Output 1 [custom]	Features	Power (Watts)
Cosel USA, Inc. LFP100F-24-RY	70 °C	-10 °C	Open Frame	1	2.44 "	1.3 in	33 mm	154.9 mm	62 mm	6.1 "	24 V	4.3 A	Chassis Mount	87 %	CE cURus TUV	3000 V	ITE (Commercial)
Cosel USA, Inc. LFP100F-24-SY	70 °C	-10 °C	Open Frame	1	2.44 "	1.3 in	33 mm	154.9 mm	62 mm	6.1 "	24 V	4.3 A	Chassis Mount	87 %	CE cURus TUV	3000 V	ITE (Commercial)
Cosel USA, Inc. LFP100F-36-Y	70 °C	-10 °C	Open Frame	1	2.44 "	1.3 in	33 mm	154.9 mm	62 mm	6.1 "		2.8 A	Chassis Mount	87 %	CE cURus TUV	3000 V	ITE (Commercial)	36 V
Cosel USA, Inc. LFP100F-36-SY	70 °C	-10 °C	Open Frame	1	2.44 "	1.3 in	33 mm	154.9 mm	62 mm	6.1 "		2.8 A	Chassis Mount	87 %	CE cURus TUV	3000 V	ITE (Commercial)	36 V
Cosel USA, Inc. LFP100F-24-R2Y	70 °C	-10 °C	Open Frame	1	2.44 "	1.3 in	33 mm	154.9 mm	62 mm	6.1 "	24 V	4.3 A	Chassis Mount	87 %	CE cURus TUV	3000 V	ITE (Commercial)
Cosel USA, Inc. LFP100F-24-CY	70 °C	-10 °C	Open Frame	1	2.44 "	1.3 in	33 mm	154.9 mm	62 mm	6.1 "	24 V	4.3 A	Chassis Mount	87 %	CE cURus TUV	3000 V	ITE (Commercial)
Cosel USA, Inc. LFP100F-24-Y	70 °C	-10 °C	Open Frame	1							24 V	4.3 A	Chassis Mount	87 %	CE cURus TUV		ITE (Commercial)		Universal Input	100 W
Cosel USA, Inc. LFP100F-24-J1Y	70 °C	-10 °C	Open Frame	1	2.44 "	1.3 in	33 mm	154.9 mm	62 mm	6.1 "	24 V	4.3 A	Chassis Mount	87 %	CE cURus TUV	3000 V	ITE (Commercial)
Cosel USA, Inc. LFP100F-48-R2Y	70 °C	-10 °C	Open Frame	1	2.44 "	1.3 in	33 mm	154.9 mm	62 mm	6.1 "	48 V	2.1 A	Chassis Mount	87 %	CE cURus TUV	3000 V	ITE (Commercial)
Cosel USA, Inc. LFP100F-48-Y	70 °C	-10 °C	Open Frame	1							48 V	2.1 A	Chassis Mount	87 %	CE cURus TUV		ITE (Commercial)		Universal Input	100 W
