316-014 Series
Manufacturer: EDAC Inc.
Beta
⌘K

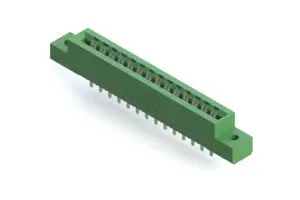

CONN EDGE DUAL FMALE 28POS 0.156
| Part | Termination Rows | Material - Insulation | Termination | Pitch | Pitch | Number of Positions/Bay/Row | Contact Finish | Mounting Type | Number of Rows [custom] | Color | Features | Flange Feature | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Card Thickness [Max] | Card Thickness [Min] | Contact Type | Contact Material | Card Type | Number of Positions | Read Out | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | Solder | 3.96 mm | 0.156 in | 14 | Tin | Panel Mount Through Hole | 2 | Green | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | -40 C | 105 ░C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Copper Alloy | Non Specified - Dual Edge | 28 | Dual | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Solder | 3.96 mm | 0.156 in | 14 | Tin | Panel Mount Through Hole | 2 | Green | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | -40 C | 105 ░C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Copper Alloy | Non Specified - Dual Edge | 28 | Dual | ||||
 EDAC Inc. | 1 | Polyester Thermoplastic | Solder | 3.96 mm | 0.156 in | 14 | Tin | Panel Mount Through Hole | 2 | Green | Flush Mount Top Opening Unthreaded | -40 C | 105 ░C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Copper Alloy | Non Specified - Dual Edge | 28 | Dual | 3.25 mm | 0.128 " | |||
EDAC Inc. | 1 | Polyester Thermoplastic | Solder Eyelet(s) | 3.96 mm | 0.156 in | 14 | Tin | Panel Mount | 2 | Green | 4-40 Flush Mount Threaded Insert Top Opening | -40 C | 105 ░C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Copper Alloy | Non Specified - Dual Edge | 28 | Dual | |||||
EDAC Inc. | 1 | Polyester Thermoplastic | Solder | 3.96 mm | 0.156 in | 14 | Gold | Through Hole | 2 | Green | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | -40 C | 105 ░C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Copper Alloy | Non Specified - Dual Edge | 28 | Dual | 0.25 Ám | 10 Áin | ||
EDAC Inc. | 1 | Polyester Thermoplastic | Solder | 3.96 mm | 0.156 in | 14 | Gold | Panel Mount Through Hole | 2 | Green | Flush Mount Side Opening Unthreaded | -40 C | 105 ░C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Copper Alloy | Non Specified - Dual Edge | 28 | Dual | 3.25 mm | 0.128 " | 0.25 Ám | 10 Áin | |
EDAC Inc. | 1 | Polyester Thermoplastic | Solder | 3.96 mm | 0.156 in | 14 | Tin | Panel Mount Through Hole | 2 | Green | Flush Mount Top Opening Unthreaded | -40 C | 105 ░C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Copper Alloy | Non Specified - Dual Edge | 28 | Dual | 3.96 mm | 0.156 " | |||
EDAC Inc. | 1 | Polyester Thermoplastic | Solder | 3.96 mm | 0.156 in | 14 | Tin | Panel Mount Through Hole | 2 | Green | Flush Mount Side Opening Unthreaded | -40 C | 105 ░C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Copper Alloy | Non Specified - Dual Edge | 28 | Dual | 3.25 mm | 0.128 " | |||
 EDAC Inc. | 1 | Polyester Thermoplastic | Solder | 3.96 mm | 0.156 in | 14 | Gold | Through Hole | 2 | Green | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | -40 C | 105 ░C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Copper Alloy | Non Specified - Dual Edge | 28 | Dual | 0.25 Ám | 10 Áin | ||
EDAC Inc. | 1 | Polyester Thermoplastic | Solder Eyelet(s) | 3.96 mm | 0.156 in | 14 | Tin | Panel Mount | 2 | Green | Card Guides | 4-40 Flush Mount Threaded Insert Top Opening | -40 C | 105 ░C | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Cantilever | Copper Alloy | Non Specified - Dual Edge | 28 | Dual |
