D25P91 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

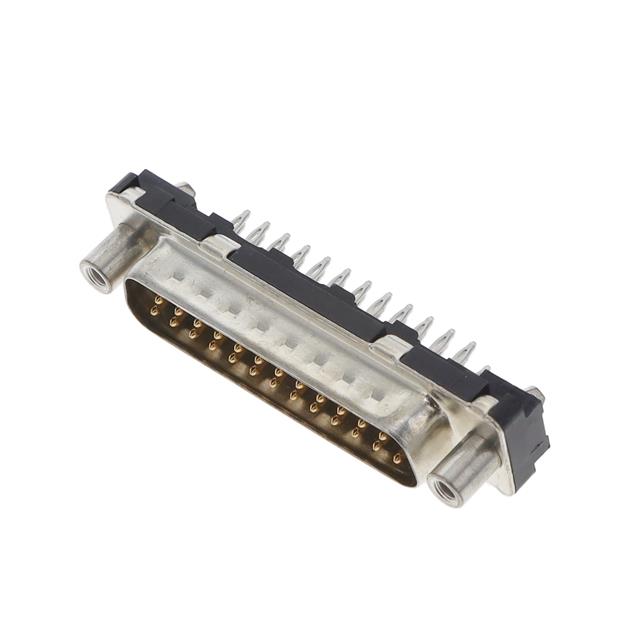

CONN D-SUB PLUG 25P VERT PRESS
| Part | Color | Material Flammability Rating | Contact Material | Dielectric Material | Termination | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish | Connector Type | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Shell Material, Finish | Connector Style | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Voltage Rating | Features | Flange Feature | Current Rating (Amps) | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Black | UL94 V-0 | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Press-Fit | B DB | 3 | Gold | Male Pins Plug | Signal | 0.76 Ám | 30 Áin | 2 | Steel Tin-Nickel Plated | D-Sub | -55 °C | 125 °C | Through Hole | 300 VDC | Grounding Indents | Housing/Shell (4-40) | 5 A | |
Amphenol ICC (FCI) | Black | UL94 V-0 | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Press-Fit | B DB | 3 | Gold | Male Pins Plug | Signal | 2 | D-Sub | -55 °C | 125 °C | Through Hole | 300 VDC | Board Lock Grounding Indents | Housing/Shell (M3) | 5 A | Flash | |||
 Amphenol ICC (FCI) | Black | UL94 V-0 | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Press-Fit | B DB | 3 | Gold | Male Pins Plug | Signal | 2 | Steel Tin-Nickel Plated | D-Sub | -55 °C | 125 °C | Through Hole | 300 VDC | Board Lock Grounding Indents | Female Screwlock (4-40) Mating Side | 5 A | Flash | ||
Amphenol ICC (FCI) | Black | UL94 V-0 | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Press-Fit | B DB | 3 | Gold | Male Pins Plug | Signal | 2 | Steel Tin-Nickel Plated | D-Sub | -55 °C | 125 °C | Through Hole | 300 VDC | Grounding Indents | Housing/Shell (Unthreaded) | 5 A | Flash | ||
Amphenol ICC (FCI) | Black | UL94 V-0 | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Press-Fit | B DB | 3 | Gold | Male Pins Plug | Signal | 2 | D-Sub | -55 °C | 125 °C | Through Hole | 300 VDC | Grounding Indents | Housing/Shell (M3) | 5 A | Flash | |||
Amphenol ICC (FCI) | Black | UL94 V-0 | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Press-Fit | B DB | 3 | Gold | Male Pins Plug | Signal | 2 | D-Sub | -55 °C | 125 °C | Through Hole | 300 VDC | Grounding Indents | Housing/Shell (4-40) | 5 A | Flash | |||
Amphenol ICC (FCI) | Black | UL94 V-0 | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Press-Fit | B DB | 3 | Gold | Male Pins Plug | Signal | 2 | D-Sub | -55 °C | 125 °C | Through Hole | 300 VDC | Board Lock Grounding Indents | Housing/Shell (4-40) | 5 A | Flash | |||
Amphenol ICC (FCI) | Black | UL94 V-0 | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Press-Fit | B DB | 3 | Gold | Male Pins Plug | Signal | 0.76 Ám | 30 Áin | 2 | D-Sub | -55 °C | 125 °C | Through Hole | 300 VDC | Board Lock Grounding Indents | Female Screwlock (M3) Mating Side | 5 A | ||
Amphenol ICC (FCI) | Black | UL94 V-0 | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Press-Fit | B DB | 3 | Gold | Male Pins Plug | Signal | 2 | Steel Tin-Nickel Plated | D-Sub | -55 °C | 125 °C | Through Hole | 300 VDC | Grounding Indents | Housing/Shell (4-40) | 5 A | Flash | ||
Amphenol ICC (FCI) | Black | UL94 V-0 | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Press-Fit | B DB | 3 | Gold | Male Pins Plug | Signal | 0.76 Ám | 30 Áin | 2 | D-Sub | -55 °C | 125 °C | Through Hole | 300 VDC | Board Lock Grounding Indents | Housing/Shell (M3) | 5 A |
