430860 Series

Catalog

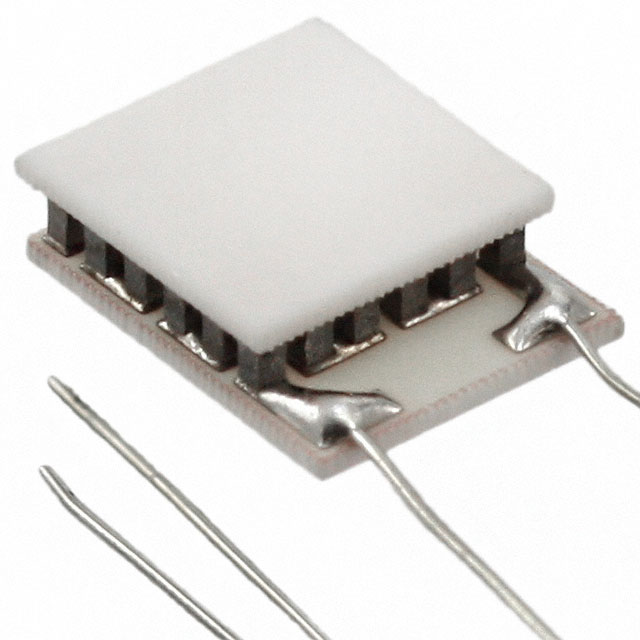

PELTIER OT16,18,F2,0606,GG,W2.25

Part	Voltage - Max [Max]	Resistance	Qmax @ Th	Number of Stages	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature	Current - Max [Max]	Features	Delta Tmax @ Th	Height [z]
Laird Thermal Systems, Inc. 430860-506	2 V	1.17 Ohms	2 W	1	6 mm	7.6 mm	80 °C	1.6 A	Lead Wires Non-Sealed	67 °C
Laird Thermal Systems, Inc. 430860-505	2 V	1.17 Ohms	2 W	1	6 mm	7.6 mm	80 °C	1.6 A	Lead Wires Non-Sealed	67 °C	2.01 mm
