TL2205 Series

Manufacturer: E-Switch

Catalog

SWITCH PUSH DPDT 0.1A 30V

Part	Mechanical Life	Type	Mounting Type	Illumination Type, Color	Illumination Voltage (Nominal)	Actuator Type	Switch Function	Actuator Marking	Circuit	Current Rating (Amps)	Termination Style	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Color - Actuator/Cap
E-Switch TL2205OACPBA	10000 Steps	Illuminated Standard	Through Hole	Blue LED	3.5 VDC	Button Oval	On-Mom	No Marking	DPDT	100 mA	PC Pin	30 V	-20 ░C	70 °C

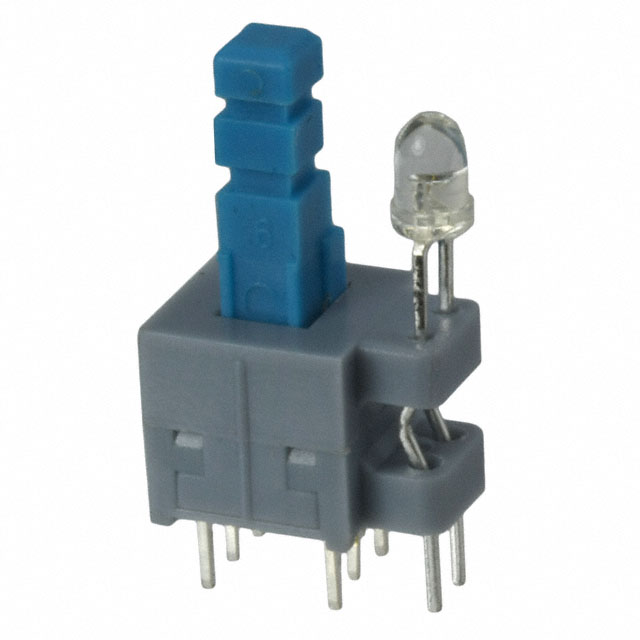

E-Switch TL2205OABPGB	10000 Steps	Illuminated Standard	Through Hole	Green LED	1.7 VDC	Button Oval	On-Mom	No Marking	DPDT	100 mA	PC Pin	30 V	-20 ░C	70 °C	Black
E-Switch TL2205EEBPGA	10000 Steps	Illuminated Standard	Through Hole	Green LED	1.7 VDC	Button Oval	On-On	No Marking	DPDT	100 mA	PC Pin	30 V	-20 ░C	70 °C

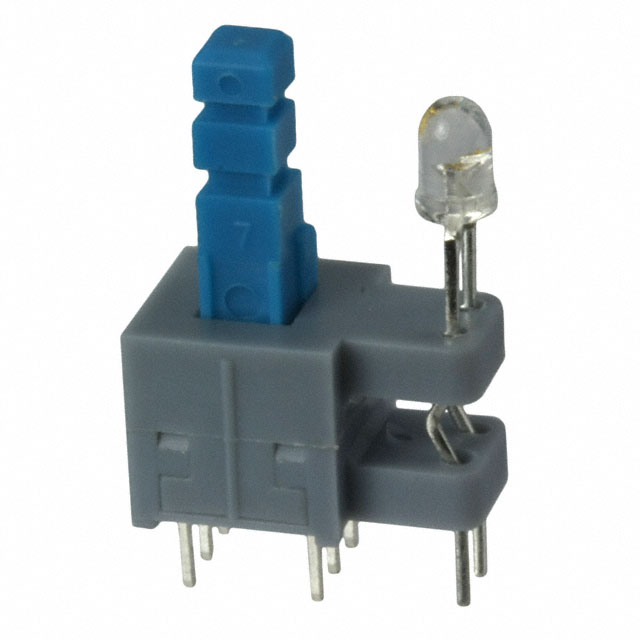

E-Switch TL2205OABPBA	10000 Steps	Illuminated Standard	Through Hole	Blue LED	3.5 VDC	Button Oval	On-Mom	No Marking	DPDT	100 mA	PC Pin	30 V	-20 ░C	70 °C

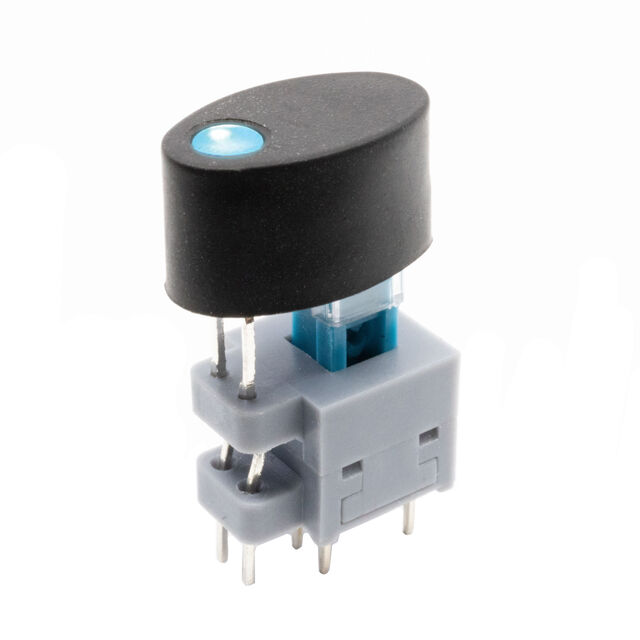

E-Switch TL2205OABPBB	10000 Steps	Illuminated Standard	Through Hole	Blue LED	3.5 VDC	Button Oval	On-Mom	No Marking	DPDT	100 mA	PC Pin	30 V	-20 ░C	70 °C	Black
E-Switch TL2205EEBPBB	10000 Steps	Illuminated Standard	Through Hole	Blue LED	3.5 VDC	Button Oval	On-On	No Marking	DPDT	100 mA	PC Pin	30 V	-20 ░C	70 °C	Black

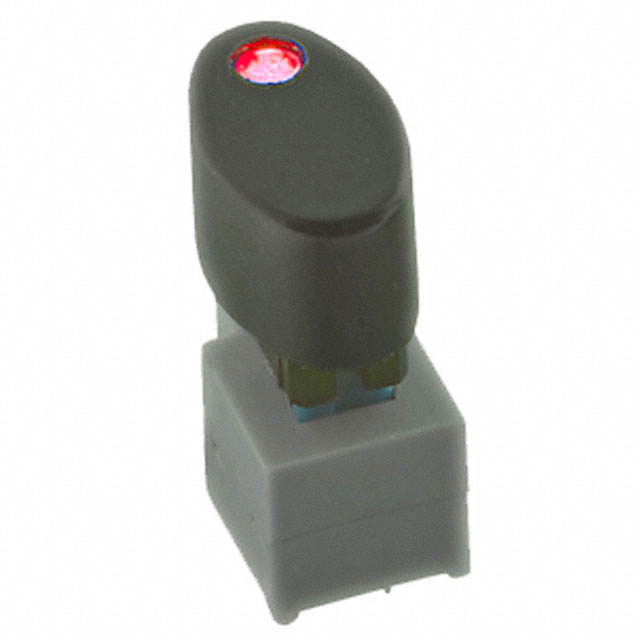

E-Switch TL2205EEBPRA	10000 Steps	Illuminated Standard	Through Hole	LED Red	1.7 VDC	Button Oval	On-On	No Marking	DPDT	100 mA	PC Pin	30 V	-20 ░C	70 °C
E-Switch TL2205OABPRB	10000 Steps	Illuminated Standard	Through Hole	LED Red	1.7 VDC	Button Oval	On-Mom	No Marking	DPDT	100 mA	PC Pin	30 V	-20 ░C	70 °C	Black
E-Switch TL2205EECPBA	10000 Steps	Illuminated Standard	Through Hole	Blue LED	3.5 VDC	Button Oval	On-On	No Marking	DPDT	100 mA	PC Pin	30 V	-20 ░C	70 °C
E-Switch TL2205EEBPYB	10000 Steps	Illuminated Standard	Through Hole	LED Yellow	1.7 VDC	Button Oval	On-On		DPDT	100 mA	PC Pin	30 V	-20 ░C	70 °C
