CPDA10 Series

Catalog

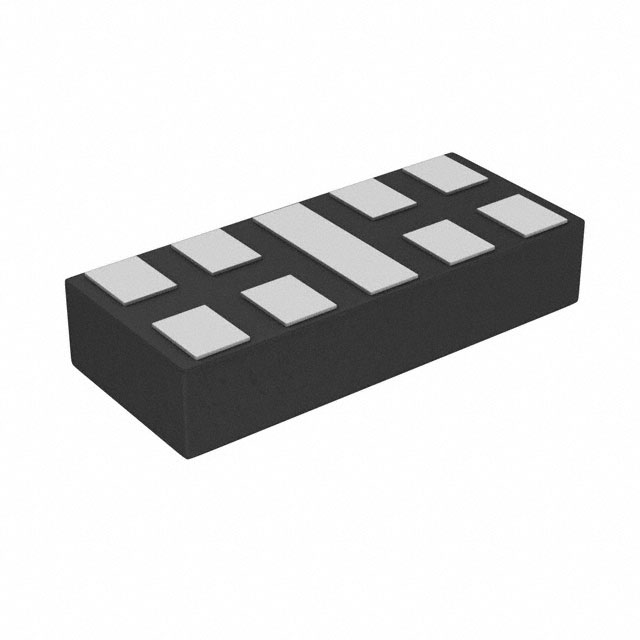

TVS DIODE 5VWM 12VC 10DFN

Part	Package / Case	Voltage - Breakdown (Min) [Min]	Bidirectional Channels	Mounting Type	Type	Voltage - Clamping (Max) @ Ipp	Operating Temperature [Max]	Operating Temperature [Min]	Current - Peak Pulse (10/1000µs)	Voltage - Reverse Standoff (Typ)	Applications	Capacitance @ Frequency	Supplier Device Package	Power - Peak Pulse	Unidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp [Max]
Comchip Technology CPDA10R5V0SP-HF	10-UFDFN	6 V	4	Surface Mount	Zener	12 V	125 °C	-55 °C	1 A	5 V	General Purpose	0.15 pF	10-DFN (2.5x1)	60 W
Comchip Technology CPDA10R5V0P-HF	10-UFDFN	6 V	4	Surface Mount	Zener	13 V	125 °C	-55 °C	2 A	5 V	General Purpose	0.25 pF	10-DFN (2.5x1)	60 W
Comchip Technology CPDA10R3V3U-HF	10-UFDFN	4 V		Surface Mount	Steering (Rail to Rail)		125 °C	-55 ░C	4 A	3.3 V	General Purpose	0.4 pF		39.2 W	4	9.8 V
Comchip Technology CPDA10R5V0U-HF	10-UFDFN Exposed Pad	6 V		Surface Mount	Steering (Rail to Rail)	13.5 V	125 °C	-55 °C	4 A	5 V	General Purpose	0.4 pF		100 W	4
