TN6719 Series
Manufacturer: ON Semiconductor
Beta
⌘K

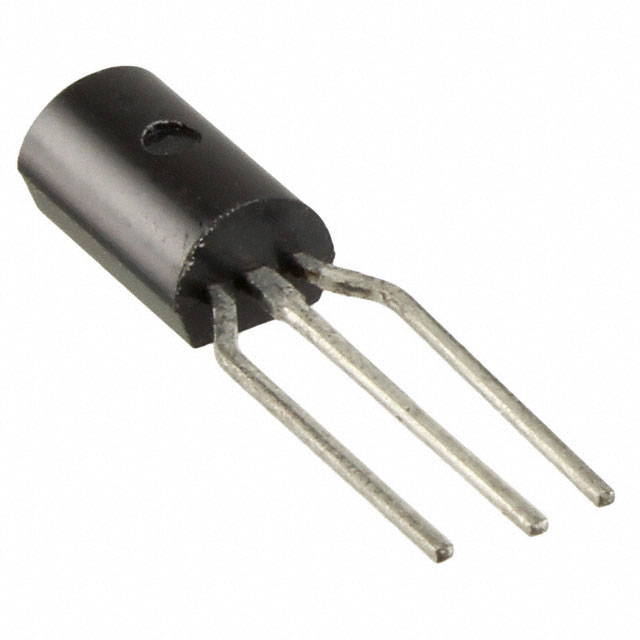

TRANS NPN 300V 0.2A TO226-3
| Part | Supplier Device Package | Vce Saturation (Max) @ Ib, Ic | Transistor Type | Current - Collector Cutoff (Max) [Max] | DC Current Gain (hFE) (Min) @ Ic, Vce [Min] | Power - Max [Max] | Current - Collector (Ic) (Max) [Max] | Mounting Type | Voltage - Collector Emitter Breakdown (Max) | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ON Semiconductor | TO-226-3 | 750 mV | NPN | 100 nA | 40 | 1 W | 200 mA | Through Hole | 300 V | TO-226-3 TO-92-3 | -55 °C | 150 °C |
