QFR0824 Series
Manufacturer: Delta Electronics
Beta
⌘K

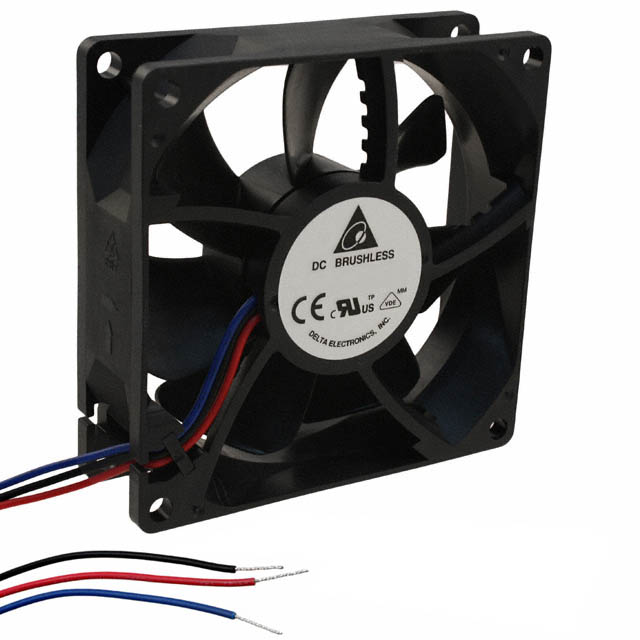

FAN AXIAL 80X25.4MM 24VDC WIRE
| Part | Material - Frame | Voltage Range [Max] | Voltage Range [Min] | Current Rating (Amps) | Lifetime @ Temp. | Material - Blade | Air Flow | Air Flow | Fan Type | Termination | Static Pressure | Static Pressure | Bearing Type | RPM | Voltage - Rated | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Size / Dimension [z] | Size / Dimension [x] | Features | Width [y] | Noise | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Plastic | 27.6 VDC | 14 | 0.17 A | 40 °C 50000 Hrs | Plastic | 1.53 mł/min | 54.6 CFM | Tubeaxial | 3 Wire Leads | 0.331 in H2O | 82.4 Pa | Ball | 4300 RPM | 24 VDC | 70 °C | -10 °C | CE cURus VDE | 80 mm | 80 mm | Locked Rotor Protection Speed Sensor (Tach) | 25.4 mm | 41.2 dB(A) | 0.195 lb | 88.45 g |
