630-17W Series
Manufacturer: EDAC Inc.
Beta
⌘K

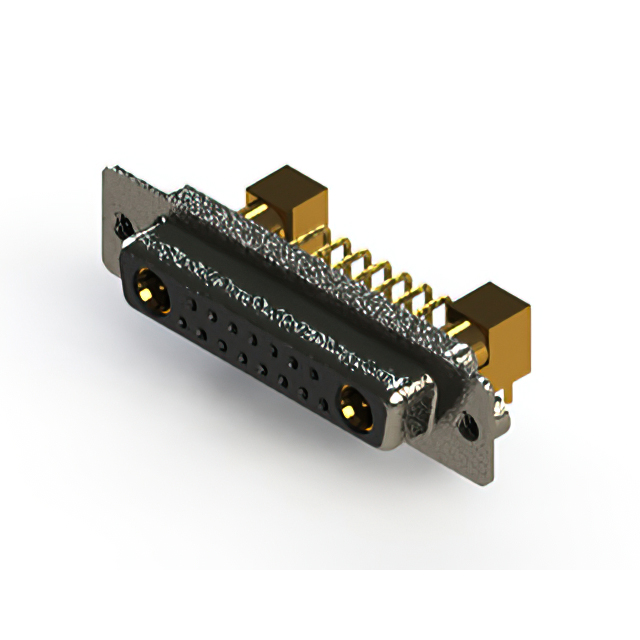

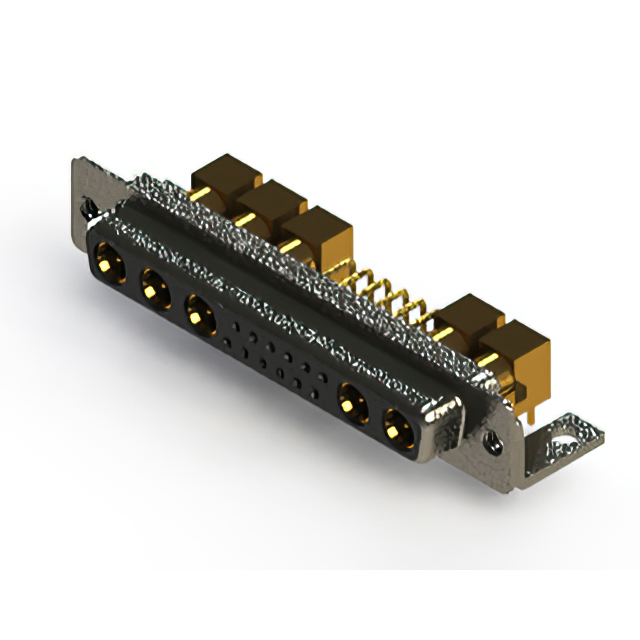

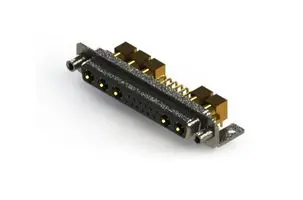

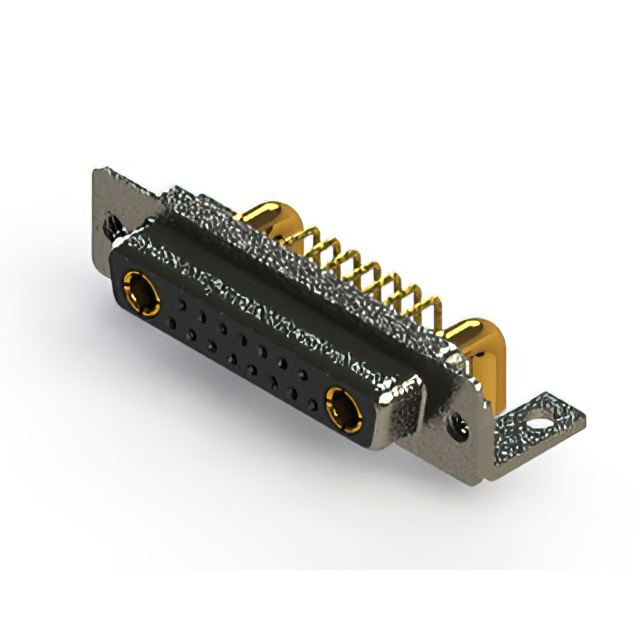

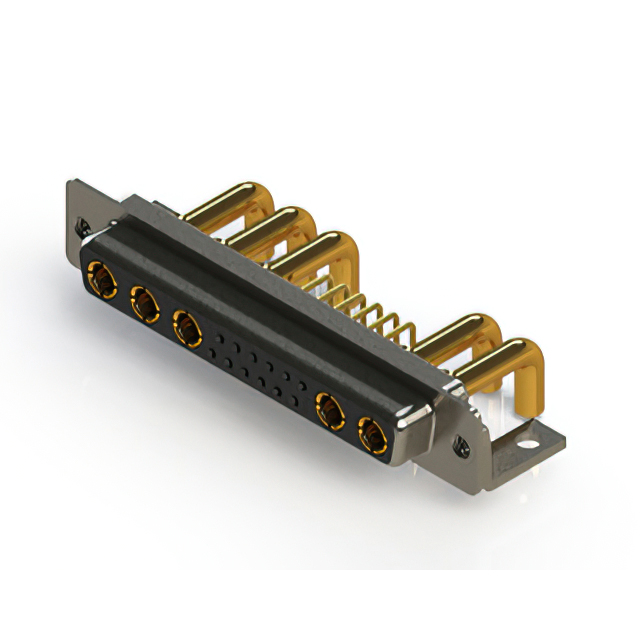

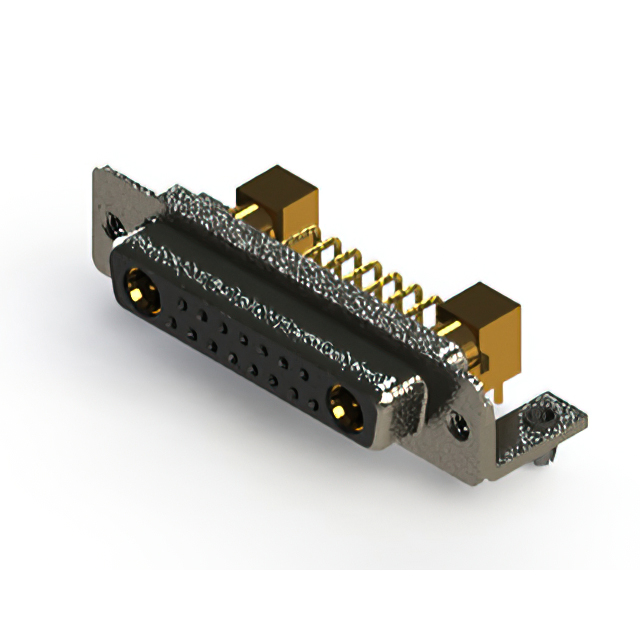

D-SUB MIXED CONTACT CONNECTORS RIGHT-ANGLE POWER COMBO D-SUB CONNECTOR
| Part | Contact Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Voltage Rating | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Connector Type | Current Rating (Amps) | Contact Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Shell Size, Connector Layout [custom] | Backset Spacing | Backset Spacing | Connector Style | Mounting Type | Number of Positions | Number of Rows [custom] | Features | Termination | Contact Finish | Flange Feature | Flange Feature | Current Rating (Amps) | Shell Material, Finish | Contact Finish Thickness | Number of Positions [custom] | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Copper Alloy | Black | -55 C | 125 °C | Polyester Thermoplastic | 125 VDC | 30 Áin | 0.76 Ám | UL94 V-0 | Receptacle Female Sockets | 20A 5A | Signal and Power | B DB | 17W2 | 3 | 9.4 mm | 0.37 in | Combo D-Sub | Right Angle Through Hole | 17 | 2 | Board Lock Mounting Brackets | Solder | Gold | M3 | ||||||
 EDAC Inc. | Copper Alloy | Black | -55 C | 125 °C | Polyester Thermoplastic | 125 VDC | 30 Áin | 0.76 Ám | UL94 V-0 | Receptacle Female Sockets | Signal and Power | B DB | 17W2 | 3 | 9.4 mm | 0.37 in | Combo D-Sub | Right Angle Through Hole | 17 | 2 | Mounting Brackets | Solder | Gold | Housing/Shell | 4-40 | 5 A 40 A | |||||
 EDAC Inc. | Copper Alloy | Black | -55 C | 125 °C | Polyester Thermoplastic | 125 VDC | 30 Áin | 0.76 Ám | UL94 V-0 | Receptacle Female Sockets | Signal and Power | B DB | 17W2 | 3 | 9.4 mm | 0.37 in | Combo D-Sub | Right Angle Through Hole | 17 | 2 | Solder | Gold | Housing/Shell | 4-40 | 5 A 30 A | Nickel Plated Steel | |||||
 EDAC Inc. | Copper Alloy | Black | -55 C | 125 °C | Polyester Thermoplastic | 125 VDC | UL94 V-0 | Receptacle Female Sockets | Coax Signal | B DB | 17W2 | 3 | 9.4 mm | 0.37 in | Combo D-Sub | Right Angle Through Hole | 17 | 2 | Board Lock Mounting Brackets | Solder | Gold | Housing/Shell | 4-40 | Flash | 15 Positions | 2 | |||||
 EDAC Inc. | Copper Alloy | Black | -55 C | 125 °C | Polyester Thermoplastic | 125 VDC | UL94 V-0 | Receptacle Female Sockets | Coax Signal | B DB | 17W2 | 3 | 9.4 mm | 0.37 in | Combo D-Sub | Right Angle Through Hole | 17 | 2 | Solder | Gold | Housing/Shell | 4-40 | Nickel Plated Steel | Flash | 15 Positions | 2 | |||||
 EDAC Inc. | Copper Alloy | Black | -55 C | 125 °C | Polyester Thermoplastic | 125 VDC | 30 Áin | 0.76 Ám | UL94 V-0 | Receptacle Female Sockets | Signal and Power | B DB | 17W2 | 3 | 9.4 mm | 0.37 in | Combo D-Sub | Right Angle Through Hole | 17 | 2 | Board Lock Mounting Brackets | Solder | Gold | M3 | 5 A 30 A | ||||||
 EDAC Inc. | Copper Alloy | Black | -55 C | 125 °C | Polyester Thermoplastic | 125 VDC | UL94 V-0 | Receptacle Female Sockets | Coax Signal | B DB | 17W2 | 3 | 9.4 mm | 0.37 in | Combo D-Sub | Right Angle Through Hole | 17 | 2 | Mounting Brackets | Solder | Gold | Housing/Shell (M3) | Flash | 15 Positions | 2 | ||||||
 EDAC Inc. | Copper Alloy | Black | -55 C | 125 °C | Polyester Thermoplastic | 125 VDC | UL94 V-0 | Receptacle Female Sockets | Signal and Power | B DB | 17W2 | 3 | 9.4 mm | 0.37 in | Combo D-Sub | Right Angle Through Hole | 17 | 2 | Mounting Brackets | Solder | Gold | Housing/Shell (M3) | 5 A 40 A | Nickel Plated Steel | Flash | ||||||
 EDAC Inc. | Copper Alloy | Black | -55 C | 125 °C | Polyester Thermoplastic | 125 VDC | 30 Áin | 0.76 Ám | UL94 V-0 | Receptacle Female Sockets | Coax Signal | B DB | 17W2 | 3 | 9.4 mm | 0.37 in | Combo D-Sub | Right Angle Through Hole | 17 | 2 | Solder | Gold | Housing/Shell | 4-40 | 15 Positions | 2 | |||||
 EDAC Inc. | Copper Alloy | Black | -55 C | 125 °C | Polyester Thermoplastic | 125 VDC | 30 Áin | 0.76 Ám | UL94 V-0 | Receptacle Female Sockets | 20A 5A | Signal and Power | B DB | 17W2 | 3 | 9.4 mm | 0.37 in | Combo D-Sub | Right Angle Through Hole | 17 | 2 | Mounting Brackets | Solder | Gold | M3 | Nickel Plated Steel |
