SWH15-E Series
Manufacturer: CUI Inc.
Beta
⌘K

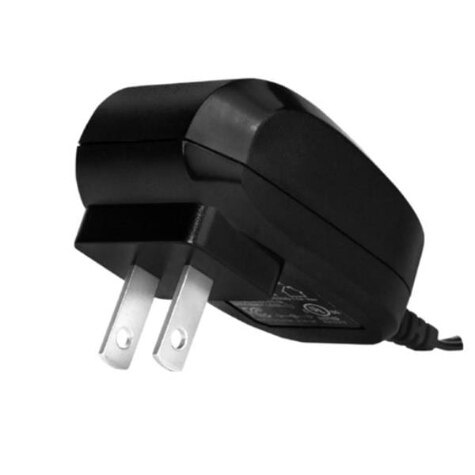

WALL MOUNT AC ADAPTERS AC-DC, 12 VDC, 1 A, SW, WALL-PLUG, NA, STRIPPED AND TINNED, LEVEL VI, BLACK
| Part | Form | Efficiency | Voltage - Input [Max] | Voltage - Input [Min] | No Load Power Consumption | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Cord Length | Cord Length | Output Connector | Applications | Voltage - Output | Input Type | Power (Watts) | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Approval Agency | Input Connector | Region Utilized | Output Connector [diameter] | Output Connector [x] | Standard Number | Polarization | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | Wall Mount | Level VI | 264 VAC | 90 VAC | 100 mW | 1 A | 40 °C | 0 °C | 70.9 " | 1.8 m | Stripped Tinned Wire Leads | ITE (Commercial) | 12 V | Fixed Blade | 12 W | 1.56 " | 1.31 " | 62 mm | 39.7 mm | 33.2 mm | 2.44 " | cULus FCC | NEMA 1-15P | North America | |||||
 CUI Inc. | Wall Mount | 264 VAC | 90 VAC | 100 mW | 2 A | 40 °C | 0 °C | 70.9 " | 1.8 m | Barrel Plug | Household Appliances ITE (Commercial) | 5 V | Fixed Blade | 10 W | 1.56 " | 1.79 in | 62.1 mm | 39.7 mm | 45.4 mm | 2.44 " | CE | KSC 8305 | Europe | 2.1 mm 5.5 mm | 9.5 mm | 60335-1 | Positive Center | 78.7 % | |
 CUI Inc. | Wall Mount | 264 VAC | 90 VAC | 100 mW | 600 mA | 40 °C | 0 °C | 70.9 " | 1.8 m | Stripped Tinned Wire Leads | Household Appliances ITE (Commercial) | 24 V | Fixed Blade | 14 W | 1.56 " | 1.79 in | 62.1 mm | 39.7 mm | 45.4 mm | 2.44 " | CE | KSC 8305 | Europe | 60335-1 | 83.9 % | ||||
 CUI Inc. | Wall Mount | Level VI | 264 VAC | 90 VAC | 100 mW | 3 A | 40 °C | 0 °C | 70.9 " | 1.8 m | Barrel Plug | ITE (Commercial) | 5 V | Fixed Blade | 15 W | 1.56 " | 1.31 " | 62 mm | 39.7 mm | 33.2 mm | 2.44 " | cULus FCC | NEMA 1-15P | North America | 2.1 mm 5.5 mm | 9.5 mm | Positive Center | ||
CUI Inc. | Wall Mount | 264 VAC | 90 VAC | 100 mW | 1 A | 40 °C | 0 °C | 70.9 " | 1.8 m | Barrel Plug | Household Appliances ITE (Commercial) | 12 V | Fixed Blade | 12 W | 1.56 " | 1.79 in | 62.1 mm | 39.7 mm | 45.4 mm | 2.44 " | CE | KSC 8305 | Europe | 2.5 mm 5.5 mm | 9.5 mm | 60335-1 | Positive Center | 83 % | |
CUI Inc. | Wall Mount | 264 VAC | 90 VAC | 100 mW | 1 A | 40 °C | 0 °C | 70.9 " | 1.8 m | Barrel Plug | Household Appliances ITE (Commercial) | 12 V | Fixed Blade | 12 W | 1.56 " | 1.79 in | 62.1 mm | 39.7 mm | 45.4 mm | 2.44 " | CE | KSC 8305 | Europe | 2.1 mm 5.5 mm | 9.5 mm | 60335-1 | Positive Center | 83 % |
