TUSB1042I Series

10-Gbps USB Type-C 2:1 linear redriver switch

Catalog

10-Gbps USB Type-C 2:1 linear redriver switch

Part	Supplied Contents	Type	Utilized IC / Part	Function	Signal Conditioning	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Applications	Data Rate (Max)	Package / Case	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]

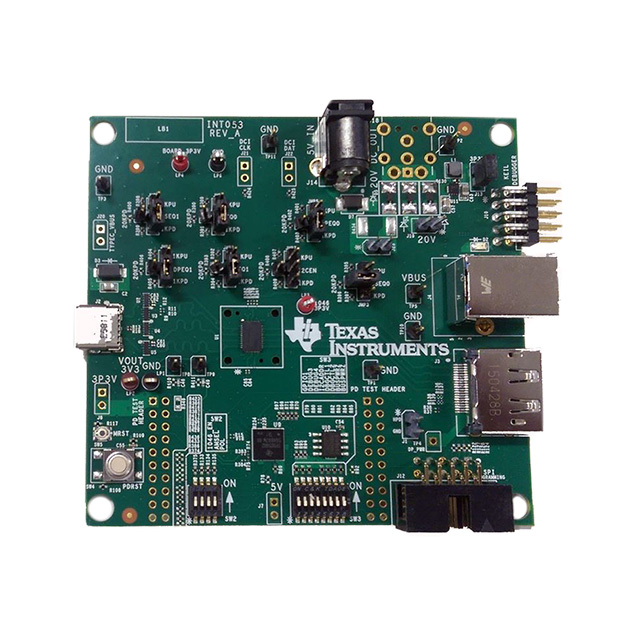

Texas Instruments TUSB1042EVM	Board(s)	Interface	TUSB1042	USB Type-C®
Texas Instruments TUSB1042IRNQT		ReDriver			Input Equalization	Surface Mount	3.6 V	3 V	USB	10 Gbps	40-WFQFN Exposed Pad	40-WQFN (6x4)	85 °C	-40 °C
Texas Instruments TUSB1042IRNQR		ReDriver			Input Equalization	Surface Mount	3.6 V	3 V	USB	10 Gbps	40-WFQFN Exposed Pad	40-WQFN (6x4)	85 °C	-40 °C

Catalog

10-Gbps USB Type-C 2:1 linear redriver switch

Key Features

• USB Type-C™ 2:1 redriver switchUSB 3.1 Gen 1/Gen 2 up to 10 GbpsUltra-low-power architectureLinear redriver with up to 14 dB equalizationAutomatic LFPS de-emphasis control to meet USB 3.1 certification requirementsConfiguration through GPIO or I2CIntel proprietary DCI capability on USB Type-C for closed chassis debuggingHot-plug capableIndustrial temperature range: -40ºC to 85ºC4 mm x 6 mm, 0.4 mm pitch WQFN packageUSB Type-C™ 2:1 redriver switchUSB 3.1 Gen 1/Gen 2 up to 10 GbpsUltra-low-power architectureLinear redriver with up to 14 dB equalizationAutomatic LFPS de-emphasis control to meet USB 3.1 certification requirementsConfiguration through GPIO or I2CIntel proprietary DCI capability on USB Type-C for closed chassis debuggingHot-plug capableIndustrial temperature range: -40ºC to 85ºC4 mm x 6 mm, 0.4 mm pitch WQFN package

Description

The TUSB1042I is a redriving switch supporting USB 3.1 data rates up to 10 Gbps. The TUSB1042I provides several levels of receive linear equalization to compensate for inter-symbol interference (ISI) due to cable and board trace loss. The device operates on a single 3.3 V supply and comes in the industrial temperature range. The TUSB1042I is a redriving switch supporting USB 3.1 data rates up to 10 Gbps. The TUSB1042I provides several levels of receive linear equalization to compensate for inter-symbol interference (ISI) due to cable and board trace loss. The device operates on a single 3.3 V supply and comes in the industrial temperature range.
