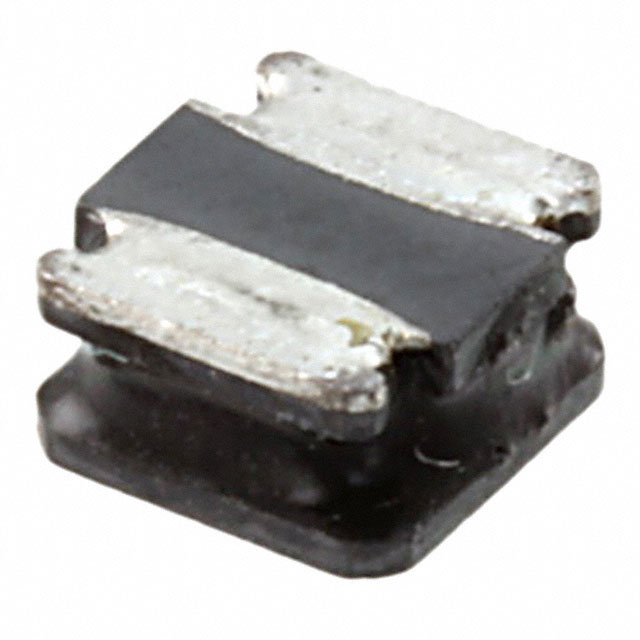

SRN4026 Series

Catalog

POWER INDUCTOR (SMD), 100 ΜH, 300 MA, SEMISHIELDED, 300 MA, SRN4026 SERIES

Part	Mounting Type	Package / Case	Type	Inductance	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current - Saturation (Isat)	Tolerance	Frequency - Self Resonant	Inductance Frequency - Test	Q @ Freq	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Shielding	Material - Core	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. SRN4026-101M	Surface Mount	Nonstandard	Drum Core Wirewound	100 µH	0.3 A	125 °C	-40 C	0.157 "	4 mm	0.157 in	4 mm	300 mA	20 %	7 MHz	100 kHz	30 796 kHz	1.2 Ohm	0.098 in	2.5 mm	Shielded	Ferrite
Bourns Inc. SRN4026-330M	Surface Mount	Nonstandard	Drum Core Wirewound	33 µH	0.5 A	125 °C	-40 C	0.157 "	4 mm	0.157 in	4 mm	500 mA	20 %	13 MHz	100 kHz	2.52 MHz 16	366 mOhm	0.098 in	2.5 mm	Shielded	Ferrite
Bourns Inc. SRN4026-151M	Surface Mount	Nonstandard	Drum Core Wirewound	150 µH	0.22 A	125 °C	-40 C	0.157 "	4 mm	0.157 in	4 mm	220 mA	20 %	6 MHz	100 kHz	30 796 kHz	1.92 Ohm	0.098 in	2.5 mm	Shielded	Ferrite
Bourns Inc. SRN4026-680M	Surface Mount	Nonstandard	Drum Core Wirewound	68 µH	350 mA	125 °C	-40 C	0.157 "	4 mm	0.157 in	4 mm	350 mA	20 %	9 MHz	100 kHz		852 mOhm	0.098 in	2.5 mm	Shielded	Ferrite	2.52 MHz	19
Bourns Inc. SRN4026-221M	Surface Mount	Nonstandard	Drum Core Wirewound	220 µH	0.2 A	125 °C	-40 C	0.157 "	4 mm	0.157 in	4 mm	200 mA	20 %	4 MHz	100 kHz	30 796 kHz	2.76 Ohm	0.098 in	2.5 mm	Shielded	Ferrite
