DE09S065 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

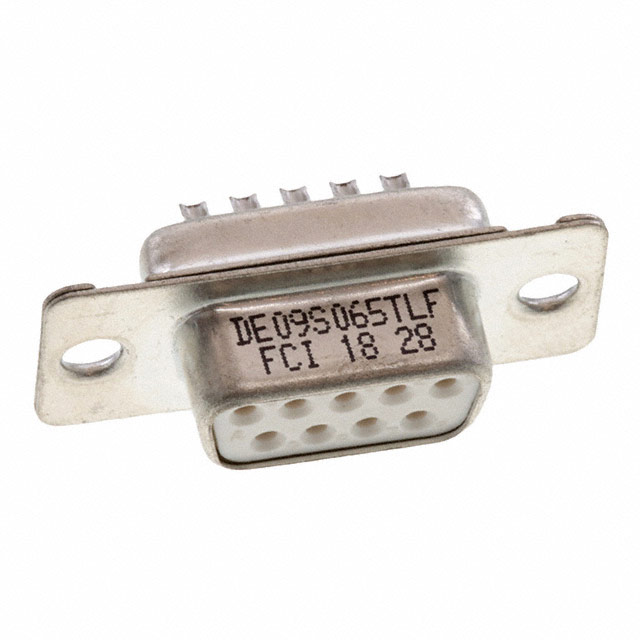

CONN D-SUB RCPT 9POS SOLDER CUP
| Part | Mounting Type | Contact Type | Contact Finish | Features | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Color | Current Rating (Amps) | Number of Rows | Connector Type | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Connector Style | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Dielectric Material | Voltage Rating | Contact Material | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Free Hanging (In-Line) | Signal | Gold GXT™ | Shielded | -55 °C | 125 °C | Cable Side | Natural | 5 A | 2 | Receptacle Female Sockets | 9 | 0.76 Ám | 30 Áin | D-Sub | DE E | 1 | Thermoplastic | 300 VDC | ||
 Amphenol ICC (FCI) | Free Hanging (In-Line) | Signal | Gold GXT™ | -55 °C | 125 °C | Housing/Shell (Unthreaded) | Natural | 5 A | 2 | Receptacle Female Sockets | 9 | 0.76 Ám | 30 Áin | D-Sub | DE E | 1 | Thermoplastic | 300 VDC | Copper Alloy | UL94 V-0 |
