09305240 Series
Manufacturer: HARTING
Beta
⌘K

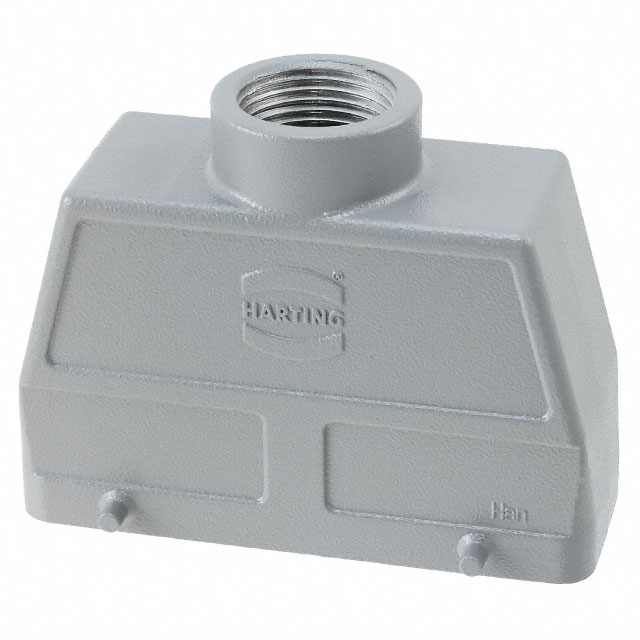

24B HOOD TOP ENTRY, SINGLE LEVER, HIGH CONSTRUCTION, NPT3/4"
| Part | Housing Material | Style | Lock Location | Ingress Protection | Thread Size | Operating Temperature [Max] | Operating Temperature [Min] | Housing Finish | Size | Connector Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Aluminum Die Cast | Top Entry | Locking Clip (1) on Base Bottom | IP65 - Dust Tight Water Resistant | NPT-3/4 | 125 °C | -40 C | Powder Coated | 24 B | Hood | 43 mm | 76 mm | 2.992 in | 120 mm | 4.724 in | 1.693 " | Gray |

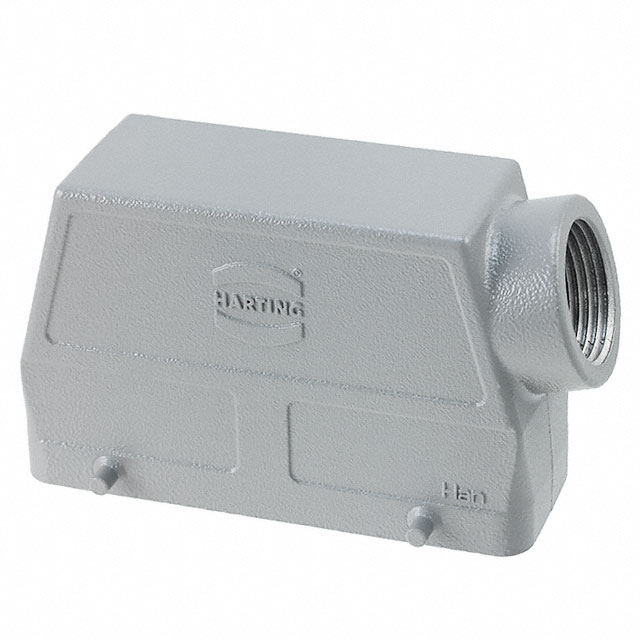

 HARTING | Aluminum Die Cast | Side Entry | Locking Clip (1) on Base Bottom | IP65 IP66 IP67 | NPT-3/4 | 125 °C | -40 C | Powder Coated | 24 B | Hood | 43 mm | 76 mm | 2.992 in | 120 mm | 4.724 in | 1.693 " | Gray |
 HARTING | Side Entry | Locking Clip (2) on Base Bottom | NPT-1 | 24 B | Hood | 43 mm | 76 mm | 2.992 in | 120 mm | 4.724 in | 1.693 " | ||||||

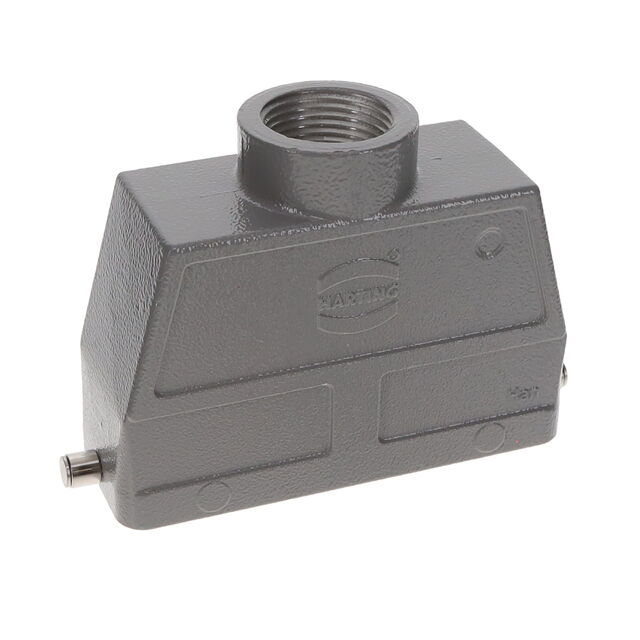

 HARTING | Aluminum Die Cast | Top Entry | Locking Clip (2) on Base Bottom | IP65 - Dust Tight Water Resistant | NPT-1 | 125 °C | -40 C | Powder Coated | 24 B | Hood | 43 mm | 76 mm | 2.992 in | 120 mm | 4.724 in | 1.693 " | Gray |
 HARTING | Aluminum Die Cast | Top Entry | Locking Clip (1) on Base Bottom | IP65 IP66 IP67 | NPT-1 | 125 °C | -40 C | Powder Coated | 24 B | Hood | 43 mm | 76 mm | 2.992 in | 120 mm | 4.724 in | 1.693 " | Gray |
 HARTING | Aluminum Die Cast | Top Entry | Locking Clip (2) on Base Bottom | IP65 IP66 IP67 | NPT-3/4 | 125 °C | -40 C | Powder Coated | 24 B | Hood | 43 mm | 76 mm | 2.992 in | 120 mm | 4.724 in | 1.693 " | Gray |
 HARTING | Aluminum Die Cast | Side Entry | Locking Clip (2) on Base Bottom | IP65 IP66 IP67 | NPT-3/4 | 125 °C | -40 C | Powder Coated | 24 B | Hood | 43 mm | 76 mm | 2.992 in | 120 mm | 4.724 in | 1.693 " | Gray |
 HARTING | Aluminum Die Cast | Side Entry | Locking Clip (2) on Hood | IP65 - Dust Tight Water Resistant | NPT-3/4 | 125 °C | -40 C | Powder Coated | 24 B | Hood | 43 mm | 76 mm | 2.992 in | 120 mm | 4.724 in | 1.693 " | Gray |
HARTING | Aluminum Die Cast | Side Entry | Locking Clip (1) on Base Bottom | IP65 - Dust Tight Water Resistant | NPT-3/4 | 125 °C | -40 C | Powder Coated | 24 B | Hood | 43 mm | 76 mm | 2.992 in | 120 mm | 4.724 in | 1.693 " | Gray |
