1401-0 Series

Catalog

CONN PIN RCPT .015-.025 SOLDER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Type	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Contact Material	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish

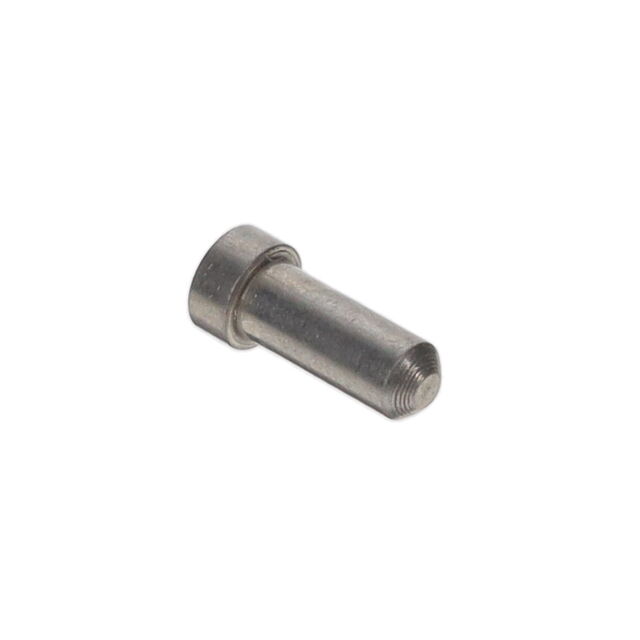

Mill-Max Manufacturing Corp. 1401-0-15-01-30-02-10-0	-55 C	125 °C	0.055 in	1.4 mm	No Tail	0.64 mm	0.015 "	0.025 in	0.38 mm	Beryllium Copper	Solder	0.072 "	1.83 mm	0.165 in	4.19 mm	2.54 µm	100 µin	Tin-Lead
Mill-Max Manufacturing Corp. 1401-0-15-01-30-27-10-0	-55 C	125 °C	0.055 in	1.4 mm	No Tail	0.64 mm	0.015 "	0.025 in	0.38 mm	Beryllium Copper	Solder	0.072 "	1.83 mm	0.165 in	4.19 mm	0.76 Ám	30 Áin	Gold
Mill-Max Manufacturing Corp. 1401-0-15-15-30-27-10-0	-55 C	125 °C	0.055 in	1.4 mm	No Tail	0.64 mm	0.015 "	0.025 in	0.38 mm	Beryllium Copper	Solder	0.072 "	1.83 mm	0.165 in	4.19 mm	0.76 Ám	30 Áin	Gold
