CF-CA-1 Series

Manufacturer: Nidec Components Corporation

Catalog

SWITCH TACTILE SPST-NO 0.05A 32V

Part	Termination Style	Operating Force	Contact Rating @ Voltage	Switch Travel	Switch Function	Illumination	Actuator Material	Circuit	Outline [y]	Outline [x]	Actuator Type	Actuator Length, Right Angle [x]	Actuator Orientation	Features	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Actuator Length, Right Angle

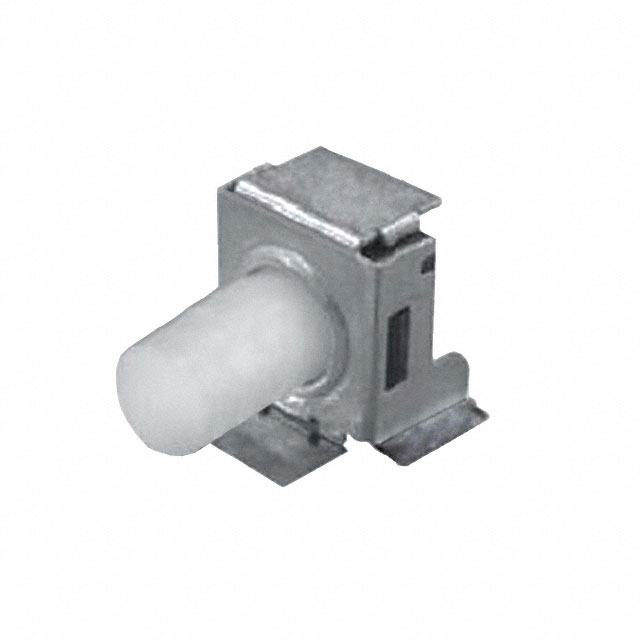

Nidec Components Corporation CF-CA-1CB4-P401T	SMD (SMT) Tab	305 gf	0.05 A	0.25 mm	Off-Mom	Non-Illuminated	Resin	SPST-NO	4.4 mm	7.6 mm	Standard	8.6 mm	Side Actuated	Washable	90 °C	-40 °C	Surface Mount Right Angle
Nidec Components Corporation CF-CA-1CB4-P112	SMD (SMT) Tab	305 gf	0.05 A	0.25 mm	Off-Mom	Non-Illuminated	Resin	SPST-NO	6.4 mm	7.6 mm	Standard		Side Actuated	Support Terminal	90 °C	-40 °C	Surface Mount Right Angle	5.7 mm

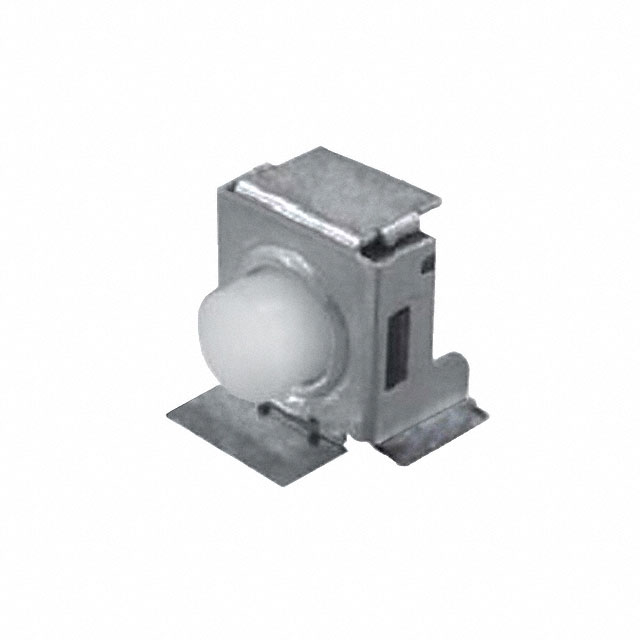

Nidec Components Corporation CF-CA-1CB4-P101T	SMD (SMT) Tab	305 gf	0.05 A	0.25 mm	Off-Mom	Non-Illuminated	Resin	SPST-NO	4.4 mm	7.6 mm	Standard		Side Actuated	Washable	90 °C	-40 °C	Surface Mount Right Angle	5.7 mm
Nidec Components Corporation CF-CA-1CB4-P412	SMD (SMT) Tab	305 gf	0.05 A	0.25 mm	Off-Mom	Non-Illuminated	Resin	SPST-NO	6.4 mm	7.6 mm	Standard	8.6 mm	Side Actuated	Support Terminal	90 °C	-40 °C	Surface Mount Right Angle
Nidec Components Corporation CF-CA-1CB4-P411	SMD (SMT) Tab	305 gf	0.05 A	0.25 mm	Off-Mom	Non-Illuminated	Resin	SPST-NO	6.4 mm	7.6 mm	Standard	8.6 mm	Side Actuated	Support Terminal	90 °C	-40 °C	Surface Mount Right Angle
Nidec Components Corporation CF-CA-1CB4-P411T	SMD (SMT) Tab	305 gf	0.05 A	0.25 mm	Off-Mom	Non-Illuminated	Resin	SPST-NO	6.4 mm	7.6 mm	Standard	8.6 mm	Side Actuated	Support Terminal	90 °C	-40 °C	Surface Mount Right Angle
Nidec Components Corporation CF-CA-1CB4-P401	SMD (SMT) Tab	305 gf	0.05 A	0.25 mm	Off-Mom	Non-Illuminated	Resin	SPST-NO	4.4 mm	7.6 mm	Standard	8.6 mm	Side Actuated	Washable	90 °C	-40 °C	Surface Mount Right Angle
Nidec Components Corporation CF-CA-1CB4-P211	SMD (SMT) Tab	305 gf	0.05 A	0.25 mm	Off-Mom	Non-Illuminated	Resin	SPST-NO	6.4 mm	7.6 mm	Standard		Side Actuated	Support Terminal	90 °C	-40 °C	Surface Mount Right Angle	7.4 mm
Nidec Components Corporation CF-CA-1CB4-P111	SMD (SMT) Tab	305 gf	0.05 A	0.25 mm	Off-Mom	Non-Illuminated	Resin	SPST-NO	6.4 mm	7.6 mm	Standard		Side Actuated	Support Terminal	90 °C	-40 °C	Surface Mount Right Angle	5.7 mm
Nidec Components Corporation CF-CA-1CB4-P212	SMD (SMT) Tab	305 gf	0.05 A	0.25 mm	Off-Mom	Non-Illuminated	Resin	SPST-NO	6.4 mm	7.6 mm	Standard		Side Actuated	Support Terminal	90 °C	-40 °C	Surface Mount Right Angle	7.4 mm
