F221L3/32 Series

Catalog

HEAT SHRINK LSZH 2:1 250'

Part	Type	Shrinkage Ratio	Shrink Temperature	Operating Temperature [Max]	Operating Temperature [Min]	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Length	Length	Shelf Life	Length [x]	Length [x]	Recovered Wall Thickness	Recovered Wall Thickness	Material	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Color	Shelf Life Start	Features

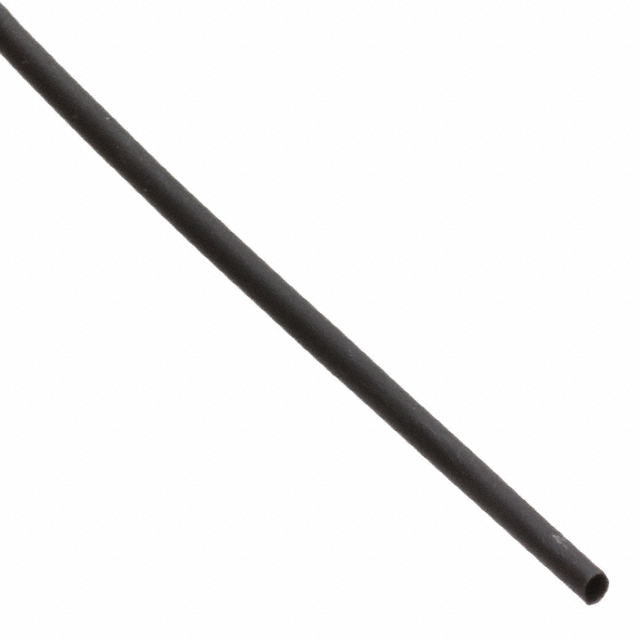

ALPHA WIRE F221L3/32 BK002	Tubing Flexible	2 to 1	100 °C	125 °C	-40 °C	1.17 mm	0.046 in	1.52 m 3.05 m 7.6 m 76.2 m	5 ' 10 ft 25 ft 3000 "	300 Months	30.5 m	100 ft	0.43 mm	0.017 in	Polyolefin (PO) Irradiated	0.093 in	2.36 mm	Black	Date of Manufacture	Flame Retardant Low Smoke
