MPQ8632 Series

Manufacturer: Monolithic Power Systems Inc.

Catalog

DC-DC SWITCHING SYNCHRONOUS BUCK REGULATOR, 4.5V-18V IN, 611MV TO 13V OUT, 10A, 1MHZ, QFN-16

Part	Voltage - Output (Max) [Max]	Topology	Mounting Type	Package / Case	Supplier Device Package	Number of Outputs	Frequency - Switching [Max]	Frequency - Switching [Min]	Output Type	Voltage - Input (Min) [Min]	Current - Output	Output Configuration	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Function	Voltage - Output (Min/Fixed)	Supplier Device Package [custom]

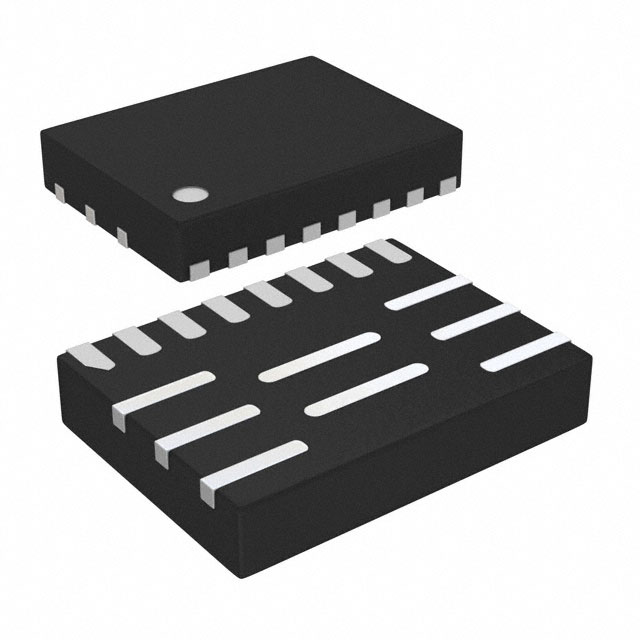

Monolithic Power Systems Inc. MPQ8632GLE-10-P	13 V	Buck	Surface Mount	16-PowerVFQFN	16-QFN (3x4)	1	1 MHz	200 kHz	Adjustable	4.5 V	10 A	Positive	18 V	-40 C	125 °C	Step-Down	0.611 V
Monolithic Power Systems Inc. MPQ8632GLE-4-Z	13 V	Buck	Surface Mount	16-PowerVFQFN	16-QFN (3x4)	1	1 MHz	200 kHz	Adjustable	4.5 V	4 A	Positive	18 V	-40 C	125 °C	Step-Down	0.611 V
Monolithic Power Systems Inc. MPQ8632GLE-4-P	13 V	Buck	Surface Mount	16-PowerVFQFN	16-QFN (3x4)	1	1 MHz	200 kHz	Adjustable	4.5 V	4 A	Positive	18 V	-40 C	125 °C	Step-Down	0.611 V
Monolithic Power Systems Inc. MPQ8632GL-12-Z	13 V	Buck	Surface Mount	13-VFQFN	13-QFN (3x4)	1	1 MHz	200 kHz	Adjustable	2.5 V	12 A	Positive	18 V	-40 C	125 °C	Step-Down	0.611 V
Monolithic Power Systems Inc. MPQ8632GL-8-P	13 V	Buck	Surface Mount	13-VFQFN	13-QFN (3x4)	1	1 MHz	200 kHz	Adjustable	2.5 V	8 A	Positive	18 V	-40 C	125 °C	Step-Down	0.611 V
Monolithic Power Systems Inc. MPQ8632GL-12-P	13 V	Buck	Surface Mount	13-VFQFN	13-QFN (3x4)	1	1 MHz	200 kHz	Adjustable	2.5 V	12 A	Positive	18 V	-40 C	125 °C	Step-Down	0.611 V

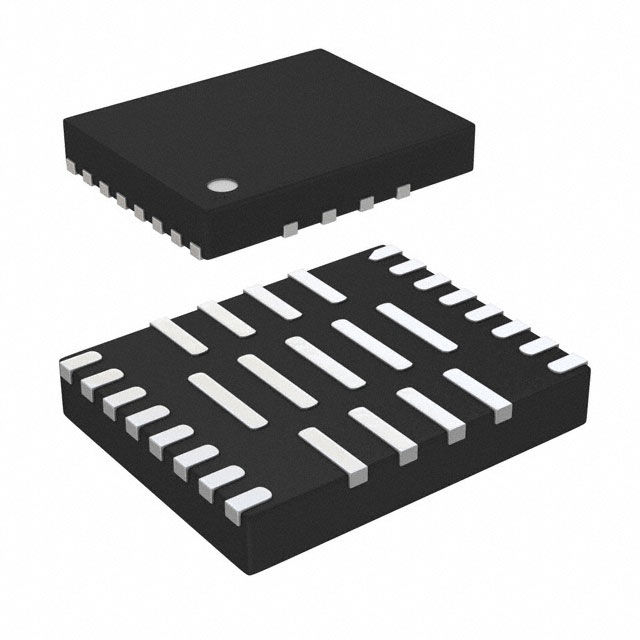

Monolithic Power Systems Inc. MPQ8632GVE-15-Z	13 V	Buck	Surface Mount	29-VFQFN Exposed Pad	29-QFN	1	1 MHz	200 kHz	Adjustable	4.5 V	15 A	Positive	18 V	-40 C	125 °C	Step-Down	0.611 V	5x4
Monolithic Power Systems Inc. MPQ8632GVE-20-Z	13 V	Buck	Surface Mount	29-VFQFN Exposed Pad	29-QFN	1	1 MHz	200 kHz	Adjustable	4.5 V	20 A	Positive	18 V	-40 C	125 °C	Step-Down	0.611 V	5x4
Monolithic Power Systems Inc. MPQ8632DGLE-12-P	13 V	Buck	Surface Mount	16-PowerVFQFN	16-QFN (3x4)	1	1 MHz	200 kHz	Adjustable	4.5 V	12 A	Positive	18 V	-40 C	125 °C	Step-Down	0.611 V
Monolithic Power Systems Inc. MPQ8632GLE-12-Z	13 V	Buck	Surface Mount	16-PowerVFQFN	16-QFN (3x4)	1	1 MHz	200 kHz	Adjustable	4.5 V	12 A	Positive	18 V	-40 C	125 °C	Step-Down	0.611 V
