BU-P35 Series
Manufacturer: Mueller Electric Co
Beta
⌘K

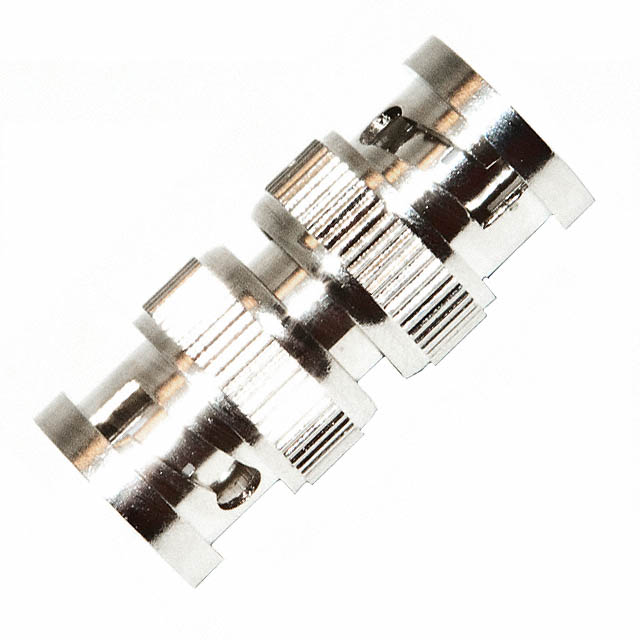

RF ADAPTER, BNC PLUG-PLUG, 50 OHM ROHS COMPLIANT: YES
| Part | Body Finish | Dielectric Material | Center Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Fastening Type | Adapter Series | Adapter Type | Impedance | Conversion Type | Convert From (Adapter End) | Mounting Type | Style | Center Gender | Convert To (Adapter End) | Center Contact Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mueller Electric Co | Nickel | Polytetrafluoroethylene (PTFE) | Beryllium Copper | 170 °C | -50 °C | Brass | Bayonet Lock | BNC to BNC | Plug to Plug | 50 Ohms | Same Series | BNC Plug Male Pin | Free Hanging (In-Line) | Straight | Male to Male | BNC Plug Male Pin | Gold |
 Mueller Electric Co | Nickel | Polytetrafluoroethylene (PTFE) | Beryllium Copper | 170 °C | -50 °C | Brass | Bayonet Lock | BNC to BNC | Plug to Jack | 50 Ohms | Same Series | BNC Plug Male Pin | Free Hanging (In-Line) Right Angle | Right Angle | BNC Jack Female Socket | Gold |
