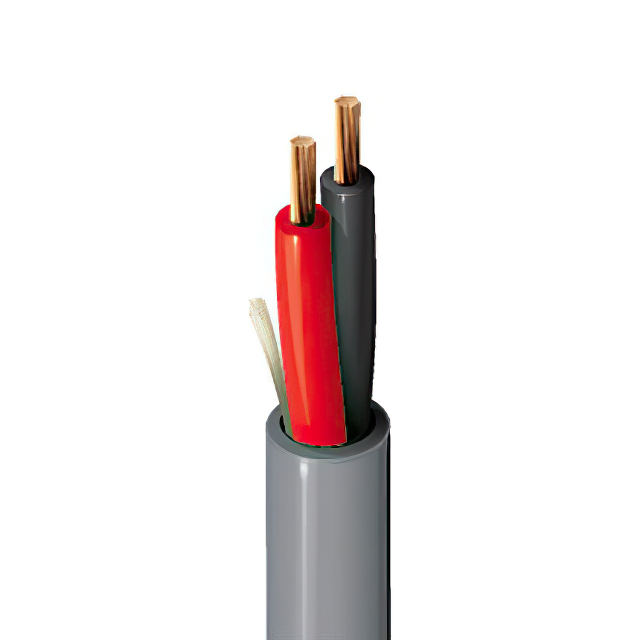

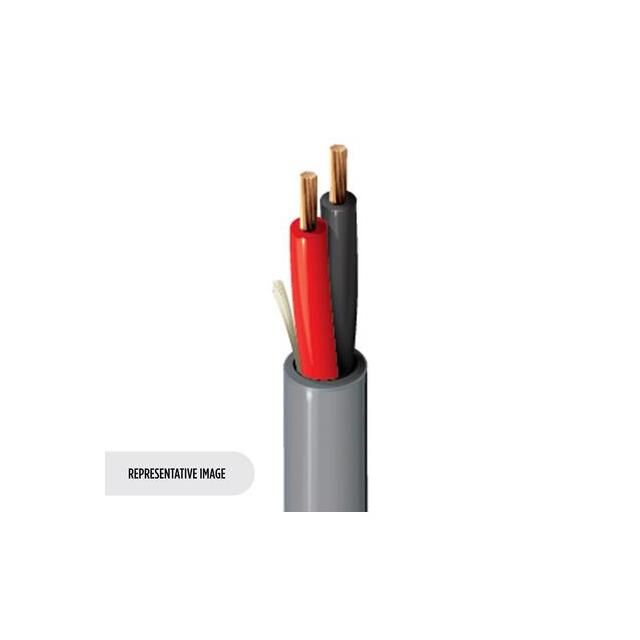

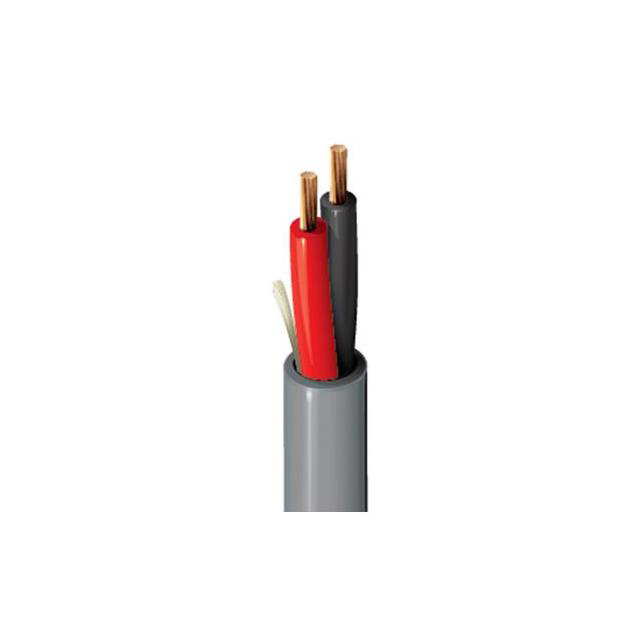

1307A Series
Manufacturer: Belden Inc.
Catalog
2 #16 PE FRPVC
| Part | Number of Conductors | Wire Gauge | Features | Jacket Color | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Material | Length | Length | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Voltage | Conductor Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 2 | 16 AWG | Direct Burial | Gray | 0.013 in | 0.33 mm | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | Copper Bare | 5.33 mm | 0.21 in | Speaker | Audio-Video Home | 65 | 34 AWG | Polyethylene (PE) | 300 VDC | |
 Belden Inc. | 2 | 16 AWG | Black | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | Copper Bare | 5.33 mm | 0.21 in | Speaker | 65 | 34 AWG | Polyolefin | PO | |||||
 Belden Inc. | 2 | 16 AWG | Direct Burial | White | 0.013 in | 0.33 mm | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | Copper Bare | 5.33 mm | 0.21 in | Speaker | Audio-Video Home | 65 | 34 AWG | Polyethylene (PE) | 300 VDC | |
Belden Inc. | 2 | 16 AWG | Direct Burial | Green | 0.013 in | 0.33 mm | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | Copper Bare | 5.33 mm | 0.21 in | Speaker | Audio-Video Home | 65 | 34 AWG | Polyethylene (PE) | 300 VDC | |
Belden Inc. | 2 | 16 AWG | Direct Burial | Black | 0.013 in | 0.33 mm | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Copper Bare | 5.33 mm | 0.21 in | Speaker | Audio-Video Home | 65 | 34 AWG | Polyethylene (PE) | 300 VDC | |
 Belden Inc. | 2 | 16 AWG | Direct Burial | Gray | 0.013 in | 0.33 mm | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | Copper Bare | 5.33 mm | 0.21 in | Speaker | Audio-Video Home | 65 | 34 AWG | Polyethylene (PE) | 300 VDC |
