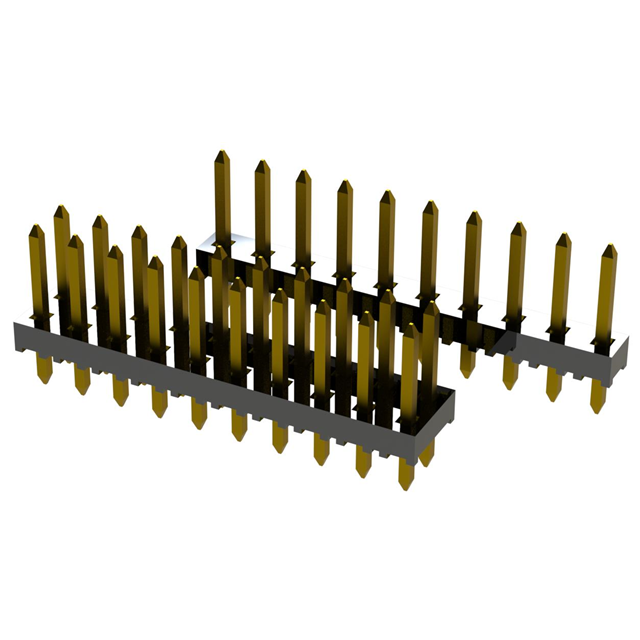

ULTSHC Series
Manufacturer: Major League Electronics
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
.100 HEADER
| Part | Fastening Type | Contact Shape | Insulation Color | Shrouding | Insulation Height | Overall Contact Length | Insulation Material | Termination | Style | Contact Type | Contact Material | Number of Rows | Connector Type | Contact Finish Thickness - Mating | Contact Finish - Mating | Contact Length - Mating | Current Rating | Mounting Type | Number of Positions | Pitch - Mating | Number of Positions Loaded | Contact Finish - Post | Contact Length - Post | Operating Temperature (Min) | Operating Temperature (Max) | Contact Finish Thickness - Post | Contact Finish Thickness - Post (string_set) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Major League Electronics | Push-Pull | Square | Black | Unshrouded | 0.06 in | 0.335 in | Nylon 6T Polyamide (PA6T) | Solder | Board | Male Pin | Phosphor Bronze | 1 | Header | Flash | Gold | 0.105 in | 3 A | Through Hole | 36 | 0.1 in | All | Gold | 0.17 in | -40 °C | 105 °C | Flash | Flash |
