TPS62823 Series

2.4-V to 5.5-V input, 3-A step-down converter with 1% accuracy in 1.5-mm x 2-mm VSON-HR package

Catalog

2.4-V to 5.5-V input, 3-A step-down converter with 1% accuracy in 1.5-mm x 2-mm VSON-HR package

Part	Regulator Topology	Outputs and Type	Outputs and Type	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output	Main Purpose	Voltage - Output	Utilized IC / Part	Supplied Contents	Board Type	Output Configuration	Voltage - Input (Max) [Max]	Frequency - Switching	Output Type	Number of Outputs	Voltage - Input (Min) [Min]	Supplier Device Package	Package / Case	Topology	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output (Max) [Max]	Function	Voltage - Output (Min/Fixed)	Mounting Type

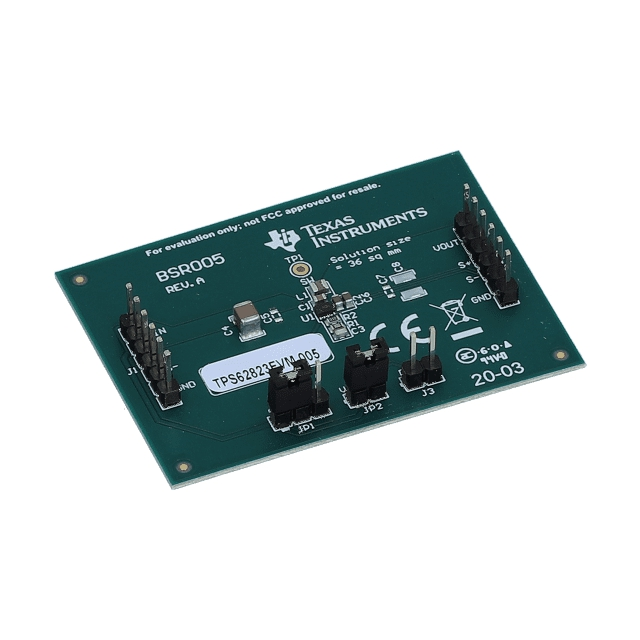

Texas Instruments TPS62823EVM-005	Buck	Non-Isolated	1	2.4 V	5.5 V	3 A	DC/DC Step Down	1.8 V	TPS62823	Board(s)	Fully Populated
Texas Instruments TPS62823DLCR						3 A						Positive	5.5 V	2.2 MHz	Adjustable	1	2.4 V	8-VSON-HR (2x1.5)	8-PowerVFDFN	Buck	-40 °C	125 ¯C	4 V	Step-Down	0.6 V	Surface Mount
Texas Instruments TPS62823DLCT						3 A						Positive	5.5 V	2.2 MHz	Adjustable	1	2.4 V	8-VSON-HR (2x1.5)	8-PowerVFDFN	Buck	-40 °C	125 ¯C	4 V	Step-Down	0.6 V	Surface Mount

Catalog

2.4-V to 5.5-V input, 3-A step-down converter with 1% accuracy in 1.5-mm x 2-mm VSON-HR package

Key Features

• DCS-Control™ topology26-mΩ/25-mΩ internal power switches (TPS62823)Up to 3-A output current (TPS62823)Very low quiescent current of 4 µASwitching frequency of typically 2.2 MHz1% feedback voltage accuracy (full temp. range)Enable (EN) and power good (PG)Adjustable output voltage from 0.6 V to 4 V100% duty-cycle modeInternal soft-start circuitrySeamless power save mode transitionUndervoltage lockoutActive output dischargeCycle-by-cycle current limitHICCUP short-circuit protectionOver temperature protectionCISPR11 class B compliantCreate a custom design using the TPS62822 with theWEBENCH® Power DesignerDCS-Control™ topology26-mΩ/25-mΩ internal power switches (TPS62823)Up to 3-A output current (TPS62823)Very low quiescent current of 4 µASwitching frequency of typically 2.2 MHz1% feedback voltage accuracy (full temp. range)Enable (EN) and power good (PG)Adjustable output voltage from 0.6 V to 4 V100% duty-cycle modeInternal soft-start circuitrySeamless power save mode transitionUndervoltage lockoutActive output dischargeCycle-by-cycle current limitHICCUP short-circuit protectionOver temperature protectionCISPR11 class B compliantCreate a custom design using the TPS62822 with theWEBENCH® Power Designer

Description

The TPS6282x is an all-purpose and easy to use synchronous step-down DC-DC converter with a very low quiescent current of only 4 µA. It supplies up to 3A output current (TPS62823) from a 2.4-V to 5.5-V input voltage. Based on the DCS-Control™ topology it provides a fast transient response. The internal reference allows to regulate the output voltage down to 0.6 V with a high feedback voltage accuracy of 1% over the junction temperature range of -40°C to 125°C. The 1-A, 2-A, 3-A scalable pin-to-pin and BOM-to-BOM compatible device family can be used with small 470-nH inductors. The TPS6282x include an automatically entered power save mode to maintain high efficiency down to very light loads. The device features a Power Good signal and an internal soft start circuit. It is able to operate in 100% mode. For fault protection, it incorporates a HICCUP current limit as well as a thermal shutdown. The TPS6282x are packaged in a 2 mm x 1.5 mm QFN-8 package. The TPS6282x is an all-purpose and easy to use synchronous step-down DC-DC converter with a very low quiescent current of only 4 µA. It supplies up to 3A output current (TPS62823) from a 2.4-V to 5.5-V input voltage. Based on the DCS-Control™ topology it provides a fast transient response. The internal reference allows to regulate the output voltage down to 0.6 V with a high feedback voltage accuracy of 1% over the junction temperature range of -40°C to 125°C. The 1-A, 2-A, 3-A scalable pin-to-pin and BOM-to-BOM compatible device family can be used with small 470-nH inductors. The TPS6282x include an automatically entered power save mode to maintain high efficiency down to very light loads. The device features a Power Good signal and an internal soft start circuit. It is able to operate in 100% mode. For fault protection, it incorporates a HICCUP current limit as well as a thermal shutdown. The TPS6282x are packaged in a 2 mm x 1.5 mm QFN-8 package.
