6392 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

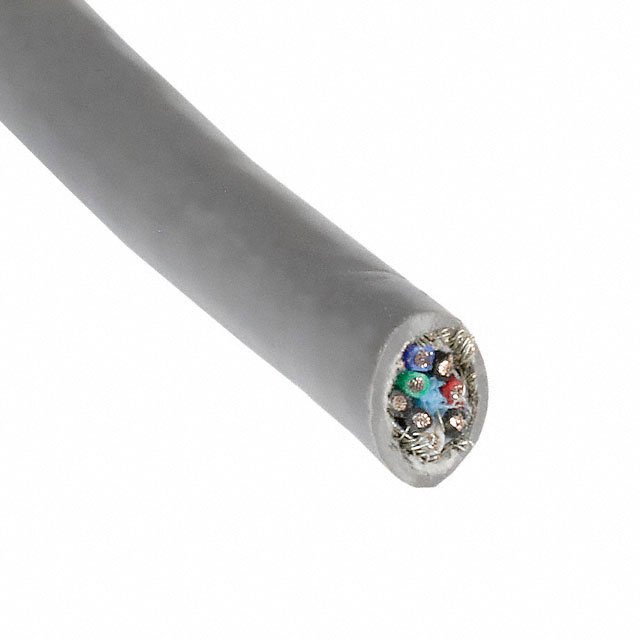

MULTI-PAIR 8CON 28AWG SLATE 500'
| Part | Shield Coverage | Shield Material | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Number of Conductors | Length | Length | Jacket (Insulation) Material | Ratings | Wire Gauge | Shield Type | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Conductor Insulation | Jacket Color | Features | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 90 % 100 % | Aluminum Copper Tinned | Multi-Pair | 0.035 in | 0.889 mm | Copper Tinned | 8 | 152.4 m | 500 ft | Poly-Vinyl Chloride (PVC) | UL Style 2960 | 28 AWG | Braid Foil | 7 | 36 AWG | 0.235 " | 5.97 mm | 300 VDC | Polyethylene (PE) | Slate | Drain Wire | ||
ALPHA WIRE | 90 % 100 % | Aluminum Copper Tinned | Multi-Pair | 0.035 in | 0.889 mm | Copper Tinned | 8 | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | UL Style 2960 | 28 AWG | Braid Foil | 7 | 36 AWG | 0.235 " | 5.97 mm | 300 VDC | Polyethylene (PE) | Slate | Drain Wire | ||
ALPHA WIRE | 90 % 100 % | Aluminum Copper Tinned | Multi-Pair | 0.035 in | 0.889 mm | Copper Tinned | 8 | Poly-Vinyl Chloride (PVC) | UL Style 2960 | 28 AWG | Braid Foil | 7 | 36 AWG | 0.235 " | 5.97 mm | 300 VDC | Polyethylene (PE) | Slate | Drain Wire | 100 ft | 30.5 m |
