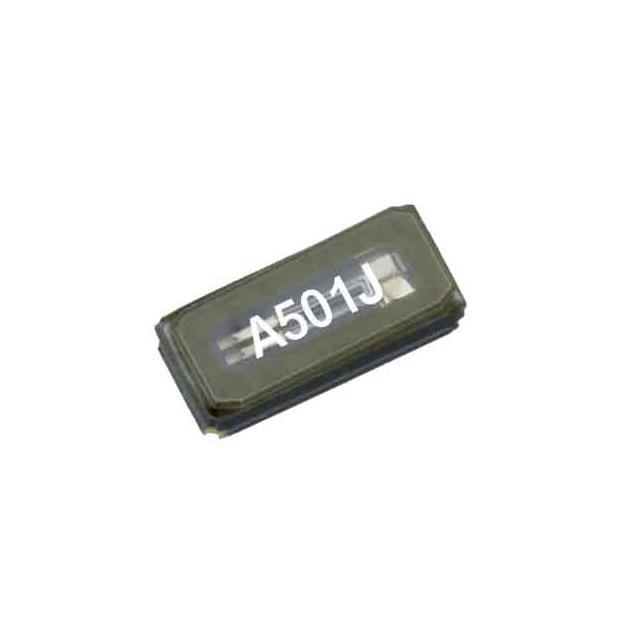

FC-135R Series

Manufacturer: EPSON

Catalog

FC-135R 32.7680KF-AG5: SMD XTL K

Part	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Mode	Load Capacitance	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Frequency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	ESR (Equivalent Series Resistance)	Package / Case	Mounting Type	Frequency Tolerance	Type
EPSON FC-135R 32.7680KF-AG5	85 °C	-40 C	0.035 in	0.9 mm	Fundamental	7 pF	1.5	2-SMD	3.2	0.032768 MHz	1.5 mm	3.2 mm	0.126 in	0.059 "	50 kOhms	2-SMD No Lead	Surface Mount	10 ppm	kHz Crystal (Tuning Fork)
EPSON FC-135R 32.7680KF-A5	85 °C	-40 C	0.035 in	0.9 mm	Fundamental	12.5 pF	1.5	2-SMD	3.2	0.032768 MHz	1.5 mm	3.2 mm	0.126 in	0.059 "	50 kOhms	2-SMD No Lead	Surface Mount	10 ppm	kHz Crystal (Tuning Fork)
EPSON FC-135R 32.7680KF-AC0	85 °C	-40 C	0.035 in	0.9 mm	Fundamental	9 pF	1.5	2-SMD	3.2	0.032768 MHz	1.5 mm	3.2 mm	0.126 in	0.059 "	50 kOhms	2-SMD No Lead	Surface Mount	10 ppm	kHz Crystal (Tuning Fork)
EPSON FC-135R 32.7680KF-AG0	85 °C	-40 C	0.035 in	0.9 mm	Fundamental	7 pF	1.5	2-SMD	3.2	0.032768 MHz	1.5 mm	3.2 mm	0.126 in	0.059 "	50 kOhms	2-SMD No Lead	Surface Mount	10 ppm	kHz Crystal (Tuning Fork)
EPSON FC-135R 32.7680KF-AG3	85 °C	-40 C	0.035 in	0.9 mm	Fundamental	7 pF	1.5	2-SMD	3.2	0.032768 MHz	1.5 mm	3.2 mm	0.126 in	0.059 "	50 kOhms	2-SMD No Lead	Surface Mount	10 ppm	kHz Crystal (Tuning Fork)
EPSON FC-135R 32.7680KF-AG	85 °C	-40 C	0.035 in	0.9 mm	Fundamental	7 pF	1.5	2-SMD	3.2	0.032768 MHz	1.5 mm	3.2 mm	0.126 in	0.059 "	50 kOhms	2-SMD No Lead	Surface Mount	10 ppm	kHz Crystal (Tuning Fork)
EPSON FC-135R 32.7680KA-AC5	85 °C	-40 C	0.035 in	0.9 mm	Fundamental	9 pF	1.5	2-SMD	3.2	0.032768 MHz	1.5 mm	3.2 mm	0.126 in	0.059 "	50 kOhms	2-SMD No Lead	Surface Mount	20 ppm	kHz Crystal (Tuning Fork)
