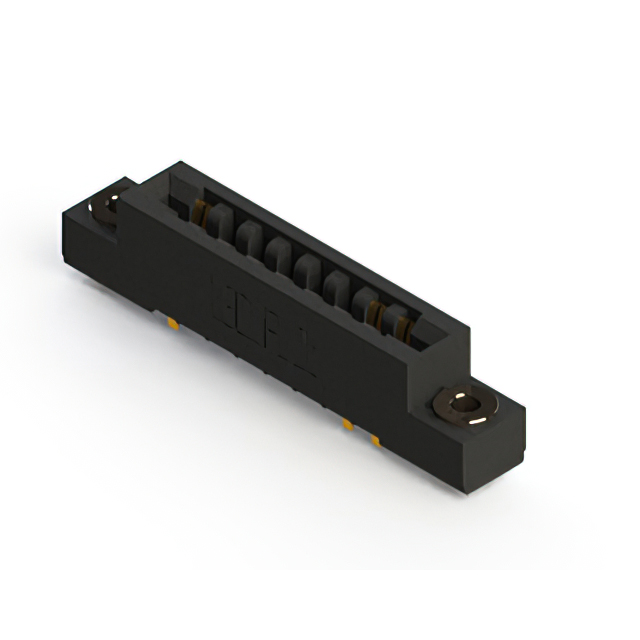

857-008 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FML 8POS 0.156 TIN
| Part | Material - Insulation | Termination Rows | Contact Finish | Number of Positions/Bay/Row | Mounting Type | Card Thickness [Max] | Card Thickness [Min] | Read Out | Pitch | Pitch | Contact Type | Number of Rows | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Gender | Color | Card Type | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Tin | 8 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 3.96 mm | 0.156 in | Semi Bellows | 1 | Copper Alloy | 125 °C | -40 C | Solder | Female | Black | Non Specified - Single Edge | 8 | ||||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Gold | 8 | Right Angle Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 3.96 mm | 0.156 in | Semi Bellows | 1 | Copper Alloy | 125 °C | -40 C | Solder | Female | Black | Non Specified - Single Edge | 8 | 0.25 Ám | 10 Áin | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Tin | 8 | Right Angle Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 3.96 mm | 0.156 in | Semi Bellows | Copper Alloy | 125 °C | -40 C | Solder | Female | Black | Non Specified - Dual Edge | 16 | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 2 | |||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Gold | 8 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 3.96 mm | 0.156 in | Semi Bellows | 1 | Copper Alloy | 125 °C | -40 C | Solder | Female | Black | Non Specified - Single Edge | 8 | 0.25 Ám | 10 Áin | Flush Mount M3 Threaded Insert Top Opening | |||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Tin | 8 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 3.96 mm | 0.156 in | Semi Bellows | Copper Alloy | 125 °C | -40 C | Solder | Female | Black | Non Specified - Dual Edge | 16 | 4-40 Flush Mount Threaded Insert Top Opening | 2 | |||||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Gold | 8 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 3.96 mm | 0.156 in | Semi Bellows | 1 | Copper Alloy | 125 °C | -40 C | Wire Wrap | Female | Black | Non Specified - Single Edge | 8 | 0.25 Ám | 10 Áin | 0.156 " | Flush Mount Top Opening Unthreaded | 3.96 mm | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Gold | 8 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 3.96 mm | 0.156 in | Semi Bellows | 1 | Copper Alloy | 125 °C | -40 C | Wire Wrap | Female | Black | Non Specified - Single Edge | 8 | 0.25 Ám | 10 Áin | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Gold | 8 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 3.96 mm | 0.156 in | Semi Bellows | Copper Alloy | 125 °C | -40 C | Wire Wrap | Female | Black | Non Specified - Dual Edge | 16 | 0.25 Ám | 10 Áin | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 2 | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Tin | 8 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Dual | 3.96 mm | 0.156 in | Semi Bellows | Copper Alloy | 125 °C | -40 C | Solder Eyelet(s) | Female | Black | Non Specified - Dual Edge | 16 | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 2 | |||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Gold | 8 | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Single | 3.96 mm | 0.156 in | Semi Bellows | 1 | Copper Alloy | 125 °C | -40 C | Solder | Female | Black | Non Specified - Single Edge | 8 | 0.25 Ám | 10 Áin | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm |
