R12315 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
QMA / RIGHT ANGLE PLUG SOLDER TY
| Part | Body Finish | Body Material | Voltage Rating | Center Contact Plating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Material | Housing Color | Mounting Type | Connector Type | Impedance | Frequency - Max [Max] | Fastening Type | Shield Termination | Number of Ports | Contact Termination | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

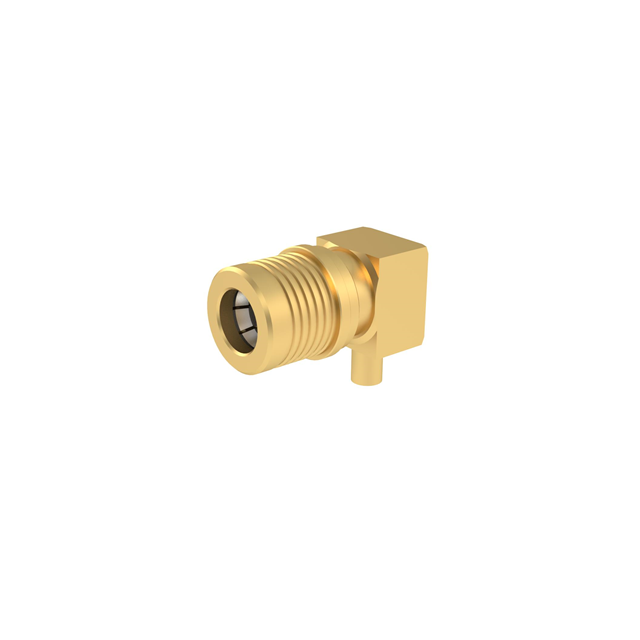

 Radiall USA, Inc. | Gold | Brass | 250 V | Gold | Polytetrafluoroethylene (PTFE) | -40 C | 105 ░C | Brass | Gold | Free Hanging (In-Line) Right Angle | Plug Male Pin | 50 Ohms | 6000 MHz | Snap-On | Solder | 1 | Solder | RG-405 (.085" Semi Rigid) |

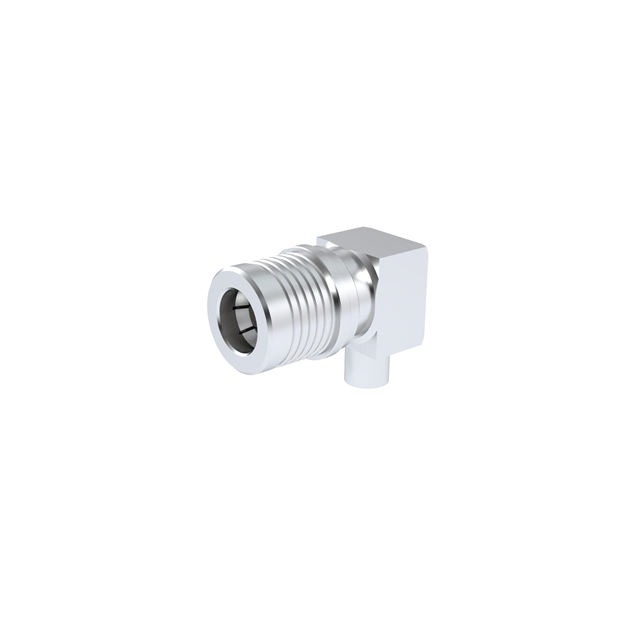

 Radiall USA, Inc. | White Bronze | Brass | 250 V | Gold | Polytetrafluoroethylene (PTFE) | -40 C | 105 ░C | Brass | Silver | Free Hanging (In-Line) Right Angle | Plug Male Pin | 50 Ohms | 6000 MHz | Snap-On | Solder | 1 | Solder | RG-405 (.085" Semi Rigid) |
 Radiall USA, Inc. | White Bronze | Brass | 250 V | Gold | Polytetrafluoroethylene (PTFE) | -40 C | 105 ░C | Brass | Silver | Free Hanging (In-Line) Right Angle | Plug Male Pin | 50 Ohms | 6000 MHz | Snap-On | Solder | 1 | Solder | RG-405 (.085" Semi Rigid) |
 Radiall USA, Inc. | White Bronze | Brass | 335 V | Gold | Polytetrafluoroethylene (PTFE) | -40 C | 105 ░C | Brass | Silver | Free Hanging (In-Line) Right Angle | Plug Male Pin | 50 Ohms | 6000 MHz | Snap-On | Solder | 1 | Solder | |
Radiall USA, Inc. | White Bronze | Brass | 335 V | Gold | Polytetrafluoroethylene (PTFE) | -40 C | 105 ░C | Brass | Silver | Free Hanging (In-Line) Right Angle | Plug Male Pin | 50 Ohms | 6000 MHz | Snap-On | Solder | 1 | Solder |
