CGA25 Series

Catalog

CONN RCPT HSG MALE 8P PNL MT RA

Part	Note	Includes Total Count	Includes	Contact Shape	Operating Temperature (Min)	Operating Temperature (Max)	Insert Material	Connector Type	Features	Mounting Type	Housing Color	Shell Size - Insert	Number of Positions	Fastening Type	Shell Material	Ingress Protection Description	Ingress Protection IP Rating	Orientation	Mounting Feature	Shell Finish	Material Flammability Rating	Shielding	Type

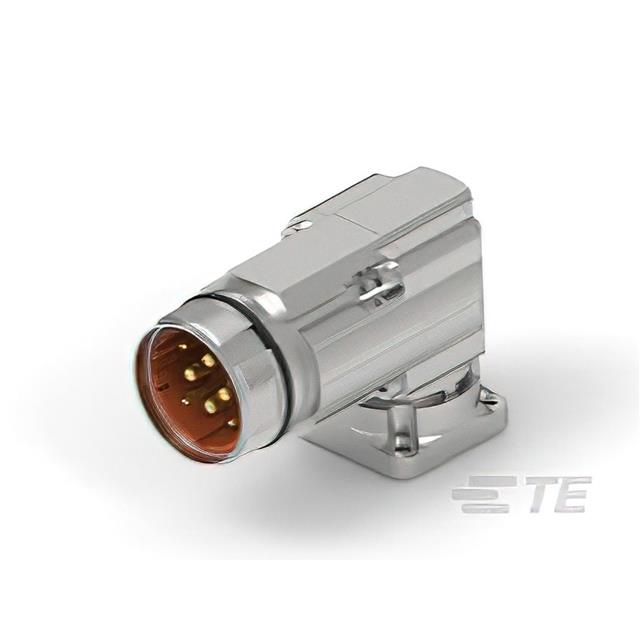

TE Intercontec CGA258N00000056000	Contacts Not Included	3 pcs	Backshell Connector O-Ring	Circular	-20 °C	130 °C	PBT Polybutylene Terephthalate	Receptacle Housing	Backshell Rotatable	Panel Mount Right Angle	Silver	M40-8	8	Push-Twist	Zinc Die Cast	Dust Tight Water Resistant Waterproof	IP66 IP67	Keyed	Flange	Nickel	UL94 V-0	Unshielded	For Male Pins

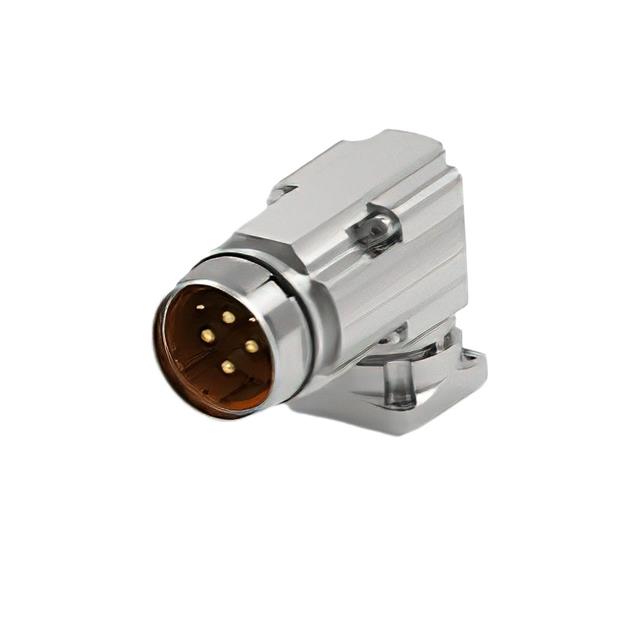

TE Intercontec CGA257N00000056000	Contacts Not Included	3 pcs	Backshell Connector O-Ring	Circular	-20 °C	130 °C	Nylon PA Polyamide	Receptacle Housing	Backshell Rotatable	Panel Mount Right Angle	Silver	M40-6	6	Push-Twist	Zinc Die Cast	Dust Tight Water Resistant Waterproof	IP66 IP67	Keyed	Flange	Nickel	UL94 V-0	Unshielded	For Male Pins
