KX224 Series

Catalog

ACCEL 8-32G I2C/SPI 16LGA

Part	Acceleration Range	Acceleration Range [Max]	Acceleration Range [Min]	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Supplier Device Package	Type	Output Type	Bandwidth	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensitivity (LSB/g)	Axis [z]	Axis [y]	Axis [x]	Contents	Sensor Type	Interface	Supplied Contents	Sensing Range	Sensing Range [Max]	Sensing Range [Min]	Utilized IC / Part

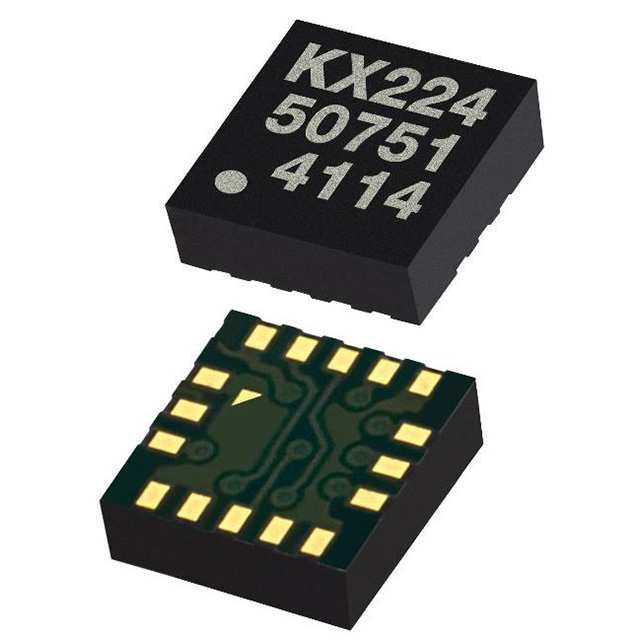

Rohm Semiconductor KX224-1053-SR	16 g 32 g	8 g	-8 g	16-LGA	Surface Mount	85 °C	-40 °C	Selectable Scale	16-LGA (3x3)	Digital	I2C SPI	800 Hz	3.6 V	1.71 V	1024 LSB/g 4096 LSB/g	Z	Y	X
Rohm Semiconductor KX224-1053	16 g 32 g	8 g	-8 g	16-LGA	Surface Mount	85 °C	-40 °C	Selectable Scale	16-LGA (3x3)	Digital	I2C SPI	800 Hz	3.6 V	1.71 V	1024 LSB/g 4096 LSB/g	Z	Y	X

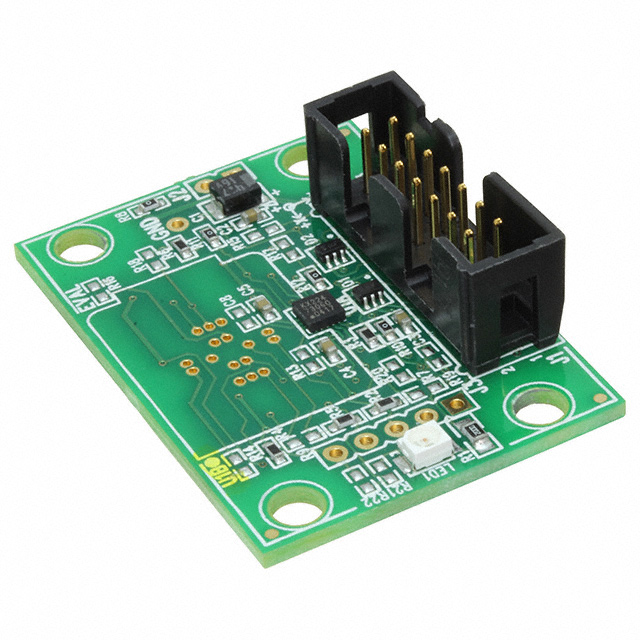

Rohm Semiconductor KX224-1053-EVB0B0													3.6 V	1.71 V					Board(s)	Accelerometer 3 Axis	I2C Serial SPI	Board(s)	16 g 32 g	8 g	-8 g	KX224-1053
