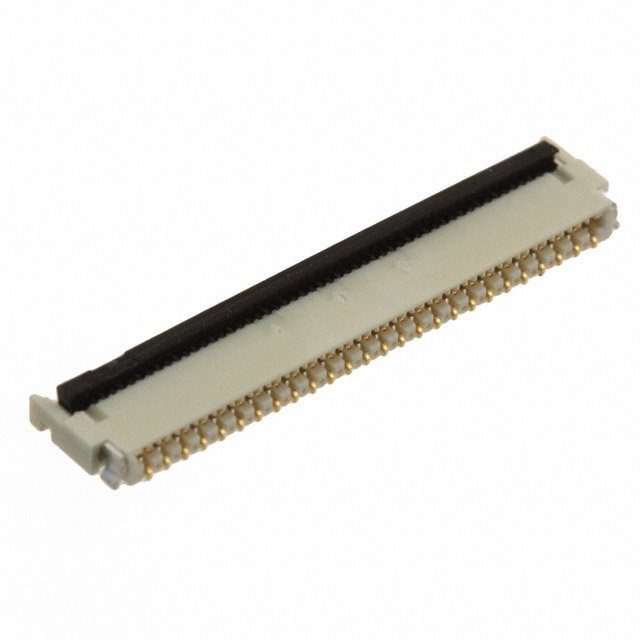

502598 Series

Manufacturer: Molex

Catalog

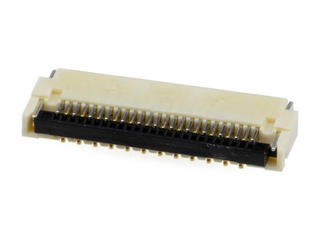

0.30MM PITCH EASY-ON BACK FLIP FPC CONNECTOR, RIGHT-ANGLE, SURFACE MOUNT, DUAL CONTACT STYLE, 1.15MM MATED HEIGHT, 17 CIRCUITS

Part	Locking Feature	Mounting Type	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Material	Termination	Contact Finish	Height Above Board	Height Above Board	Current Rating (Amps)	Voltage Rating	Cable End Type	Housing Color	Actuator Color	FFC, FCB Thickness	Flat Flex Type	Material Flammability Rating	Features	Mating Cycles	Connector/Contact Type	Contact Material	Pitch [x]	Pitch [x]	Number of Positions

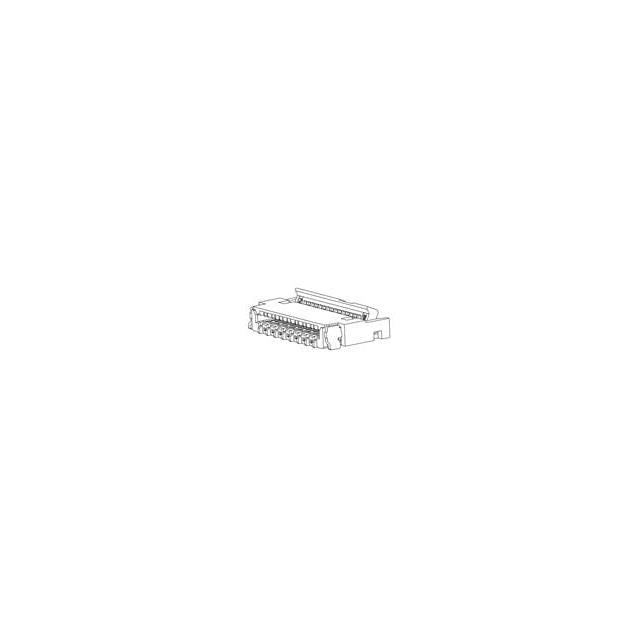

Molex 5025981793	Backlock Flip Lock	Surface Mount Right Angle	Liquid Crystal Polymer (LCP) Glass Filled	-40 °C	105 ░C	Glass Filled Nylon Polyamide (PA)	Solder	Gold	1.14 mm	0.045 in	0.2 A	50 V	Tapered	White	Black	0.2 mm	FPC	UL94 V-0	Solder Retention	10	Contacts Top and Bottom	Phosphor Bronze	0.012 in	0.3 mm

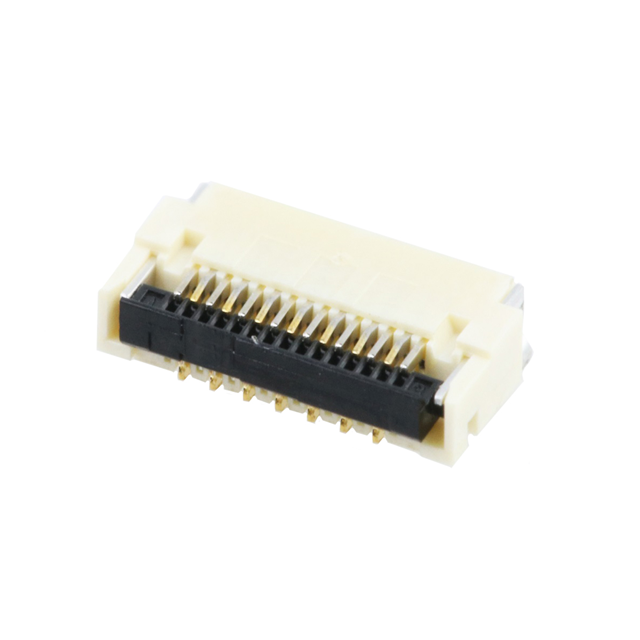

Molex 5025981593	Backlock Flip Lock	Surface Mount Right Angle	Liquid Crystal Polymer (LCP) Glass Filled	-40 °C	105 ░C	Glass Filled Nylon Polyamide (PA)	Solder	Gold	1.14 mm	0.045 in	0.2 A	50 V	Tapered	White	Black	0.2 mm	FPC	UL94 HB UL94 V-0	Solder Retention	10	Contacts Top and Bottom	Phosphor Bronze	0.012 in	0.3 mm	15

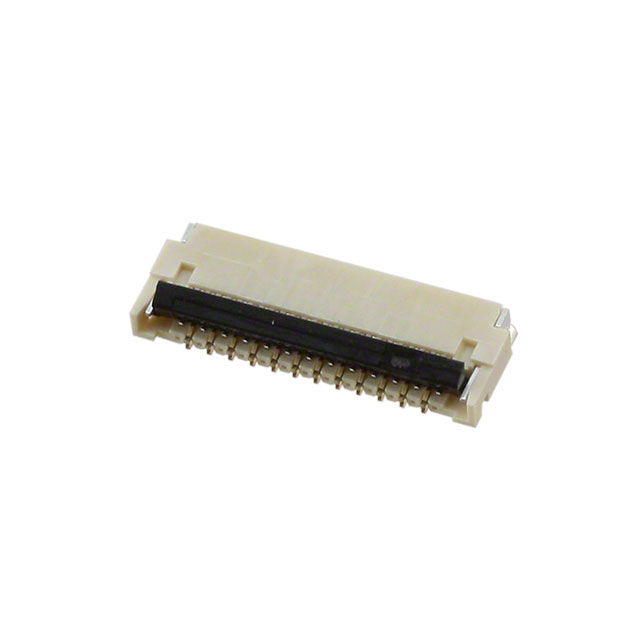

Molex 5025982591	Backlock Flip Lock	Surface Mount Right Angle	Liquid Crystal Polymer (LCP) Glass Filled	-40 °C	85 °C	Glass Filled Nylon Polyamide (PA)	Solder	Gold	1.14 mm	0.045 in	0.2 A	50 V	Tapered	White	Black	0.2 mm	FPC	UL94 HB UL94 V-0	Solder Retention	10	Contacts Top and Bottom	Copper Alloy	0.012 in	0.3 mm

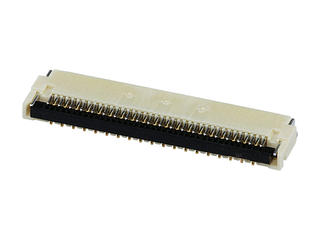

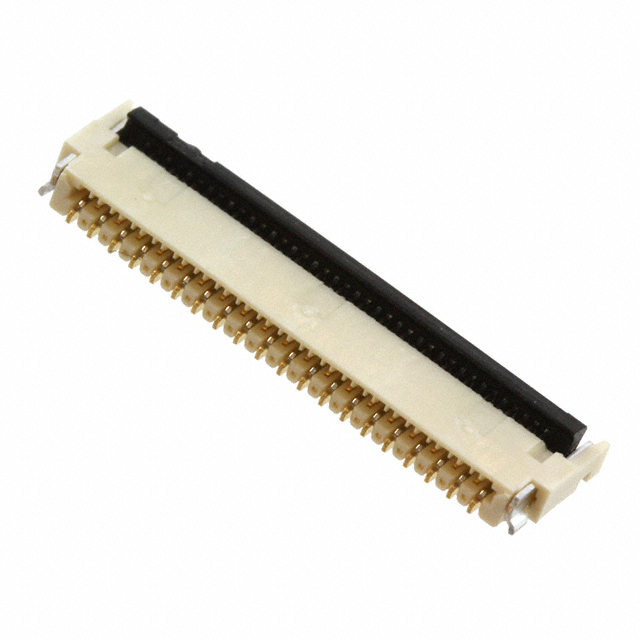

Molex 5025983993	Backlock Flip Lock	Surface Mount Right Angle	Liquid Crystal Polymer (LCP) Glass Filled	-40 °C	105 ░C	Glass Filled Nylon Polyamide (PA)	Solder	Gold	1.14 mm	0.045 in	0.2 A	50 V	Tapered	White	Black	0.2 mm	FPC	UL94 HB UL94 V-0	Solder Retention	10	Contacts Top and Bottom	Phosphor Bronze	0.012 in	0.3 mm	39

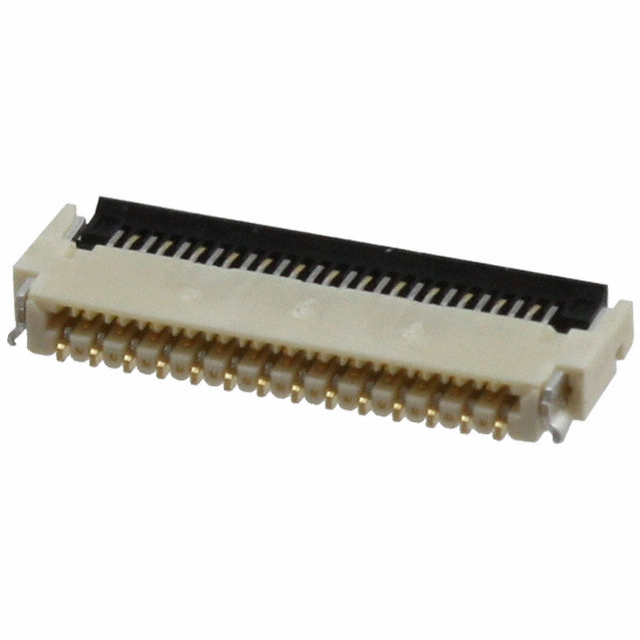

Molex 5025982791	Backlock Flip Lock	Surface Mount Right Angle	Liquid Crystal Polymer (LCP) Glass Filled	-40 °C	85 °C	Glass Filled Nylon Polyamide (PA)	Solder	Gold	1.14 mm	0.045 in	0.2 A	50 V	Tapered	White	Black	0.2 mm	FPC	UL94 HB UL94 V-0	Solder Retention	10	Contacts Top and Bottom	Copper Alloy	0.012 in	0.3 mm	27

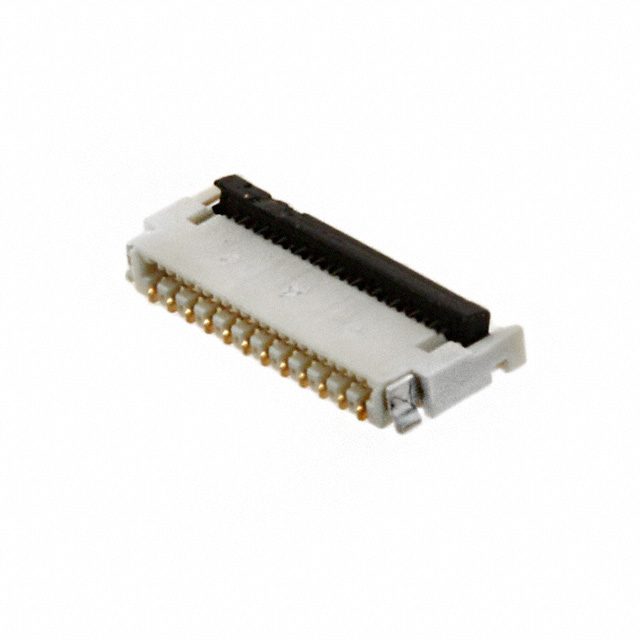

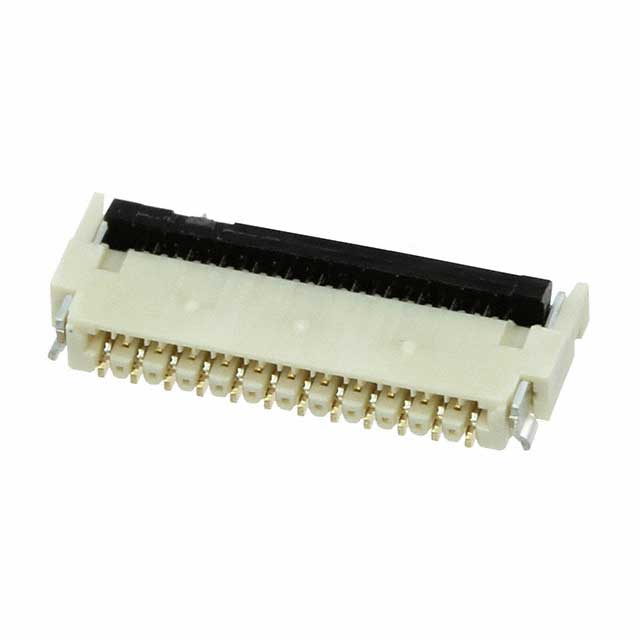

Molex 5025982393	Backlock Flip Lock	Surface Mount Right Angle	Liquid Crystal Polymer (LCP) Glass Filled	-40 °C	105 ░C	Glass Filled Nylon Polyamide (PA)	Solder	Gold	1.14 mm	0.045 in	0.2 A	50 V	Tapered	White	Black	0.2 mm	FPC	UL94 HB UL94 V-0	Solder Retention	10	Contacts Top and Bottom	Phosphor Bronze	0.012 in	0.3 mm	23

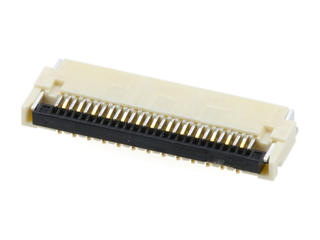

Molex 5025982793	Backlock Flip Lock	Surface Mount Right Angle	Liquid Crystal Polymer (LCP) Glass Filled	-40 °C	105 ░C	Glass Filled Nylon Polyamide (PA)	Solder	Gold	1.14 mm	0.045 in	0.2 A	50 V	Tapered	White	Black	0.2 mm	FPC	UL94 HB UL94 V-0	Solder Retention	10	Contacts Top and Bottom	Phosphor Bronze	0.012 in	0.3 mm	27

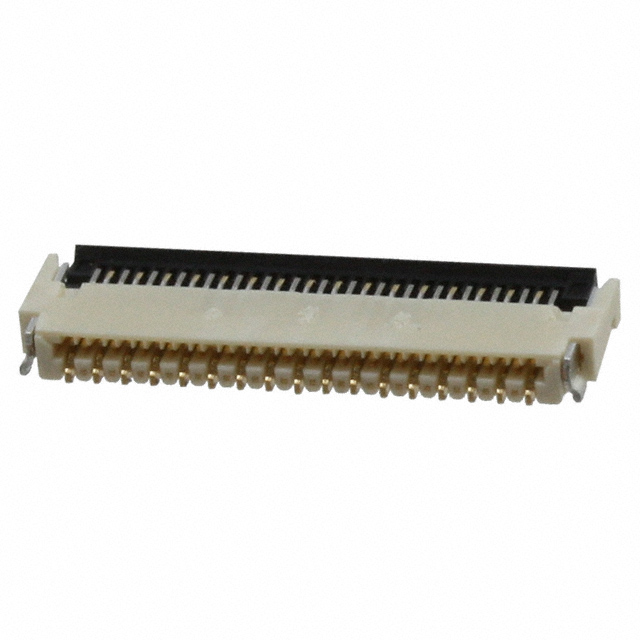

Molex 5025983393	Backlock Flip Lock	Surface Mount Right Angle	Liquid Crystal Polymer (LCP) Glass Filled	-40 °C	105 ░C	Glass Filled Nylon Polyamide (PA)	Solder	Gold	1.14 mm	0.045 in	0.2 A	50 V	Tapered	White	Black	0.2 mm	FPC	UL94 HB UL94 V-0	Solder Retention	10	Contacts Top and Bottom	Phosphor Bronze	0.012 in	0.3 mm	33

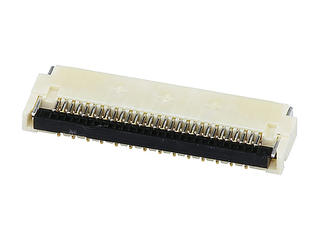

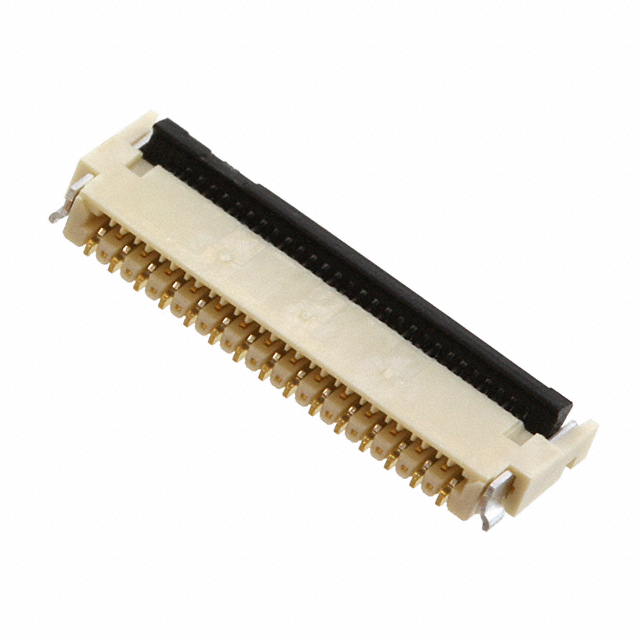

Molex 5025982991	Backlock Flip Lock	Surface Mount Right Angle	Liquid Crystal Polymer (LCP) Glass Filled	-40 °C	85 °C	Glass Filled Nylon Polyamide (PA)	Solder	Gold	1.14 mm	0.045 in	0.2 A	50 V	Tapered	White	Black	0.2 mm	FPC	UL94 HB UL94 V-0	Solder Retention	10	Contacts Top and Bottom	Copper Alloy	0.012 in	0.3 mm	29
Molex 5025983991	Backlock Flip Lock	Surface Mount Right Angle	Liquid Crystal Polymer (LCP) Glass Filled	-40 °C	85 °C	Glass Filled Nylon Polyamide (PA)	Solder	Gold	1.14 mm	0.045 in	0.2 A	50 V	Tapered	White	Black	0.2 mm	FPC	UL94 HB UL94 V-0	Solder Retention	10	Contacts Top and Bottom	Copper Alloy	0.012 in	0.3 mm	39
