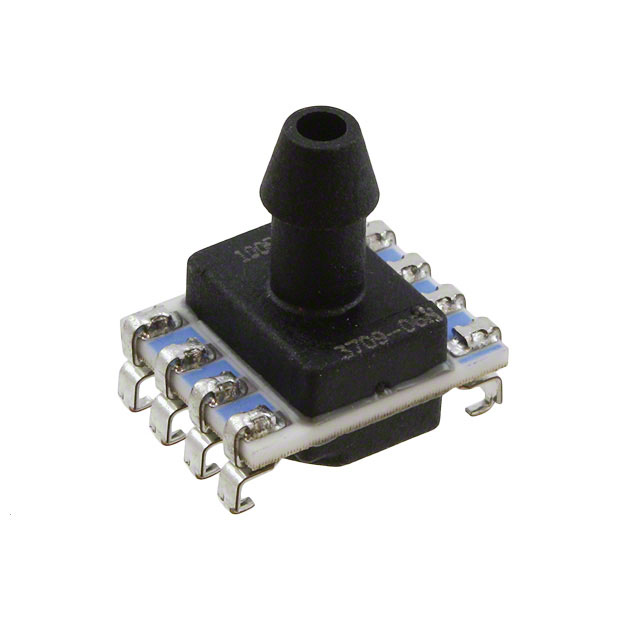

HSCMAND Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SENSOR 100PSIG 0.19" 12BIT 8SMD

Part	Output	Package / Case	Port Size	Port Size	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type	Port Style	Supplier Device Package	Pressure Type	Features	Applications	Operating Pressure	Operating Pressure	Accuracy	Mounting Type	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Pressure [custom]	Operating Pressure [custom]	Output [Min]	Output [Max]	Maximum Pressure	Maximum Pressure
Honeywell Sensing and Productivity Solutions HSCMAND100PGSA3	12 b	8-SMD J-Lead Top Port	4.93 mm	0.19 "	85 °C	-20 C	J Lead	3.6 V	3 V	SPI	Barbed	8-SMD	Vented Gauge	Amplified Output Temperature Compensated	Board Mount	689.48 kPa	100 PSI	0.25 %	Surface Mount	250 PSI	1723.69 kPa
Honeywell Sensing and Productivity Solutions HSCMAND030PGSA3	12 b	8-SMD J-Lead Top Port	4.93 mm	0.19 "	85 °C	-20 C	J Lead	3.6 V	3 V	SPI	Barbed	8-SMD	Vented Gauge	Amplified Output Temperature Compensated	Board Mount	206.84 kPa	30 PSI	0.25 %	Surface Mount	60 PSI	413.69 kPa
Honeywell Sensing and Productivity Solutions HSCMAND015PGAA5		8-SMD J-Lead Top Port	4.93 mm	0.19 "	85 °C	-20 C	J Lead	5.25 V	4.75 V	Analog Voltage	Barbed	8-SMD	Vented Gauge	Amplified Output Temperature Compensated	Board Mount			0.25 %	Surface Mount	30 PSI	206.84 kPa	15 PSI	103.42 kPa	0.5 V	4.5 V
Honeywell Sensing and Productivity Solutions HSCMAND1.6BGSA3	12 b	8-SMD J-Lead Top Port	4.93 mm	0.19 "	85 °C	-20 C	J Lead	3.6 V	3 V	SPI	Barbed	8-SMD	Vented Gauge	Amplified Output Temperature Compensated	Board Mount	160 kPa	23.21 PSI	0.25 %	Surface Mount							400 kPa	58.02 PSI
Honeywell Sensing and Productivity Solutions HSCMAND100MDAB5		8-SMD J-Lead Top Port	4.93 mm	0.19 "	85 °C	-20 C	J Lead	5.25 V	4.75 V	Analog Voltage	Barbed	8-SMD	Differential	Amplified Output Temperature Compensated	Board Mount	10 kPa	1.45 PSI	0.25 %	Surface Mount					0.25 V	4.75 V	140 kPa	20.31 PSI
Honeywell Sensing and Productivity Solutions HSCMAND015PA2A3	12 b	8-SMD J-Lead Top Port	4.93 mm	0.19 "	85 °C	-20 C	J Lead	3.6 V	3 V	I2C	Barbed	8-SMD		Amplified Output Temperature Compensated	Board Mount			0.25 %	Surface Mount	30 PSI	206.84 kPa	15 PSI	103.42 kPa
