Kmr70 Series Series

Tactile Switches Microminiature SMT Top Actuated IP67 Microminiature SMT Top Actuated IP67

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Tactile Switches Microminiature SMT Top Actuated IP67 Microminiature SMT Top Actuated IP67

Part	Outline [y]	Outline [x]	Operating Force	Circuit	Mounting Type	Mechanical Life	Actuator Orientation	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Actuator Type	Illumination	Ingress Protection	Contact Rating @ Voltage	Actuator Height off PCB, Vertical [z]
Littelfuse/Commercial Vehicle Products KMR742NG LFS	2.8 mm	4.2 mm	400 gf	SPST-NO	Surface Mount	200000 Cycles	Top Actuated	Gull Wing	85 °C	-40 °C	Off-Mom	Standard	Non-Illuminated	IP67 - Dust Tight Waterproof	0.05 A	2.5 mm

Catalog

Tactile Switches Microminiature SMT Top Actuated IP67 Microminiature SMT Top Actuated IP67

Key Features

• IP67

• Excellent tactile feel

• Long Life version

Description

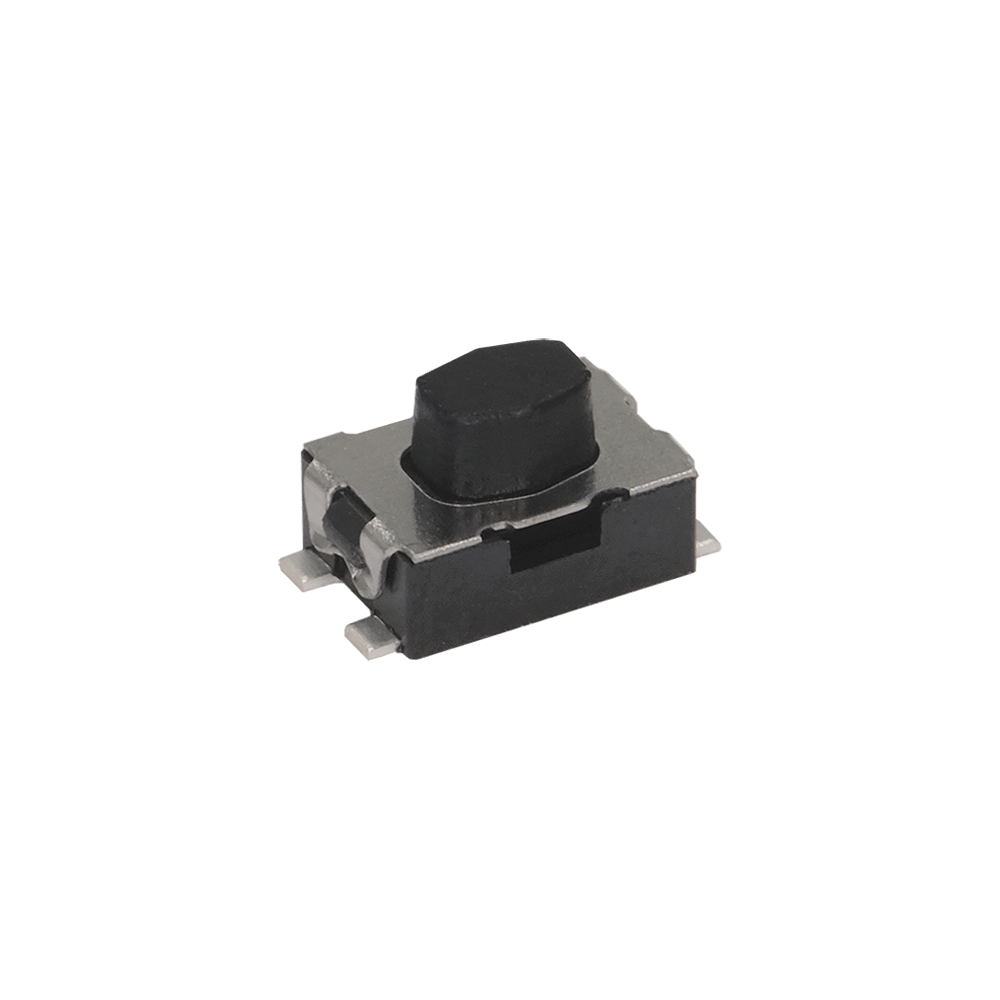

C&K’s long-lasting KMR7 series microminiature SMT top actuated switch is ideal for industrial, medical and automotive applications which have to be sturdy enough to survive both regular use and continued exposure to the elements. The KMR7 has an excellent tactile feel and is an IP67 rated switch with ultra-low current capabilities.
