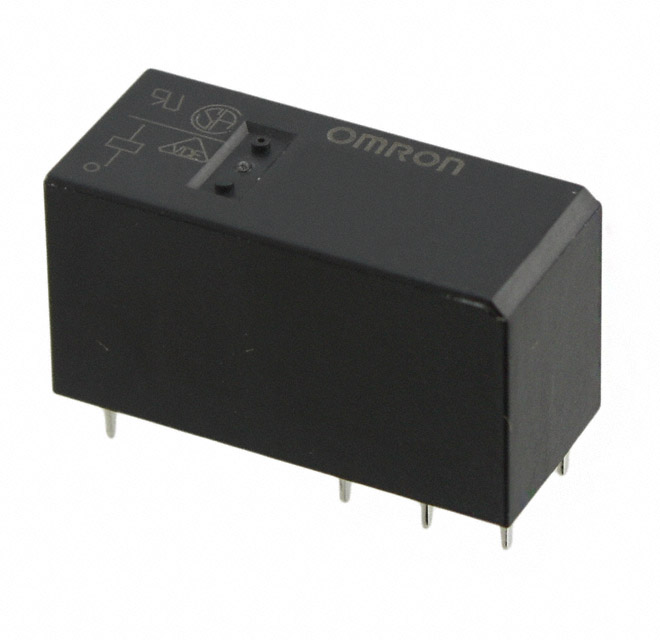

G2RL-1-C Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPDT 12A 48V
| Part | Relay Type | Contact Rating (Current) | Switching Voltage | Coil Insulation | Release Time | Seal Rating | Coil Type | Contact Material | Mounting Type | Load - Max Switching | Coil Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Coil Resistance | Termination Style | Must Release Voltage | Must Operate Voltage | Operate Time | Coil Current | Contact Form | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | General Purpose | 12 A | 300 VDC 440 VAC | Class F | 5 ms | Sealed - Flux Protection | Non Latching | Cadmium Free Silver Alloy | Through Hole | 3600 W 5280 VA | 48 VDC | 85 °C | -40 °C | 5.36 kOhms | PC Pin | 4.8 VDC | 33.6 VDC | 15 ms | 9 mA | SPDT (1 Form C) | CQC CSA UR VDE |
