415-035 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DL FMALE 35P 0.200 2PC

Part	Termination Rows [custom]	Material - Insulation	Gender	Features	Card Type	Card Thickness	Card Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature [diameter]	Flange Feature [diameter]	Number of Rows [custom]	Number of Positions	Mounting Type	Contact Finish	Pitch	Pitch	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Termination	Color	Material Flammability Rating	Note
EDAC Inc. 415-035-542-212	2	Diallyl Phthalate (DAP)	Female	Card Guides	Non Specified - Dual Edge	1.57 mm	0.062 in	-65 ░C	125 °C	3.25 mm	0.128 "	2	35	Panel Mount Through Hole	Gold	5.08 mm	0.2 in	Copper Alloy	0.25 Ám	10 Áin	Wire Wrap	Green

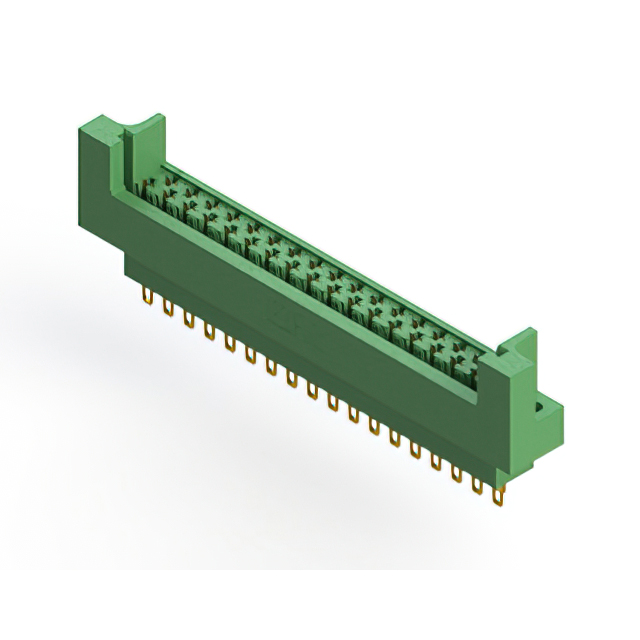

EDAC Inc. 415-035-500-212	2	Diallyl Phthalate (DAP)	Female	Card Guides	Non Specified - Dual Edge	1.57 mm	0.062 in	-65 ░C	125 °C	3.25 mm	0.128 "	2	35	Panel Mount Through Hole	Gold	5.08 mm	0.2 in	Copper Alloy	0.25 Ám	10 Áin	Solder Eyelet(s)	Green
EDAC Inc. 415-035-000-212		Diallyl Phthalate (DAP)		Card Guides	Non Specified - Dual Edge	1.57 mm	0.062 in	-65 ░C	125 °C	3.25 mm	0.128 "		35			5.08 mm	0.2 in					Green	UL94 V-0	Contacts Not Included

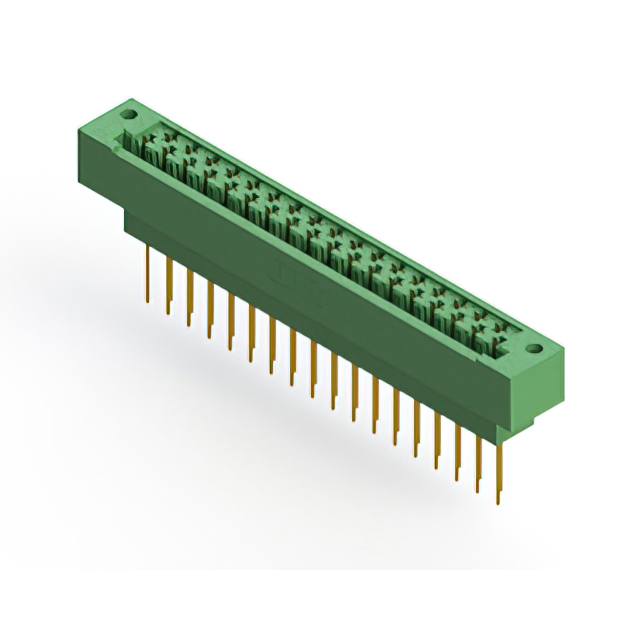

EDAC Inc. 415-035-541-122	2	Diallyl Phthalate (DAP)	Female		Non Specified - Dual Edge	2.36 mm	0.093 "	-65 ░C	125 °C	3.25 mm	0.128 "	2	35	Panel Mount Through Hole	Gold	5.08 mm	0.2 in	Copper Alloy	0.25 Ám	10 Áin	Wire Wrap	Green

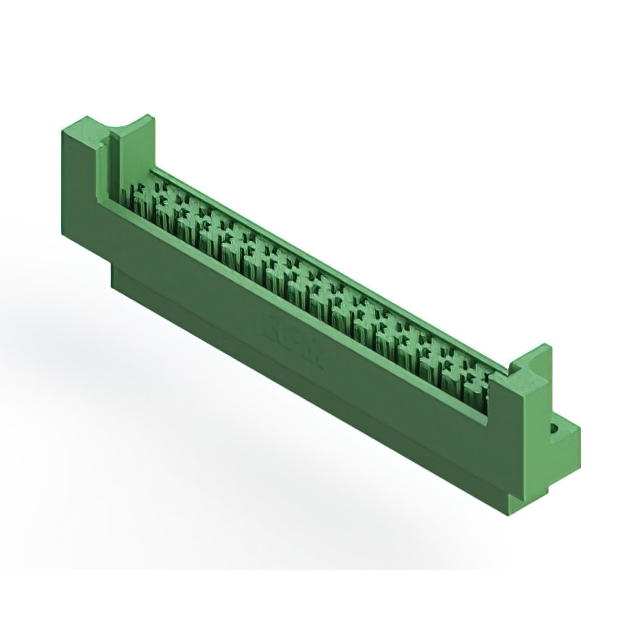

EDAC Inc. 415-035-000-222		Diallyl Phthalate (DAP)		Card Guides	Non Specified - Dual Edge	2.36 mm	0.093 "	-65 ░C	125 °C	3.25 mm	0.128 "		35			5.08 mm	0.2 in					Green	UL94 V-0	Contacts Not Included
EDAC Inc. 415-035-540-222	2	Diallyl Phthalate (DAP)	Female	Card Guides	Non Specified - Dual Edge	2.36 mm	0.093 "	-65 ░C	125 °C	3.25 mm	0.128 "	2	35	Panel Mount Through Hole	Gold	5.08 mm	0.2 in	Copper Alloy	0.25 Ám	10 Áin	Wire Wrap	Green

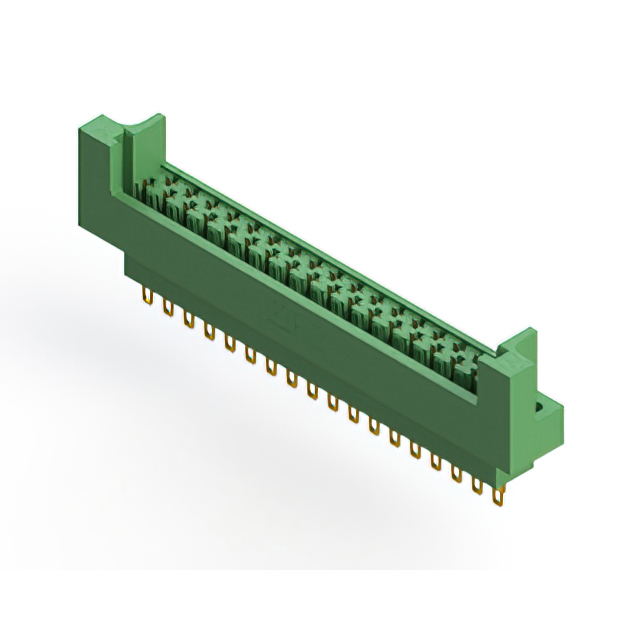

EDAC Inc. 415-035-500-222	2	Diallyl Phthalate (DAP)	Female	Card Guides	Non Specified - Dual Edge	2.36 mm	0.093 "	-65 ░C	125 °C	3.25 mm	0.128 "	2	35	Panel Mount Through Hole	Gold	5.08 mm	0.2 in	Copper Alloy	0.25 Ám	10 Áin	Solder Eyelet(s)	Green

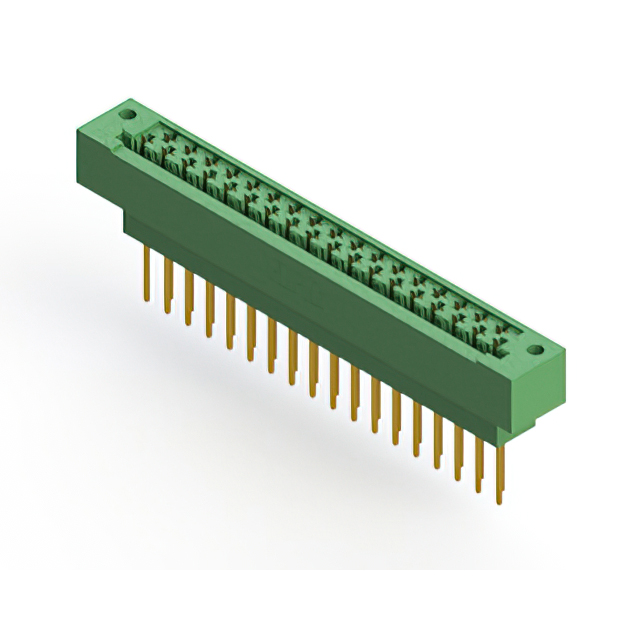

EDAC Inc. 415-035-540-112	2	Diallyl Phthalate (DAP)	Female		Non Specified - Dual Edge	1.57 mm	0.062 in	-65 ░C	125 °C	3.25 mm	0.128 "	2	35	Panel Mount Through Hole	Gold	5.08 mm	0.2 in	Copper Alloy	0.25 Ám	10 Áin	Wire Wrap	Green

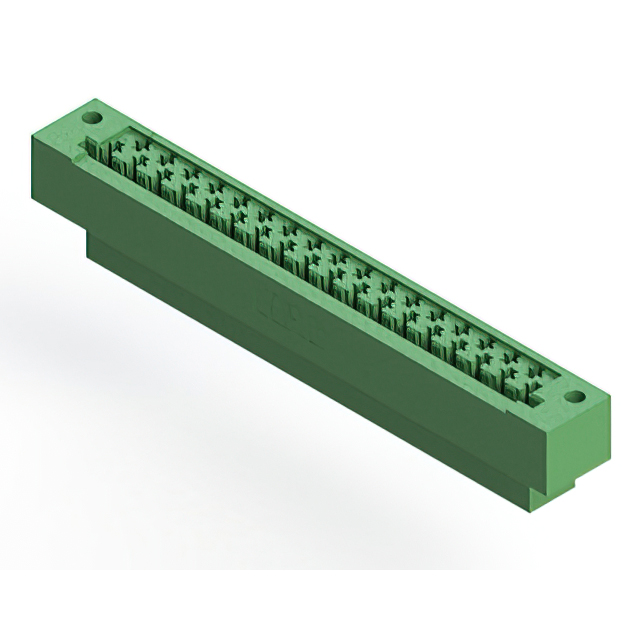

EDAC Inc. 415-035-000-112		Diallyl Phthalate (DAP)			Non Specified - Dual Edge	1.57 mm	0.062 in	-65 ░C	125 °C	3.25 mm	0.128 "		35			5.08 mm	0.2 in					Green	UL94 V-0	Contacts Not Included

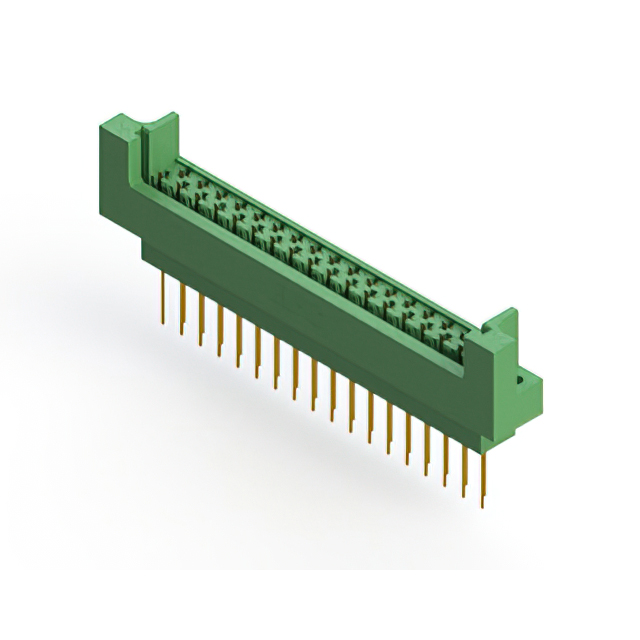

EDAC Inc. 415-035-541-212	2	Diallyl Phthalate (DAP)	Female	Card Guides	Non Specified - Dual Edge	1.57 mm	0.062 in	-65 ░C	125 °C	3.25 mm	0.128 "	2	35	Panel Mount Through Hole	Gold	5.08 mm	0.2 in	Copper Alloy	0.25 Ám	10 Áin	Wire Wrap	Green
